Coconut Charcoal Grinder And Mixing Machine

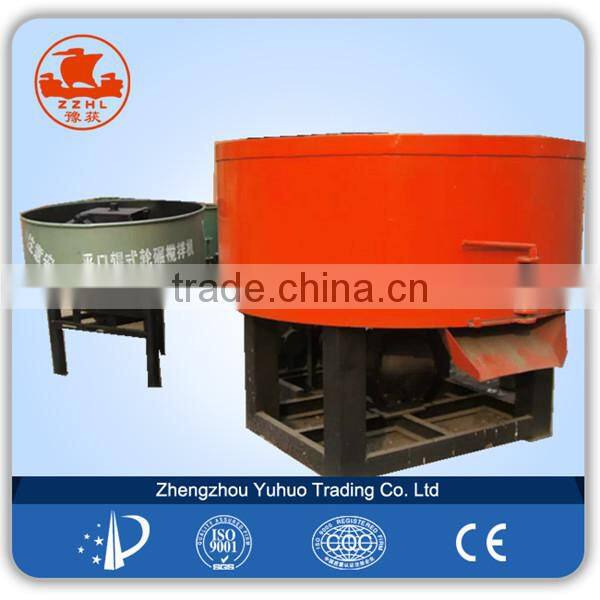

Coconut Charcoal Grinder And Mixing Machine photo-1

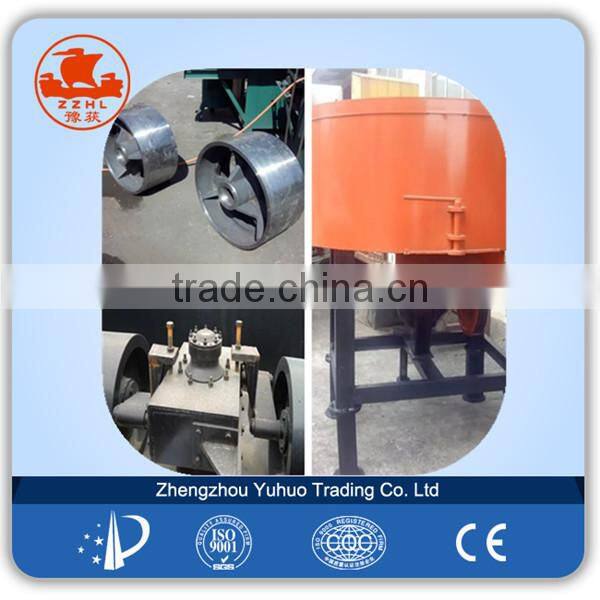

Coconut Charcoal Grinder And Mixing Machine photo-2

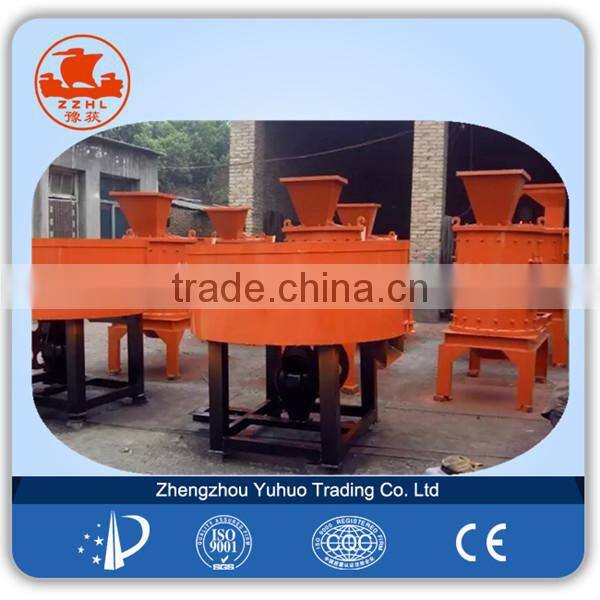

Coconut Charcoal Grinder And Mixing Machine photo-3

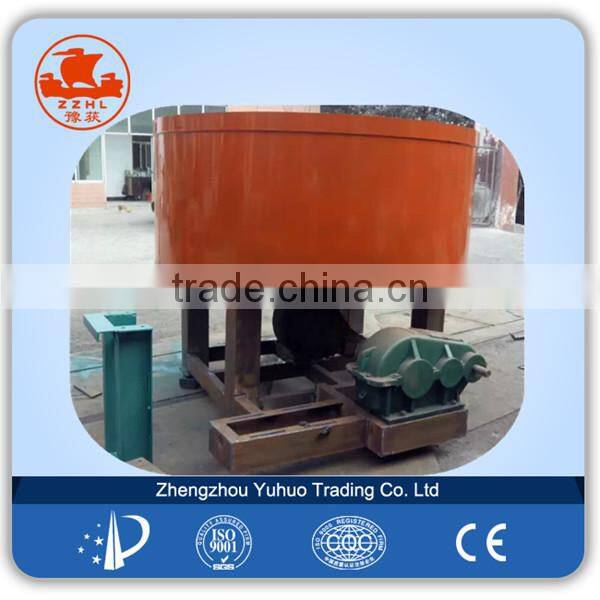

Coconut Charcoal Grinder And Mixing Machine photo-4

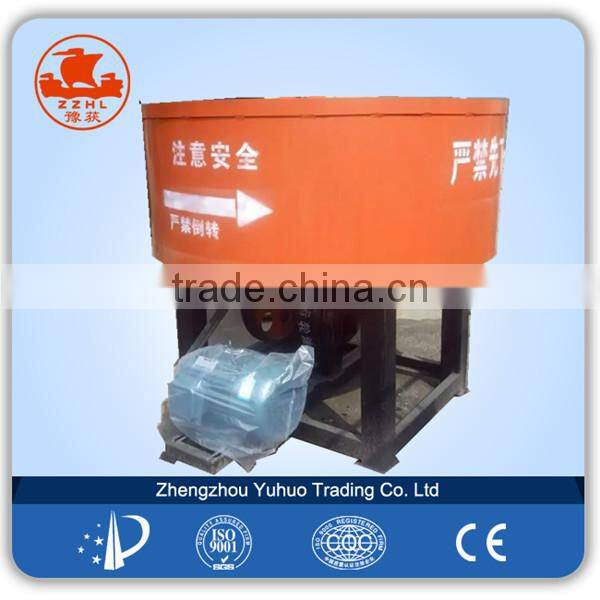

Coconut Charcoal Grinder And Mixing Machine photo-5
Coconut Charcoal Grinder And Mixing Machine photo-6
US$ 5,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
hongle
Model Number:
M120
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name hongle
Model Number M120

<h2>wheel grinding mixer mill with high capacity</h2>



Brief Introduction:

wheel mixer is mainly used for separation of coal, charcoal, gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. With less investment, fast results, small footprint, saving power, sturdiness and durability, ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and medium enterprises dressing.

We use thicken plate on the water tank and improves gear box. Our Manganese steel liner great increases life the machine. The casting parts is joint by small pieces, even without large lifting device, it can finish parts change, this helps to decrease operation cost.

Features:

 1)mix and grind at same time



2)high production efficiency



3)energy-saving



4)easy to install and maintain



5)good sealing property



Main Technical Parameter:



Model

M120

M150

M180

M200

M250

M300

Mixing disk Diameter(mm)

Φ1200mm

Φ1500mm

Φ1800mm

Φ2000mm

Φ2500mm

Φ3000mm

Each feeding in(L)

 300L

500L

800L

1000L

 1300L

 1800L

Mixing cycle(min)

3-5

3-5

3-5

2-5

2-5

2-5

Capacity(t/h)

1.5-3.0t/h

7t/h

9t/h

13t/h

30t/h

40/h

Roller Speed(r/min)

41r/min

37r/min

36.1r/min

35r/min

30r/min

30r/min

Power(Kw)

7.5kw

15kw

22kw

22kw

30kw

37kw

Size(m)

1.2*1.2*1.3

1.5*1.5*1.6

1.8**1.8*1.8

2.0*2.0*1.8

2.5*2.5*1.8

3.0*3.0*1.8

Weight(t)

1.2t

2.0t

3.0t

3.5t

4.0t

4.6t

 Coconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing Machine








Packing and shipping:

Coconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing MachineCoconut Charcoal Grinder And Mixing Machine
