Ring Dies Animal Feed Pellet Press Granule Machine

Ring Dies Animal Feed Pellet Press Granule Machine photo-1

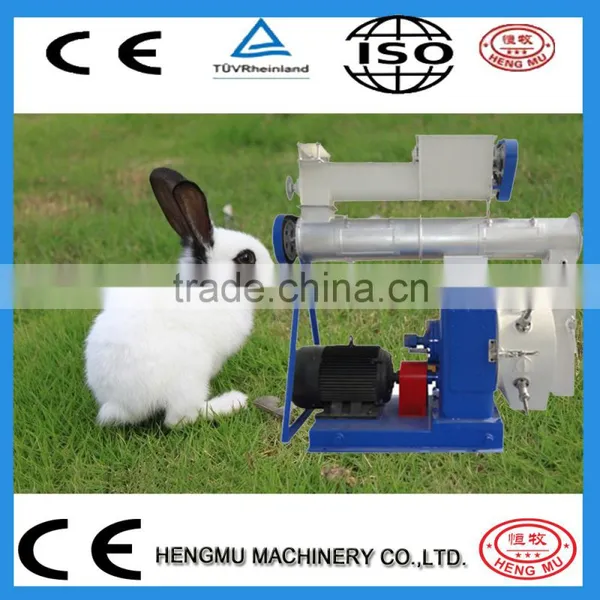

Ring Dies Animal Feed Pellet Press Granule Machine photo-2

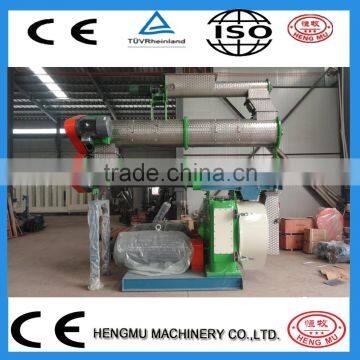

Ring Dies Animal Feed Pellet Press Granule Machine photo-3

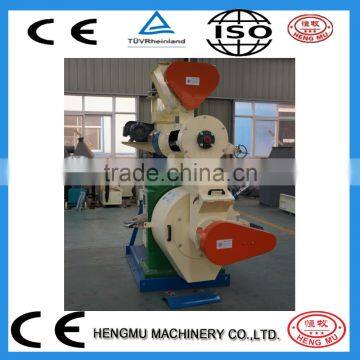

Ring Dies Animal Feed Pellet Press Granule Machine photo-4

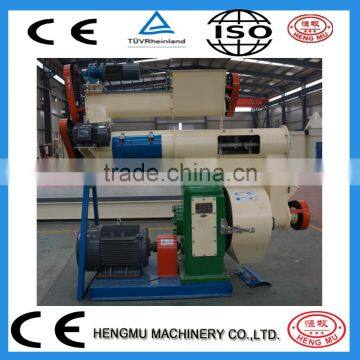

Ring Dies Animal Feed Pellet Press Granule Machine photo-5

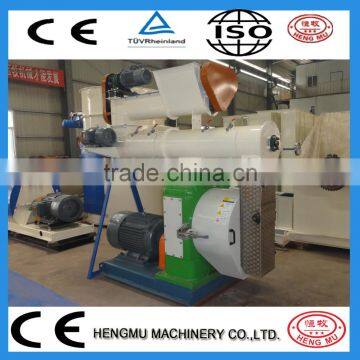

Ring Dies Animal Feed Pellet Press Granule Machine photo-6
US$ 3,500 - 89,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
hengmu
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name hengmu
Model Number SZLH250
Type Feed Pellet Machine
Voltage 380v 50hz 3phase
Power(W) 22kw
Dimension(L*W*H) 2100mm*800mm*1900mm
Weight 750 kg
Certification CE ISO SGS
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application of pellet press granule machine

Pellet press granule machine is widely used in large, medium and small aquaculture, grain feed factory, livestock farm, poultry farm, individual farmers, small and medium sized farms, as well as feed manufacturer plant.


Now, based on the outstanding features of its high throughput, low consumption and mature technology, it becomes more and more popular and have a wide range of domestic and foreign markets.

Main Features of pellet press granule machine


1) The drive part of the machine including motor optimize the high quality bearings ensures high efficient and steady driving with low noice.


2) Full stainless steel strengthening feed conditioner, adopts the frequency-conversion speed regulating control to guarantee quality pellet feed.


3) The alloy steel die is made by international advanced gun drill and vacuum furnace,has long service life and ensure smoothly pelleting and high quality.


4) The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble; Adopt international advaned pipeline system and inlet pressure regulator.


5) Used together with counter flow cooler, rotary sifter and advanced crumbler, the pellet feed can reach the highest quality.


6) Can be custom-made with two or three conditioners to produce high quality poultry,livestock and aquatic feed.

Technical Parameter of pellet press granule machine

Model
SZLH250
SZLH320
SZLH350
SZLH400
SZLH420
SZLH508
Main Motor Power (kw)
22
37
55
90
110
132
Conditioner Power (kw)
2..2
2..2
2.2
2.2
5.5
5.5
Feeder Power (kw)
0.75
1.5
1.5
1.5
1.5
1.5
Capacity
(t/h)
1-2
2-4
2-6
3-8
4-12
4-18
Certifications

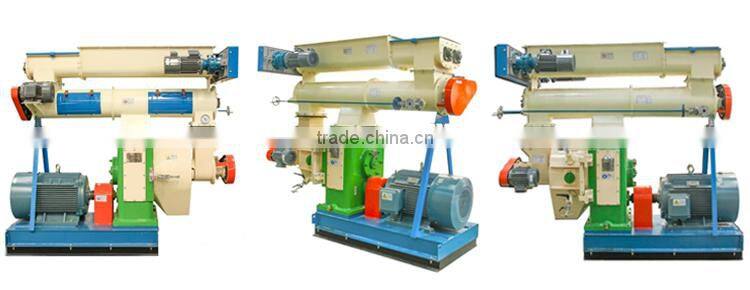

Detailed Images

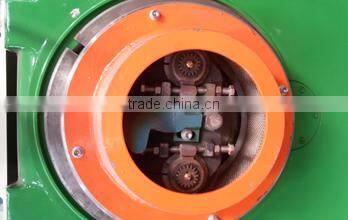

Working principle
1. It consists of feeder, conditioner, ring die and motor.
2. Firstly, the material go through the feeder from which the material can flow into the pellet machine at the best speed to ensure the full load working of the pellet machine.
3. And then the hot dry steam mix with the material and soften, steam the material for easier pelletizing and this design can also extend its life.
4. Finally the softened and steamed material go through the ring die to be maked into pellet, we can adjust the ring die to get different pellet.

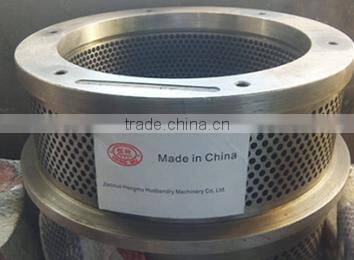

Machine Parts

Name: Ring die

Material: Stainless steel

Original: China


Simple structure in linear type ,easy in installation and maintation.
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

Machine Parts

Name: Bearing


Brand: SKF


Original: Switzerland


Switzerland SKF high quality bearing, ensure high efficiency, stable and low noise drive

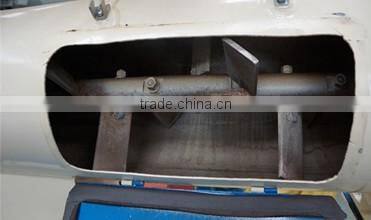

Machine Parts

Name: Conditioner ( Modulator )


Brand: Hengmu


Original: China


Stalinless steel conditioner, and we can customize single, double or three layer conditioners for clients.

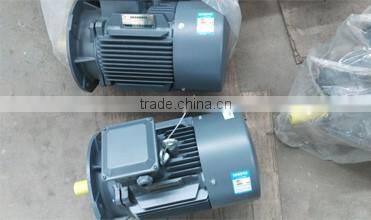

Machine Parts

Name: Motor

Brand:
Yutong or Wannan

Original: China


According to customer's requirement, we can match Siemens motor for you.

Packing & Delivery

Packing details of pellet press granule machine


1. Wooden cases or according to customers' requirement;

2. Tight the equipment in the truck without space to ensure no rubbing during the transportation;

3. Sea transportation or train.

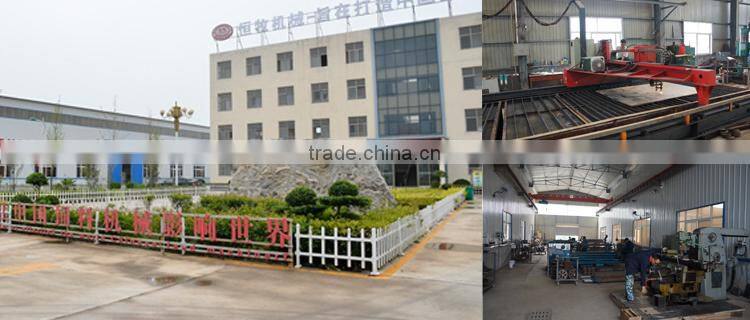

Our Company

Henan Hengmu Machinery Co., Ltd was founded in 1993, there is more than 20 years of development, and we specialized in producing feed machinery, feed mixer, hammer mill, chaff cutter, complete feed pellet line, feed grinder and mixer, wood pellet procution line etc.

The products have been exported to countries such as India, Bangladesh ,Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1. Q: Are you a trading company or a manufacturer?
     A: We are a manufacturer, which has more than 20 years experience in feed machinery.

2. Q: How long is your guarantee?
     A: One year warranty for the machine since sold. If quality problem occurs, please feel free to contact us. But not including artifical damage and operational error.

3. Q: Will you send engineers to install the plant?
     A: Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

4. Q: What's the delivery time?
     A: It will take about 15-30 working days to finish an order, but the exact time is according to actual situation.

Related Products

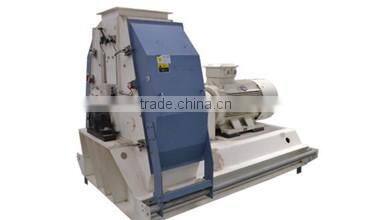

Grain hammer mill

Vertical feed grinder and mixer

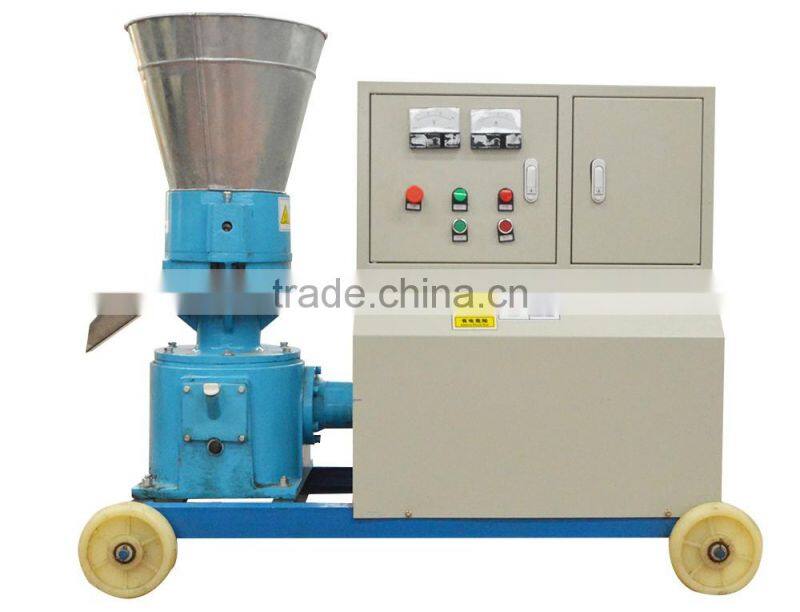

Flat die pellet mill
