Big profile labor saving floating catfish feed machinery With CE approved
Production description:
1. Strengthening Wet-type Extruder:
1.The stainless steel frequency conversion feeder with speed-govering and arch-breaking prevents arching of materials effectively in the bin and feeds more accurately.
2.With lengthening and forceful stainless steel conditioner.
3.The combined main shaft can be applied to different extruding processing, especially to the extrusion of soyben,corn,poultry feed and widely used in rice bran presevrvation and dextoxification of cottonseed dreg and castor dreg,ect.
Model |
Power of main shaft |
Feeder power(kw) |
Diameter of screw(mm) |
Yield (t/h) |
Weight (kg) |
|
Soybean |
Complete feed |
|||||
PHA100 |
37 |
1.1 |
100 |
0.7-1.0 |
1.0-1.5 |
950 |
30 |
0.5-0.5 |
0.7-1.0 |
880 |
|||
PHA135 |
75 |
1.5 |
133 |
1.6-2.0 |
2.0-3.5 |
1200 |
55 |
1.2-1.6 |
1.5-2.5 |
1100 |
|||
PHA155 |
90 |
1.5 |
150 |
2.0-3.0 |
2.4-4.0 |
1300 |
PHA200 |
135 |
1.5 |
200 |
2.5-3.0 |
3.5-6.0 |
2500 |
2.Dry-type Extruder:
1.Simple structure and facilities, convenient operation and maintenance.It can process the kernels of corn and soybean.
2.Especially suitable for the extrusion of corn, non-protein nitrogen for ruminant,festher meal, meat and bone meal.
3.Main shaft is composite structure,can be applied to different extruding processing.
Model |
Power of main shaft |
Power of conditioner(kw) |
Feeder power (kw) |
Diameter of screw (mm) |
Yield (t/h) |
Weight (kg) |
|
Soybean |
Complete feed |
|
|||||
PHA100 |
37 |
2.2 |
1.1 |
100 |
0.7-1.0 |
1.0-1.5 |
950 |
30 |
0.5-0.5 |
0.7-1.0 |
880 |
||||
PHA135 |
75 |
2.2 |
1.5 |
133 |
1.6-2.0 |
2.0-3.5 |
1200 |
55 |
1.2-1.6 |
1.5-2.5 |
1100 |
||||
PHA155 |
90 |
2.2 |
1.5 |
150 |
2.0-3.0 |
2.4-4.0 |
1300 |
PHA200 |
135 |
2.5 |
1.5 |
200 |
2.5-3.0 |
3.5-6.0 |
2500 |

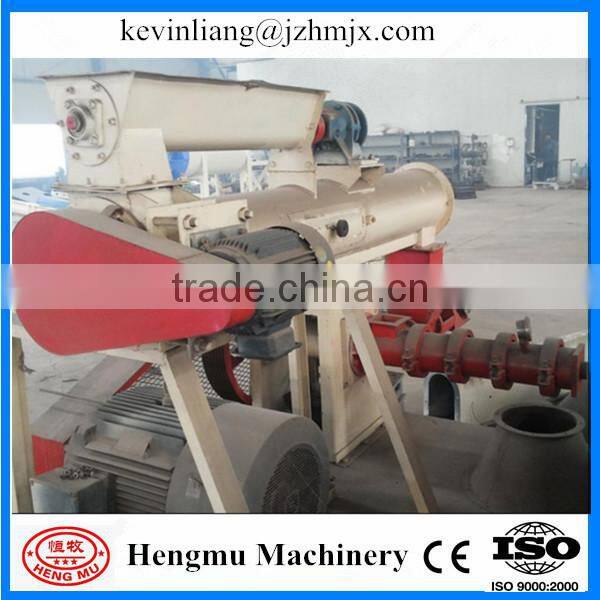

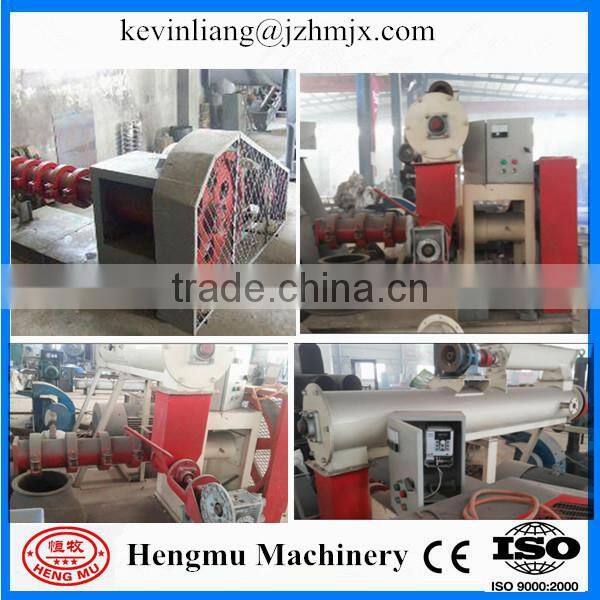

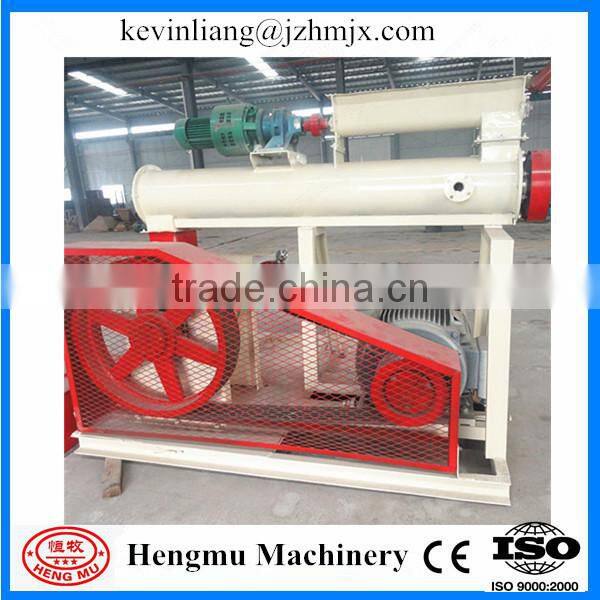

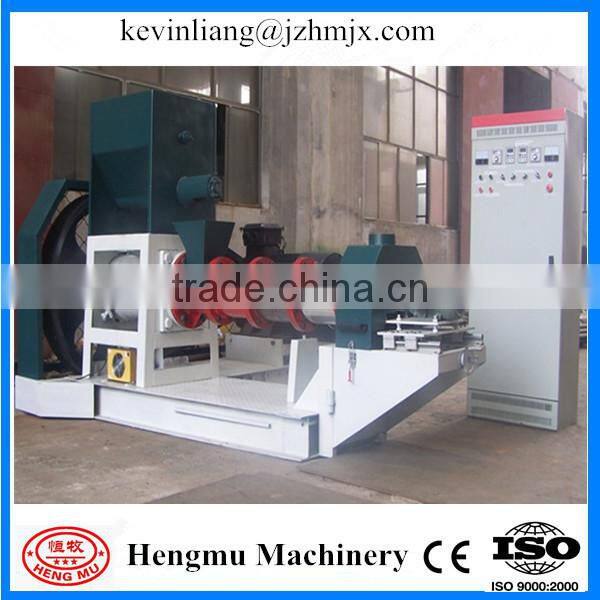

3.TheDGP Type of floating catfish feed machinery
1.The cutting structure is very advanced. The final length can be choosed. The feeder,cutter and main shaft are all controlled with inverter to ensure smooth running.
2.Novel design, unique, simple structure, easy to install and easy to unload .friendly to operate.
3.The Screw is made of special wear-resisting No38 chromium-aluminum-molybdenum. Wear parts are made of special anti-wear alloy with long service life.
4.In order to insure the quality and the capacity, there is the special pressure-increased device. And the Electric heating device improve the feed expansion rate.
5.The main bearing is from Japanese and Sweden SKF bearing. The main motor is Y-Series three phrase motor.
6.The floating pellets will float on the water for about 12 hours. It is very catering for fish. The pellets no polution and easy for working members to observe. It is mainly used to produce aqua feed, pet food, textured protein and other special feed.
1.The cutting structure is very advanced. The final length can be choosed. The feeder,cutter and main shaft are all controlled with inverter to ensure smooth running.
2.Novel design, unique, simple structure, easy to install and easy to unload .friendly to operate.
3.The Screw is made of special wear-resisting No38 chromium-aluminum-molybdenum. Wear parts are made of special anti-wear alloy with long service life.
4.In order to insure the quality and the capacity, there is the special pressure-increased device. And the Electric heating device improve the feed expansion rate.
5.The main bearing is from Japanese and Sweden SKF bearing. The main motor is Y-Series three phrase motor.
6.The floating pellets will float on the water for about 12 hours. It is very catering for fish. The pellets no polution and easy for working members to observe. It is mainly used to produce aqua feed, pet food, textured protein and other special feed.
Main parameter of floating catfish feed machinery
Model |
Yield t/h |
Main motor power (kw) |
Feeding power (kw) |
Screwdiameter (mm) |
Cutting power (kw) |
DGP40-C |
0.03-0.04 |
5.5 |
0.4 |
Φ40 |
0.4 |
DGP50-C |
0.06-0.08 |
11 |
0.4 |
Φ50 |
0.4 |
DGP60-C |
0.12-0.15 |
15 |
0.4 |
φ60 |
0.4 |
DGP70-B |
0.18-0.2 |
18.5 |
0.4 |
φ70 |
0.4 |
DGP80-B |
0.2-0.25 |
22 |
0.4 |
φ80 |
0.6 |
DGP90-B |
0.32-0.35 |
37 |
0.6 |
φ90 |
0.8 |
DGP120-B |
0.5-0.6 |
55 |
1.1 |
φ120 |
2.2 |
DGP135-B |
0.7-0.8 |
75 |
1.1 |
φ133 |
2.2 |
DGP160-B |
1-1.2 |
90 |
1.5 |
φ155 |
2.2 |
DGP200-B |
1.8-2.0 |
132 |
1.5 |
φ195 |
3.0 |
Model |
Capacity t/h |
Main power (kw) |
Feeding power( kw) |
Screw diameter (mm) |
Cutting power (kw) |
Feeder power(kw) |
DSP60-B |
0.18-0.2 |
15 |
0.4 |
Φ60 |
0.4 |
0.75 |
DSP70-B |
0.25-0.30 |
18.5 |
0.6 |
Φ70 |
0.6 |
0.75 |
DSP80-B |
0.35-0.40 |
22 |
1.1 |
Φ80 |
0.8 |
1.1-1.5 |
DSP90-B |
0.50-0.60 |
37 |
1.1 |
Φ90 |
1.1 |
2.2 |
DSP120-B |
0.70-0.80 |
55 |
1.1 |
Φ120 |
1.5 |
2.2-3.0 |
DSP135-B |
1.0-1.2 |
75 |
1.5 |
Φ135 |
2.2 |
3.0-4.0 |
DSP160-B |
1.8-2.0 |
90 |
2.2 |
Φ155 |
2.2-3.0 |
4.0-5.5 |
DSP200-B |
3.0-4.0 |
132 |
2.2 |
Φ195 |
3.0-4.0 |
5.5 |

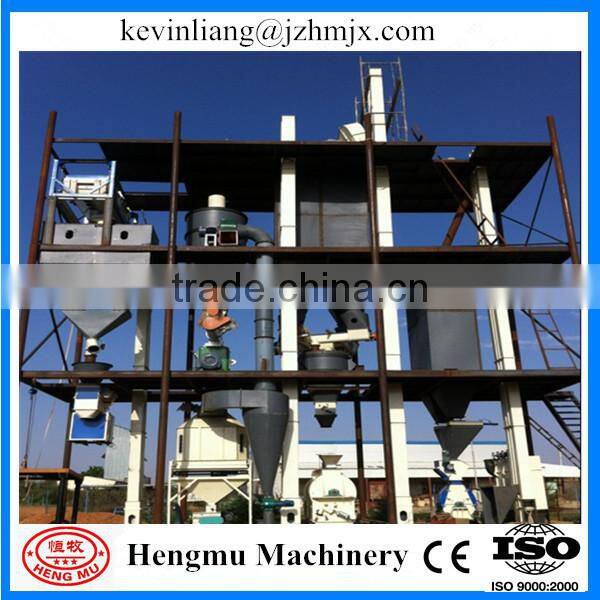

floating catfish feed machinery used in feed pellet production line

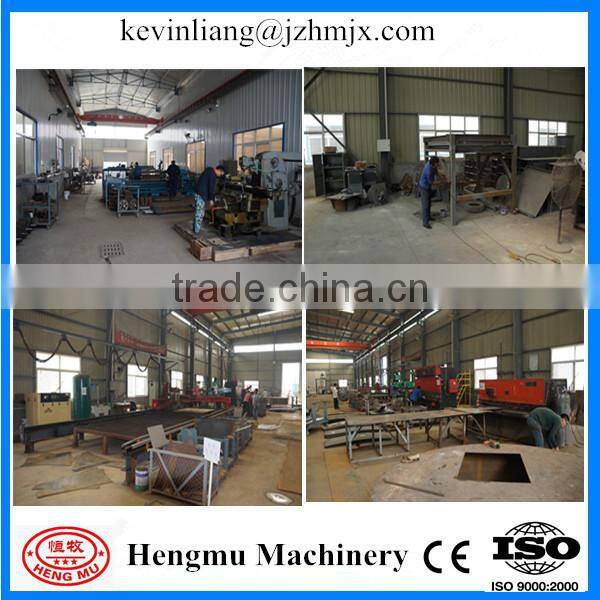

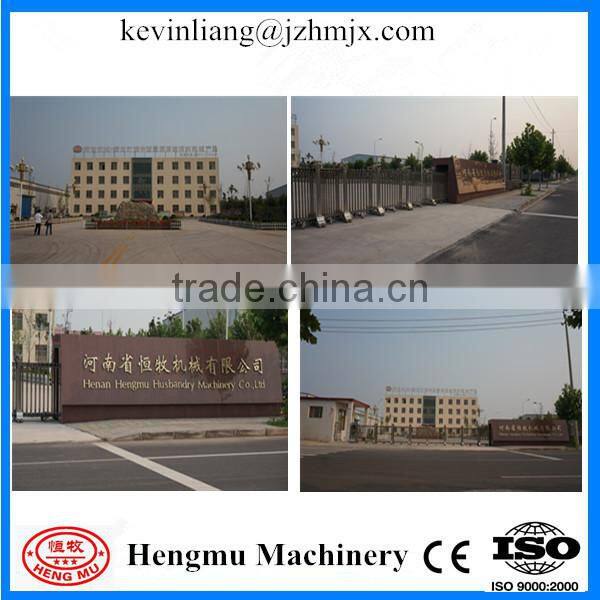

Company profile
- Henan Hengmu Husbandry Machinery Co.,Ltd. is located in the south of Yuntai Mountain, a beautiful world geology park.Our company is specialized in feed machinery and complete engineering, enzyme production machinery and complete engineering, sawdust, rice husk and biomass particles equipment.
- Henan Hengmu follows the ideas of "Customers Oriented, Common Development". We are making great efforts to offer high quality feed machines, biomass energy pelleting machines and organic fertilizer machines. We can make coal and biomass into energy.
- Our company has an excellent after-sales service team with advanced technology and rich experience. The after-sales service system is perfect. Our workers can reach any place of China in 24 hours, we can resolve your problems at the first time.
- We firmly believe that in the guidance of "Customer Oriented, Common Development", the future of Henan Hengmu will be glorious and resplendent.
Our overseas customers

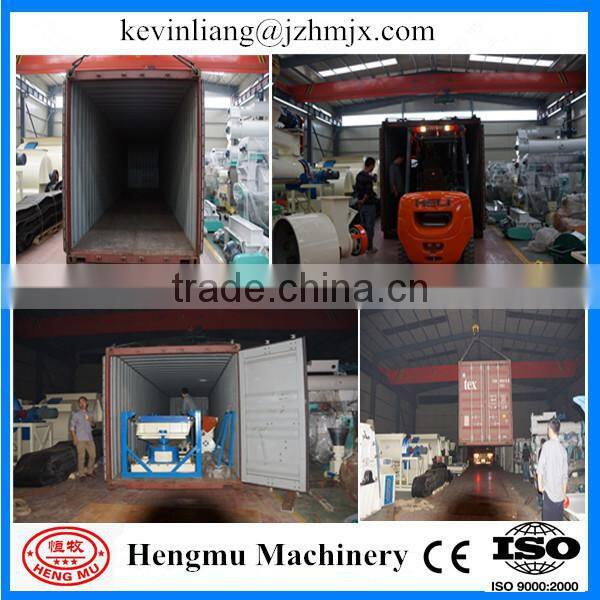

Packing
Certification
The reason to choose Hengmu.
- material thickness of main equipment is more than feed machinery standard 2mm, you can weight and contrast——please pick up the caliper and calculator to inspect.
- 24 hours rapid respond for full time. Service must start at once within an hour after receiving phone for help(we will drive car within 500 km; choose train within 500 to 1000 km; take plane more than 1000 km).
- we are professional engaged in the research and development, production, sale and service of machinery
Our services
| 1. 24 hours rapid response for full-time |
| 2.We make maintenance plans for each equipment from our factory |
| 3. We provide operating training for every customer |
| 4. We remind the customer termly to maintain the machine |
