Help CenterHigh Advanced Level Aquatic Feed Dry Fish Food Pellet Production Equpment With CE Approved for Sale
Related Products
-
High Efficiency Popular Aquatic Feed Sinking Fish Feed Extruder/pellet Processing Machine With CE Approved for SaleUS$ 5,000 - 50,000MOQ: 1 Set -
High Processing Good Quality Aquatic Feed Small Floating Fish Food Pellet Plant With CE Approved for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
High Processing Good Quality Aquatic Feed Catfish/koi Fish Food Processign Plant Machine With CE Approved for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
High Level High Quality Aquatic Feed Fish Feed Pellet Drying Extruder Machine With CE Approved for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
High Quality and Reputation Aquatic Feed Automatic Floating Fish Feeding Machine With CE Approved for SaleUS$ 5,000 - 50,000MOQ: 1 Set
Specifications
dry fish food pellet production equpment1,2mm thicker steel.
2,manufacturer price
3,CE,ISO,SGS,TUV
High efficiency aquatic feed dry fish food pellet production equpment with CE approved for sale
The principle of dry fish food pellet production equpment:
Feed at environment of high temperature (110-200 °C) and high pressure (25 to lOOkg/cm2) and high shear force, high moisture (10% 20% or even 30%), through continuous mixing, conditioning, heating, pressure, curing, extrusion die and sudden depressurization formed a bulk porous feed.
Useage range of extuder machine:
It can be applied to different extruding processing, especially to the extruding soybean, poultry feed
Fuction of the final product of dry fish food pellet production equpment:
- The final product can be used in both aquaculture and pet.
- Palatability of feed become much well.
- Feed after puffing treatment, long chain structure of protein, fat and other organic matter to the extent of the short chain structure increases, it becomes easier to digest.
- The most basic is to reduce the bacteria, mildew and fungus content of raw materials, improve the health quality of the feed
- The feeder,cutter and main shaft are all controlled with inverter to ensure smooth running.
- Wear parts are made of special anti-wear alloy with long service life.
- It can process floating,sinking and slow sinking aqua feed in small diameter with a high in-shape rate.
- Equipped with barrel heating system which makes it easy to control the quality of products.
- Low malfunction rate and easy to adjust and maintain.
- It is mainly used to produce aquatic feed, pet food, extruded protein and other special feed.
The advantages of puffed feed:
1. After extruder feed form "popcorn" state, not only physical state has been changed, but also shape and internal structure of organic molecules has been changed. This makes feed easier to digest starch, protein easier to use.
2. After treatment of puffing, fragrance and palatability of the feed has improved to stimulate appetite.
3. To improve the quality of the feed.
4. The basic function of extruder is to reduce the bacteria, mildew and fungus content of raw materials, improve the health quality of feed.
Technical parameter of dry fish food pellet production equpment:
Model of extruder |
Power of main shaft(KW) |
Power of conditioner(KW) |
Power of feeder(KW) |
Diameter of screw(MM) |
Capacity(T/H) |
Weight(KG) |
|
soybean |
Complete feed |
||||||
PHA100 |
37 |
2.2 |
1.1 |
100 |
0.7-1.0/ 0.3-0.5 |
1.0-1.5/ 0.1-0.3 |
950 |
30 |
0.5-0.7/ 0.2-0.4 |
0.7-1.0/ 0.1-0.2 |
880 |
||||
PHA135 |
75 |
2.2 |
1.5 |
133 |
1.6-2.0/ 0.7-1.2 |
2.0-3.5/ 0.4-0.7 |
1200 |
55 |
1.2-1.6/ 0.5-0.9 |
1.5-2.5/ 0.3-0.5 |
1100 |
||||
PHA155 |
90 |
2.2 |
1.5 |
150 |
2.0-3.0/ 1.0-1.6 |
2.5-4.0/ 0.5-1.2 |
1300 |
PHA200 |
135 |
5.5 |
1.5 |
200 |
2.5-3.0/ 2.0-3.0 |
3.5-6.0/ 1.0-2.0 |
2500 |
Model of extuder |
Capacity(T/H) |
Power of main shaft(KW) |
Power of feeder(KW) |
Diameter of screw(MM) |
Power of cut (KW)
|
|
DGP40-C |
0.03-0.04 |
5.5 |
0.4 |
Φ40 |
0.4 |
|
DGP50-C |
0.06-0.08 |
11 |
0.4 |
Φ50 |
0.4 |
|
DGP60-C |
0.12-0.15 |
15 |
0.4 |
φ60 |
0.4 |
|
DGP70-B |
0.18-0.2 |
18.5 |
0.4 |
φ70 |
0.4 |
|
DGP80-B |
0.2-0.25 |
22 |
0.4 |
φ80 |
0.6 |
|
DGP90-B |
0.32-0.35 |
37 |
0.6 |
φ90 |
0.8 |
|
DGP120-B |
0.5-0.6 |
55 |
1.1 |
φ120 |
2.2 |
|
DGP135-B |
0.7-0.8 |
75 |
1.1 |
φ133 |
2.2 |
|
DGP160-B |
1-1.2 |
90 |
1.5 |
φ155 |
2.2 |
|
DGP200-B |
1.8-2.0 |
132 |
1.5 |
φ195 |
3.0 |
|
Model of extuder |
Capacity(t/h) |
Power of main shaft(kw) |
Power of feeder(kw) |
Diemeter of screw(mm) |
Power of cut(kw) |
Power of tempering(kw) |
|
DSP60-B |
0.18-0.2 |
15 |
0.4 |
Φ60 |
0.4 |
0.75 |
|
DSP70-B |
0.25-0.30 |
18.5 |
0.6 |
Φ70 |
0.6 |
0.75 |
|
DSP80-B |
0.35-0.40 |
22 |
1.1 |
Φ80 |
0.8 |
1.1-1.5 |
|
DSP90-B |
0.50-0.60 |
37 |
1.1 |
Φ90 |
1.1 |
2.2 |
|
DSP120-B |
0.70-0.80 |
55 |
1.1 |
Φ120 |
1.5 |
2.2-3.0 |
|
DSP135-B |
1.0-1.2 |
75 |
1.5 |
Φ135 |
2.2 |
3.0-4.0 |
|
DSP160-B |
1.8-2.0 |
90 |
2.2 |
Φ155 |
2.2-3.0 |
4.0-5.5 |
|
DSP200-B |
3.0-4.0 |
132 |
2.2 |
Φ195 |
3.0-4.0 |
5.5 |
|

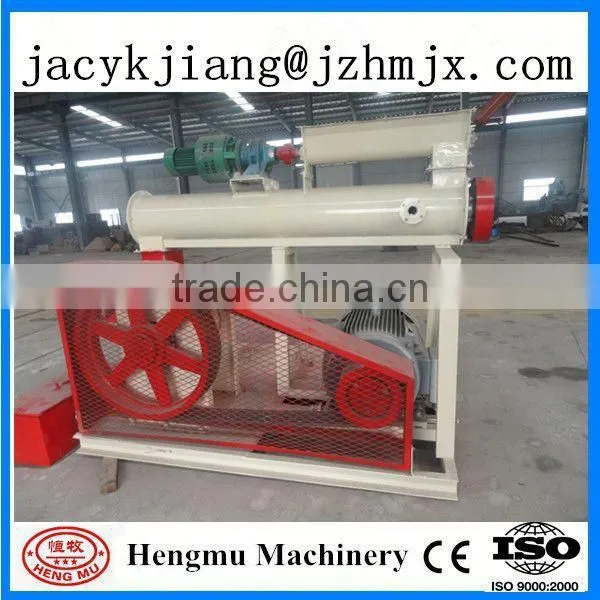

Picture show of dry fish food pellet production equpment:
Jiaozuo Hengmu Husbandry Machinery Co., Ltd. is located in the south of Yuntai Mountain, a beautiful world geology park. Our company is specialized in feed machinery and complete engineering, enzyme production machinery and complete engineering, organic fertilizer processing machinery and complete engineering, sawdust, rice husk and biomass particles equipment.Our products are exported to more than 30 countries.
Factory Size: |
10,000-30,000 square meters |
|
|
Factory Location: |
1. Xiuwu County Industrial Zone, Jiaozuo City, Henan Province, China 2. Room 807, Unit 1, Building No. 3, Meijinghuajun Community, Jinshui District, Zhengzhou City, Henan Province, China |
|
No. of Production Lines: |
5 |
|
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
|
Annual Output Value: |
US$10 Million - US$50 Million |
|
Product Price Range: |
High and/or Average
|
1. 24 hours rapid response for full-time.
2. We make maintenance plans for each equipment from our factory.
3. We provide operating training for every customer.
4. We remind the customer termly to maintain the machine.
