35 ton mobile crane China factory supply full hydraulic system
Features of 35 ton truck crane:
1. Four section hexagon large curve boom, the telescopic system adopt single cylinder and rope guiding devices, so ensure the super lifting ability.
2. Full dimensional streamline driver's cab and newly designed operator's cab, with wide vision and the equipment of instrument panel, CD device, A/C etc, providing high comfortable efficiently and reduce the weariness for continuous driving.
3. Adopt the famous brand winch system to controlling the main and auxiliary hoisting system, guarantee the high lifting efficiency and stable work performance.

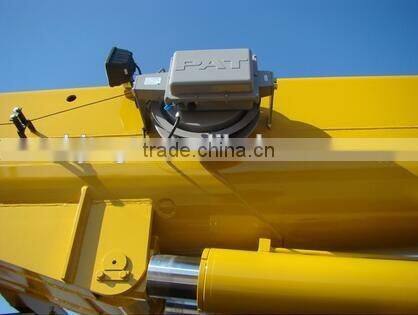

4. Equipped with the LMI controlling system, height limiter, safety valves, light etc.
5. Adopt the rod type operation system.
35 ton truck crane specs data:
Item |
Unit |
Data |
||
Dimension | ||||
Overall dimension(L*W*H) |
mm |
13580*2500*3480 |
||
Outrigger longitudinal span |
mm |
5330 |
||
Outrigger transversal span |
mm |
6110 |
||
Weight | ||||
Total weight in travel |
kg |
34680 |
||
Axle load |
kg |
Front :13180/Rear:21500 |
||
Engine | ||||
Engine model |
|
WP10.336 |
||
Engine rated power |
HP/(r/min) |
336/2500 |
||
Engine rated torque |
N.m/(r/min) |
51250/1200~1600 |
||
Working performance specifications | ||||
Max. rated lifting capacity |
kg |
35000 |
||
Lifting moment for basic boom |
KN.m |
1191 |
||
Boom lifting height |
m |
34 |
||
Jib lifting height |
m |
48.2 |
||
Single line speed |
m/min |
120 |
||
Slewing speed |
r/min |
2.5 |
||
Travelling specifications | ||||
Max. travelling speed |
Km/h |
75 |
||
Max. grade ability |
% |
30 |
||
Min. turning radius |
m |
12 |
||
Min. ground clearance |
mm |
240 |
||
Approach angle |
° |
17 |
||
Departure angle |
° |
10.2 |
||

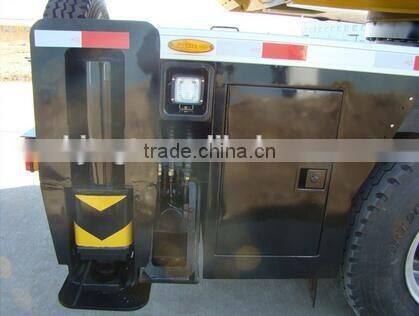

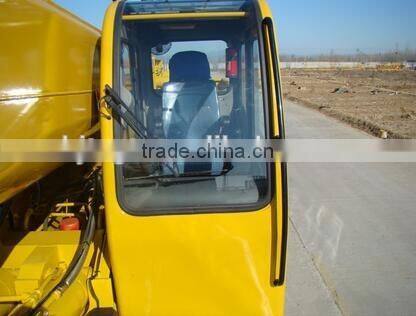

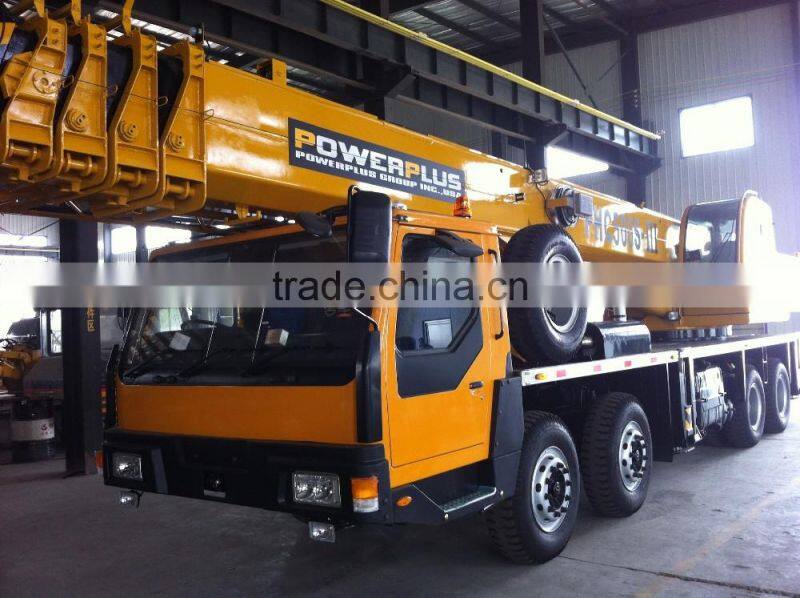

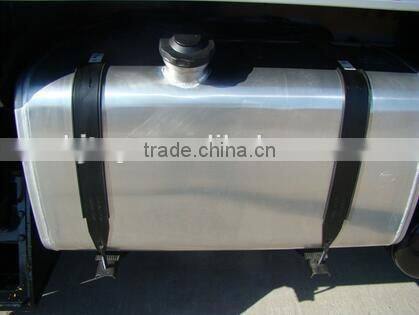

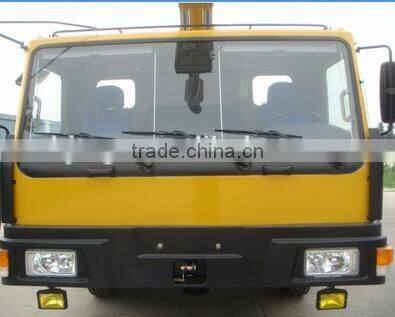

More photos:

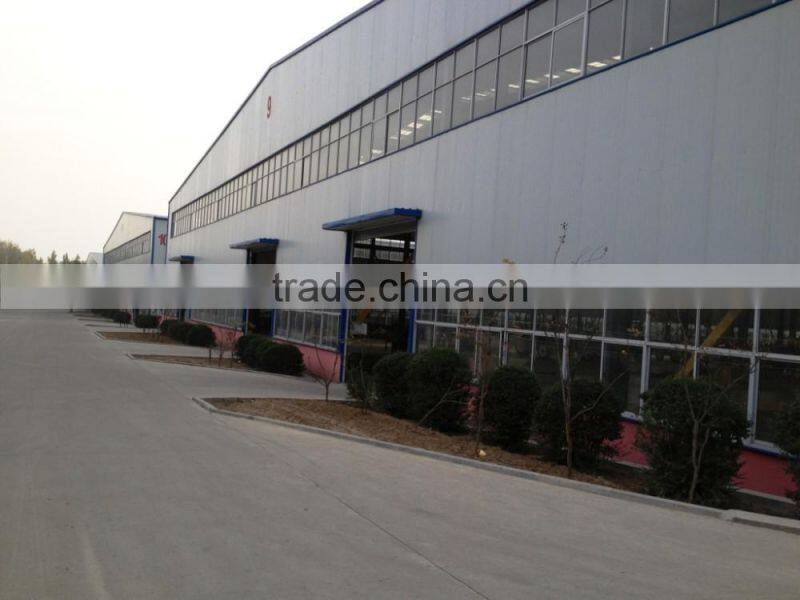

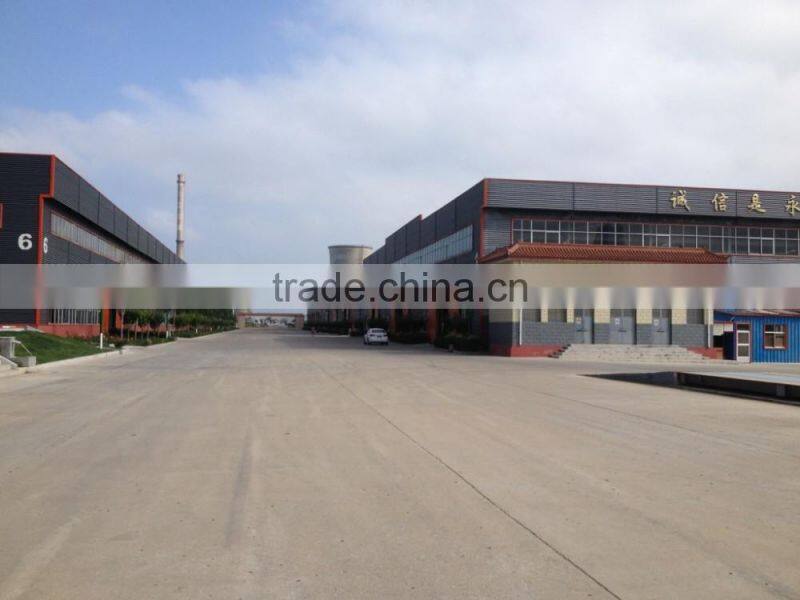

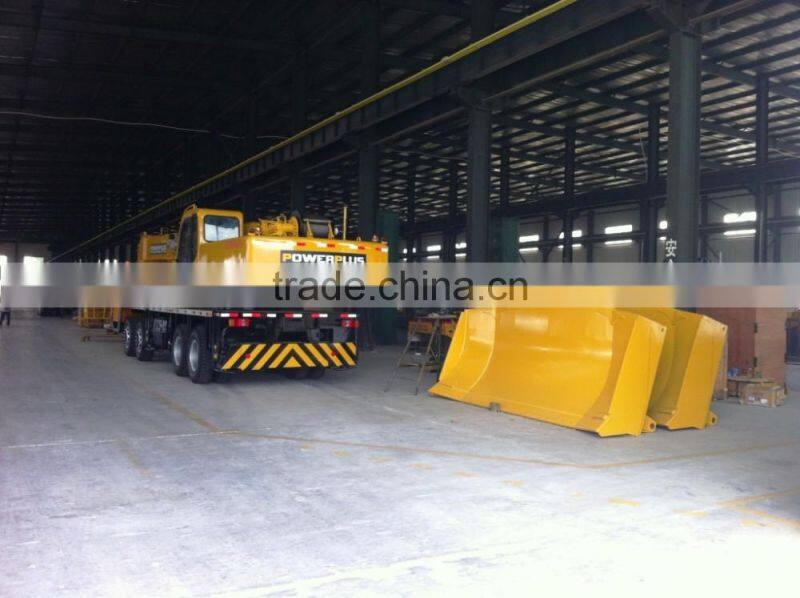

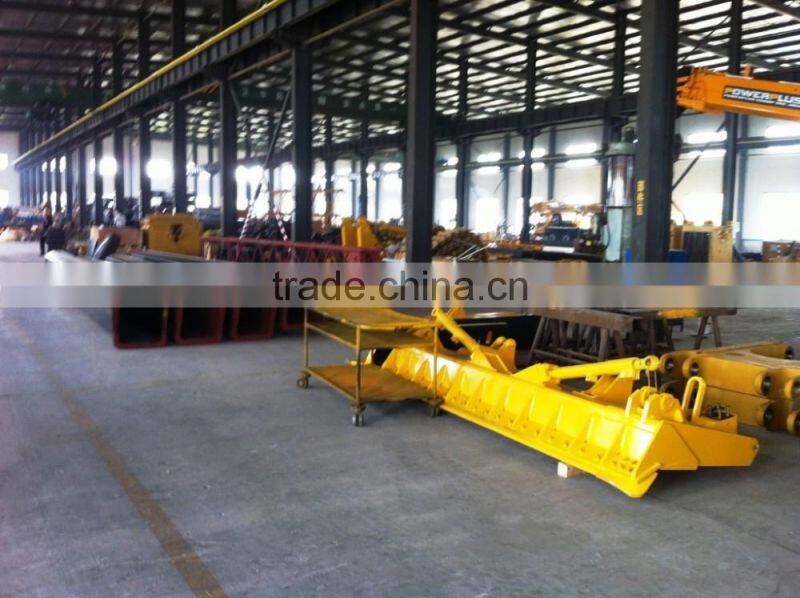

Factory and workshop:
Introduction:
Beijing Taishan Guotai Import Export Co., Ltd.: is the sub-company of Taishan Guotai group company with independent import and export right. We are devoted to provide the most suitable tractors and farm equipment according to customers demand. Taishan Guotai Tractors Co., Ltd. is one of 10 leading famous tractor manufacturers in China. It was set up in 1995, the history tracking back to 60’s. Now we cover about 150,000m2, 18 producing plants, 12 producing lines; the total employee is around 1000 people. We have the perfect quality control system to ensure the top quality productions: Professional laboratory, complete test equipment, excellent technical team, including senior engineer 10, engineer 26, and technician 60, strict quality control process.
Meanwhile, according to customer’s increasing demand, we also supply the quality industry machine, lifting machine, mining machine, earthmoving machine, road construction machine, logistics machine and forest machine and so on.
We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory, and all your comment and advice is highly.
