Home > Manufacturing & Processing Machinery > Agricultural Machinery > Biomass Briquette Machine > Wood Sawdust Hydraulic Press Equipment With CE Certificated
US$ 8,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
Biomass Fuel
Production Capacity:
99%
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sawdust Wood Shavings Press Equipment With CE CertificatedUS$ 8,000 - 35,000MOQ: 1 Set -
Shanghai Yuke 1000kg/hour Biomass Briquette Equipment for SaleUS$ 8,000 - 35,000MOQ: 1 Set
-
Good Quality Fire Wood Briquette Making EquipmentUS$ 8,000 - 35,000MOQ: 1 Set
-
Shanghai Yuke Durable Ram Type Wood Briquette EquipmentUS$ 8,000 - 35,000MOQ: 1 Set
-
Energy Saving Ram Type Solid Sawdust Wood Bar Making EquipmentUS$ 8,000 - 35,000MOQ: 1 Set
Application
Biomass Fuel
Production Capacity
99%
Place of Origin
Shanghai, China
Brand Name
Shanghai Yuke
Model Number
YKB20A
Voltage
380V
Power(W)
75kw
Dimension(L*W*H)
1800*3800*1700mm
Weight
8000kg
Features
Mechanical Stamping
Condition
New
Certification
CE / ISO-9001/Gost
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
wood sawdust hydraulic press equipment
wood sawdust hydraulic press equipment is a die and ram type mechanical press with two flywheels. Each flywheel is driven by belts with motors. Material is continuously fed through a hopper by belt conveyor with its own gearbox and a motor. From feeding chamber, raw material is compressed by ram through taper bore die. Briquettes comes out from cooling track. Total process is continuous and controlled by electric panel. Briquetting press is used for producing high density fuel briquettes
Detailed Images
hydraulic sawdust briquette press equipment
1.Screw conveyor
2.Feeding hopper
3.Main press equipment
4.Control cabinet
5.Oil cooling equipment
6.Output line
2.Feeding hopper
3.Main press equipment
4.Control cabinet
5.Oil cooling equipment
6.Output line
Specifications
Raw Material(sawdust) --wood briquette equipment-- finshed product (wood log)
Wood Sawdust (2--5mm)
Wood sawdust briquette press line

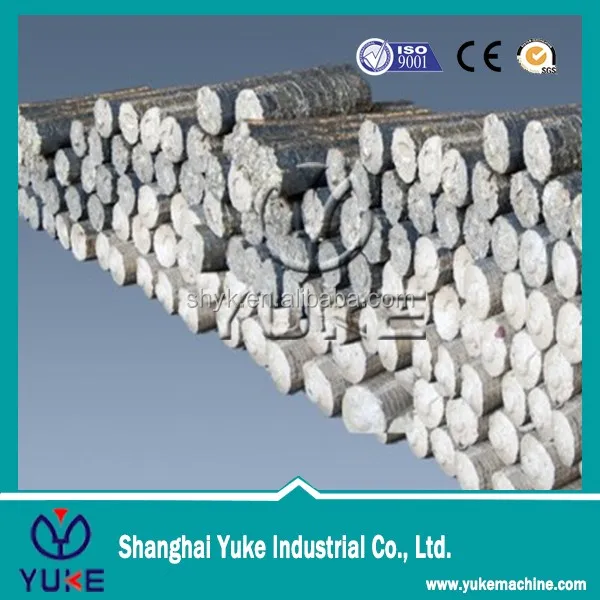

Wood log from wood sawdust hydraulic press equipent
Index Of Briquette
1.Density of briquette :1.1-1.3g/cm3 2.Heating value :3700-5000kcal
3.Sulfur dioxide emissions: 0.38% 4.Carbon dioxide emissions: 0.22%
5.Ash content 3.6%, and the ash could be recycled as agricultural potash, which can realize green recycling.

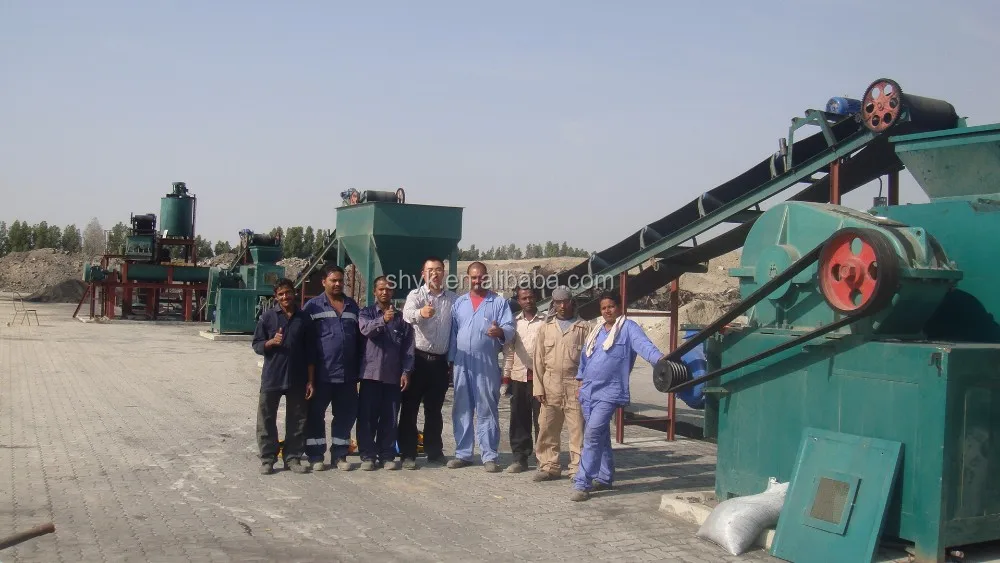

Our Customers
YUKE products have been a nationwide hot sale ,and exported to various countries and regions aroubd the world such as India ,Malaysia,Vietnam,Philippines,Indonesia,Thailand ,Russia,Africa,South America,Europe,etc.In the industry ,our products have won great popularity and recognition among users.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
*Readily available spare parts.
*Our engineers can provide service overseas.
.
