Best Price Centrifugal Long Life Dredging Slurry Pump

Three main sealing methods

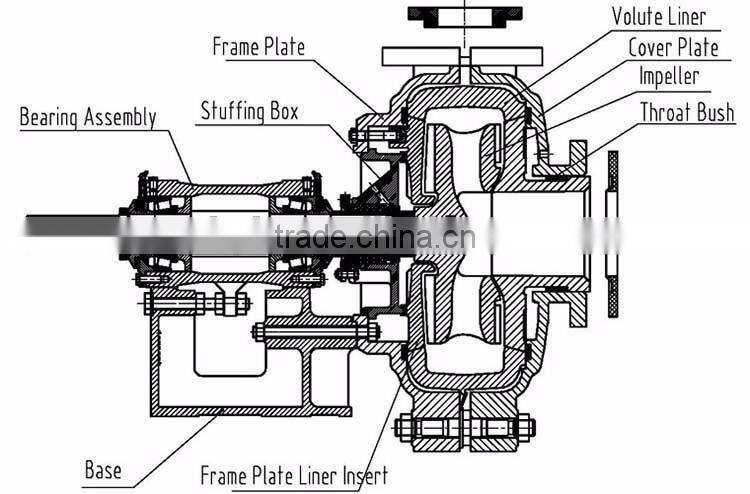

Based on the latest tecnologies in pump design and manufacture, we provide the M,AH,HH slurry Pump to you which is specially designed pumping equipment used to handle abrasive, corrosive or high-density slurries in the metallurgical, mining and coal washing industries as well as power plants and so forth. This horozontal single stage diesel water centrifugal pump, made of high chrome alloy or rubber materials and equipped with a double-layer casing, enjoys a longer servide lifespan. Its frame plates are made of hard metal or pressure moulded elastomer liners. So are its impellers. As for the shaft seals of this Mud Sucking Pump, there are such three main sealing methods available for customers now, namely:
Gland Seal(Rod Seal)
As a routine sealing method, the gland seal or rod seal is applicable to various conditions, especially the corrosive or high-temprature conditions. Given this fact, this gland seal could be also adopted in a strong abrasive condition as long as it is equipped with ceramic shaft sleeve which has been treated by spray welding.
Expeller seal
The impeller and expeller are installed in this industrail Mud Sucking Pump to produce pressure seal, packing seal or lip-seal ring which will serve as shutdown seal.
Mechanical seal
The mechanical seal of this sludge pump is highly credited for its advantages of no leakage, integrated structure and convenient installation&replacement. High-hardness ceramic and alloy are adopted in the manufacture of friction parts of this mechanical seal. That is why it enjoys good abrasive resistance and shakeproof-ness. Moreover, of excellent sealing performance, it could be used in all kinds of conditions, satisfying customers' high requirements for sealing effect.

DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.

CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors.

ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.

Yuke is an ISO certified manufacturer of pumps for more than 20 years in China, The company now manufactures 3 categories pumps: industrial, agricultural and civil, including 100 kinds and more than 2000 models, The annual production capacity is more than 10,0000.
The main product of Yuke include:
Industry categories: clean water pumps, sewage pumps, resistant pumps, corrosion resistant pumps, vacuum pumps, oil pumps, etc.
Agricultural pumps are mainly for irrigation, including diesel motor type and electric motor type, with design of stationary or removable.
Civil: Solar pump series and the civil voltage pump.
Not only do we offer pumps, also we can provide you the pump solutions according to what your needs.
Yuke’s products, with excellent quality, reasonable price are exported to more than 20 countries and regions, such as middle east, south American, Africa, etc. Established long-term cooperation with lots of companies.
