Specifications

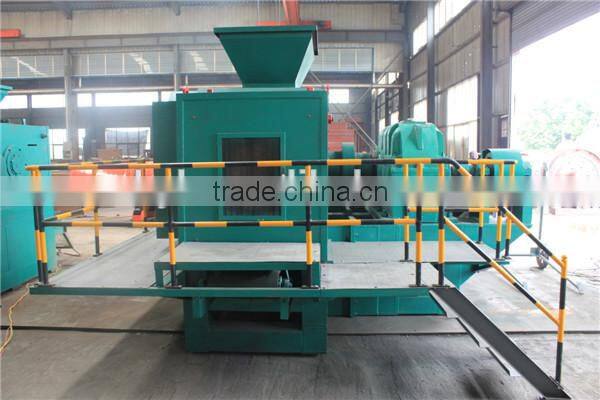

Yuke Ball Press Machine Widely used for many materialsYuke Ball Press Machine Widely used for many materials
Description
coal briquetting machine is used for making coal fines/ash/dust into briquettes. Also fit for pressing coke fines, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, ferrosilicon powder, and phospho gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc. into briquettes. The briquettes can be designed different shape & size.
Work principle
This series of ball pressure machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Application materials
- coal or coke fines/ash/dust, charcoal powder carbon black
- iron ore fines,mineral powder,metal dust,cast iron dust,mill scale,manganese ore fines,fluorite powder gypsum powder,ferrosilicon powder,
- phosphor gypsum powder,nickel alloy,blast furnace ash,converter dust,coal gangue,Kaolin clay,MgO,NPK,GRAPHITE,oil shale,potash fertilizer,urea fertilizer,sea sand powder
PS: Size of Raw Material <=3mm
Moisture of Raw materials 10%~15%
Producing Process
Main Technical Parameter
Type |
Roll diameter(mm) |
Capacity(t/h) |
Power(kw) |
YKBM290 |
290 |
1-3 |
5.5 |
YKBM360 |
360 |
4-6 |
11-15 |
YKBM430 |
430 |
6-8 |
18.5 |
YKBM500 |
500 |
7-9 |
18.5-55 |
YKBM500H |
500 |
7-9 |
20.7-57.2 |
YKBM650 |
650 |
10-15 |
37-45 |
YKBM650H |
650 |
10-15 |
39.2-47.2 |
YKBM750 |
750 |
15-20 |
75-110 |
YKBM750H |
750 |
15-20 |
78-113 |
YKBM850 |
850 |
20-25 |
90-110 |
YKBM850H |
850 |
20-25 |
93-113 |
YKBM1000 |
1000 |
25-30 |
90-132 |
YKBM1000H |
1000 |
25-30 |
93-135 |
Remarks: Based on different materials, briquettes' size, capacity, the technical parameter is adjustable.

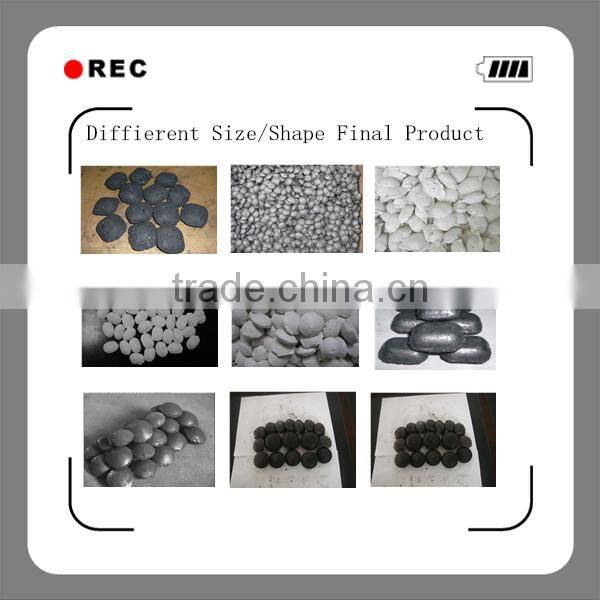

Finished Product
Shape :Pillow,Round Ball Shape,Oval,Oblate
Size of Final Product: 2cm-12cm
Wearing Parts
Product Advantages
High Briquette Ratio
Easy to opearate
Environment protection
Energy Saving
Safty Producing
Certificate
RFQ
Place order or send inquiry please let us know the following information
What’s the moisture of the raw materials ?
The size of the raw material
How many tons you want to make briquette in one hour
Whether the briquettes should be drying
Service Advantage
*****************************************************************************
A.Sample Test We could text the machine and make the sample briquettes for you.You can the raw materials to us first.
B. Customized Design We could design the briquette shape and size for you, and capacity of the equipment can be adjusted.
C. Technical Gudiance We could send the instrall drawings and technical gudiance for your instrall and operate.
D.Oversea Instrall We also could dispatch our engineers and workers to instrall the equipment for you .
E.24 hours after sales service . If you have any question in the istrall and operate ,please feel free to contact with us , we will help you to sovle the problem professional and quickly.
**************************************************************************************
CHOOSE SHANGHI YUKE ,YOU CAN'T GO WRONG !
