Ultrasonic Homogenizer/Sonicator

Specifications

Ultrasonic Homogenizer
1) complete functions
2) novel appearance and reliable performance
3) large-screen display

Description:



Ultrasonic Processor JY98-IIIN (1200W, 20KHz) is a powerful and reliable ultrasonic device for the sonic dispersion of larger samples in the lab. Typical application include: Homogenization, Nano Partical Dispersion, lyses and cell disintegration, protein extraction and the emulsification of liquids.



Sonicator:



It can be used to disintegrate cells of various kinds of animals and plants,viruses,tissues as well as to reshape inorganic substances.

1. It can also be used in emulsification,separation,distribution,collection cleaning and nano-material preparation,dispersion acceleration of chemical reactions,etc.
2. It has wide applications in teaching,researching,and manufacturing in many fields such as biology,microbiology,physics,zoology,agriculture and pharmacology and so on.

Features:

1. The ultrasonic time and power can be set accordingly.
2. sample temperature display,actual frequency display
3. computerized tracking and automatic trouble warning can all be display in the large LCD screen



Main Technical Parameters:



MODEL	JY98-IIIN	JY98-IIIDN	JY99-IIDN
Frequency	19.5-20.5KHz	19.5-20.5KHz	19.5-20.5KHz
Power	1200 W	1200 W	1800 W
Accompany (Φ)	Φ 20	Φ 20	Φ 25
Optional Tip (Φ)	Φ 15,25	Φ 15,25	Φ 20,28
Processing Volume	50-1000 ml	50-1000 ml	50-1200 ml
Duty Ratio (%	1-99  %	0.1-99.9%	0.1-99.9%
Supply	220/110V  50Hz/60Hz	220/110V 50Hz/60Hz	220/110V 50Hz/60Hz
Power supply chassis Size and Weight	40*28*22(cm);12.1Kg	40*28*22(cm);12.1Kg	40*28*22(cm);13Kg
Mainframe Weight	14.5 Kg	14.6 Kg	15Kg
Packing Size	534*295*435mm	534*295*435mm	534*295*435mm

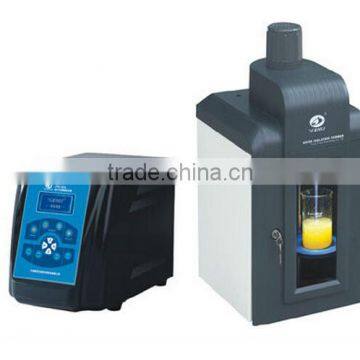

Product Photo:





Horn Photo





Specialised Broken Bottle:
