3-point hydraulic heavy duty disc harrows
Hydraulic heavy duty disc harrow
3-point mounted
Susitable for crushing the clods after tillage
Reasonable construction
Hydraulic heavy duty disc harrow performance:
The 1BZ Series hydraulic pressure heavy-duty disc harrow absorb the advantages of foreign similar advanced products .It’s designed according to the standards ,with modular construction .Rigid frame as main body ,matched with hydraulic pressure transport rubber tire, spring leveling mechanism and sealed rolling bearing with spherical surface with small radius of gyration ,easy to adjust and maintain ,etc.
Hydraulic heavy duty disc harrow Main Parameters:
Model | 1BZ-3.0 |
Working width(mm) | 3000 |
Working depth(mm) | 200 |
Q’ty of disc | 20 |
Disc diameter(mm) | 660 |
Total Weight(kg) | 1550 |
Matched power(hp) | 100-120 |
Linkage | Three-point mounted |

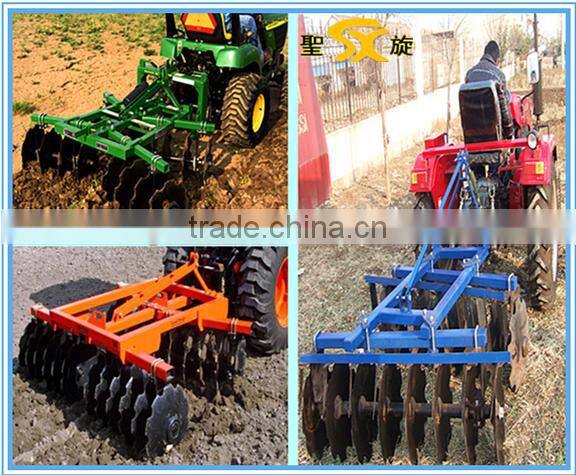

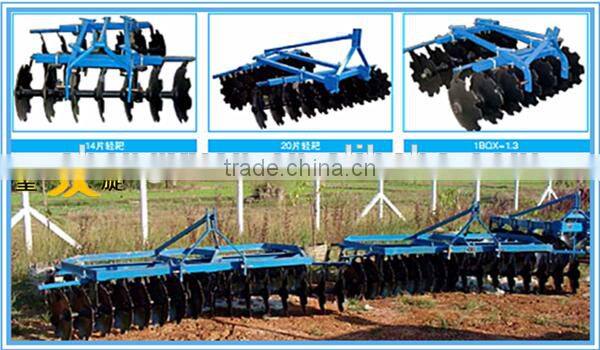

Hydraulic heavy duty disc harrow in Working:
Our hydraulic heavy duty disc harrow for sale has the features of reasonable structure, strong ability to rake, durable, easy to use and maintain, strong crashing-earth ablity and ground flat after working, etc,.

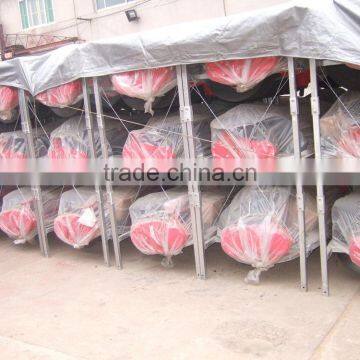

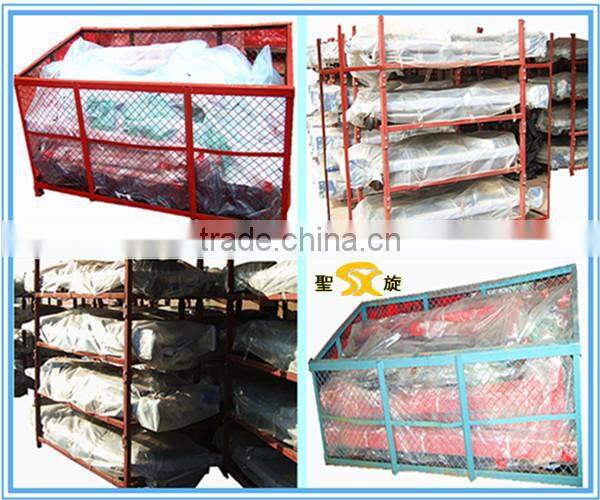

Hydraulic heavy duty disc harrow packaging pictures:
1.1BQX Light-duty hydraulic heavy duty disc harrow:
1BQX Light-duty hydraulic heavy duty disc harrow main parameters:
| Model | Working Width (CM) | Working Depth (CM) | Overall Weight(KG) | Matched Power(HP) | No.of Disco | Diameter of Disc(CM) |
| 1BQX-1.1 | 110 | 10 | 200 | 12 | 12 | 46 |
| 1BQX-1.3 | 130 | 10 | 220 | 15-18 | 14 | 46 |
| 1BQX-1.5 | 150 | 10~14 | 240 | 25 | 16 | 46 |
| 1BQX-1.7 | 170 | 10~14 | 260 | 30 | 18 | 46 |
| 1BQX-1.9 | 190 | 10~14 | 280 | 30-40 | 20 | 46 |
| 1BQX-2.1 | 200 | 10~14 | 300 | 40-50 | 22 | 46 |
| 1BQX-2.3 | 230 | 10~14 | 360 | 40-60 | 24 | 46 |
| 1BQX-2.7 | 270 | 10~14 | 480 | 60-70 | 28 | 46 |
| 1BQX-3.4 | 340 | 10~14 | 1100 | 80-100 | 42 | 46 |

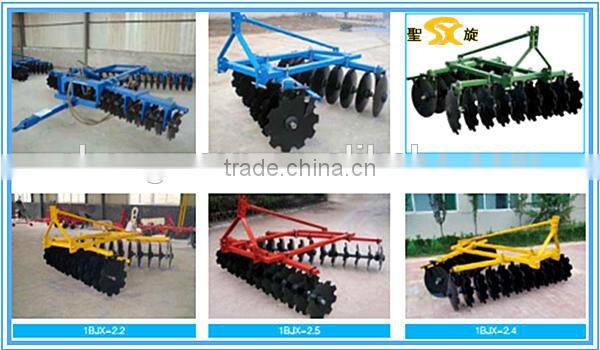

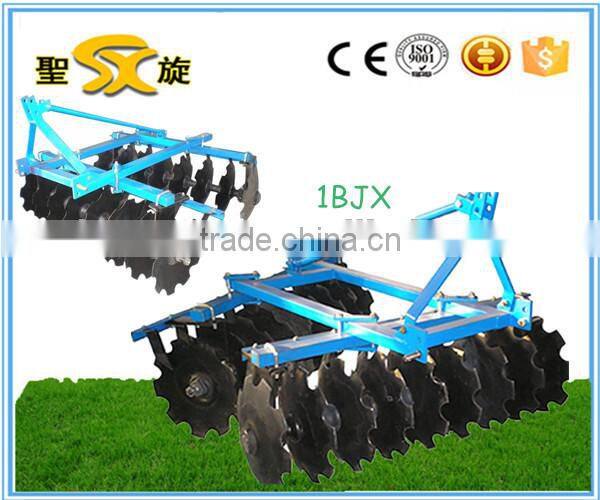

| Model | 1BJX-1.5 | 1BJX-1.7 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working Width (CM) | 150 | 170 | 200 | 220 | 240 | 250 |
| Working Depth(CM) | 14 | 14 | 14 | 14 | 14 | 14 |
| Overall Weight(KG) | 340 | 390 | 434 | 463 | 604 | 700 |
| Matched Power(HP) | 30 | 45 | 50 | 55-60 | 65 | 75hp |
| No.of Disco | 14 | 16 | 18 | 20 | 22 | 24 |
| linkage | Three-point mounted | |||||
| Working angle | 14,17,20,23 | |||||

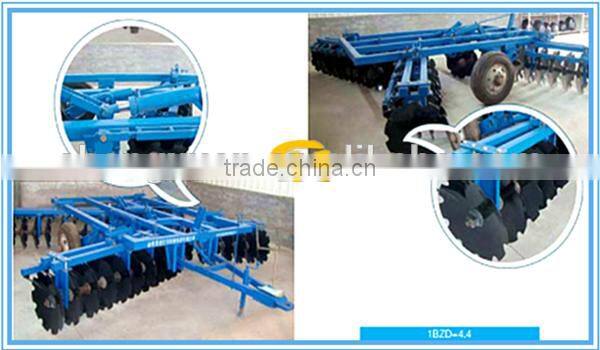

3.1BZ Heavy-duty hydraulic heavy duty disc harrow :
1BZ Light-duty hydraulic heavy duty disc harrow main parameters:
| Model | 1BZ-2.0 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Working Width (CM) | 200 | 250 | 300 | 400 |
| Working Depth(CM) | 20 | 20 | 20 | 32 |
| Overall Weight(KG) | 1150 | 1350 | 1430 | 1550 |
| Matched Power(HP) | 60-80 | 80-100 | 100-120 | 120-150 |
| No.of Disco | 18 | 24 | 28 | 32 |
| linkage | Trailed | |||
| Diameter of disc(cm) | 66 | 66 | 66 | 66 |
| MOQ | 1PC |
| Package | Iron frame or wooden case |
| Delivery terms | FOB,CFR,CIF,EXW |
| Lead time | 7-15 working day in regularly,or subject to the order quantity. |
| Payment Type | T/T,L/C,Paypal,Western Union,Escrow |
| Supply Ablitity | 5000 Sets/Month |
| Port | Qingdao |
Why Choose Us:
1. Established in 1984,Weifang shengxan Machinery Co.Ltd is a manufacturer and exporter specializing in farm machinery for 20 years. Owned “SHENGXUAN” brand, “CE” Certificate by ITALY ECM |
| 2. Customized by the requirements of the clients |
3.Capability of design,research and development,processing,assembling, and sales |
4. Factory direct sale with the strict quality control & lowest damage rate |
5. Once cooperation, forever customers and friends. Excellent after-sales service. |
Trade Assurance: (reassure your delivery time and the quality.)
As a member of alibaba, we gain the support form Alibaba depends on the good quality and reputation, such as “Trade Assurance”
Trade Assurance is a free protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
