Help CenterIrrigation Center Pivot From Spain
Related Products
Specifications
| Type | Center Pivot Irrigation System |
| Use | Irrigation |
| Certification | ISO |
| Place of Origin | Spain |
| Brand Name | Urapivot |
| Model Number | Center Pivot |
| Material | Steel |
| Feature | Irrigate large surfaces, saving water, etc. |
| Min. Order Quantity | 1 Set |
| FOB Price | EUR 19000~100000 / Unit |
| Port | Valencia |
| Payment Terms | L/C T/T |
| Production Capacity | 40 Unit/Units / Month |
| Packaging Details | Standard in container |
| Delivery Time | 2 months |
• Eficiency:
The commitment of this machine is to make the irrigation more efficient saving as much water as possible obtaining the best results on each crop. This is the key of Chamsa´s long-term project.
Center Pivot dimensions:
| Area | Pipe | Model | Span length | Height over ground | Tyres | |
| Up to 45 ha | 5" | URA5 | 36 to 59m | 3.1m | 14.9x24 | |
| Up to 85 ha | 6 5/8" | URA6 | 34 to 61m | 2.20-4.22m | 14.9x24 | 16.9x25 |
| Up to 150 ha | 8" | URA8 | 30 to 54m | 2.87-4.52m | 14.9x24 | 16.9x25 |
Urapivot center pivot irrigation system or lateral (linear) move with the brand is one of the best options that can offer the market.

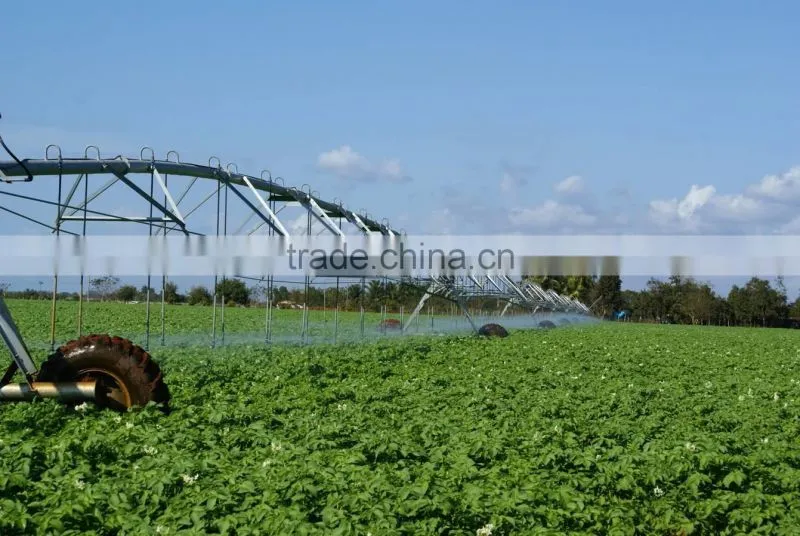

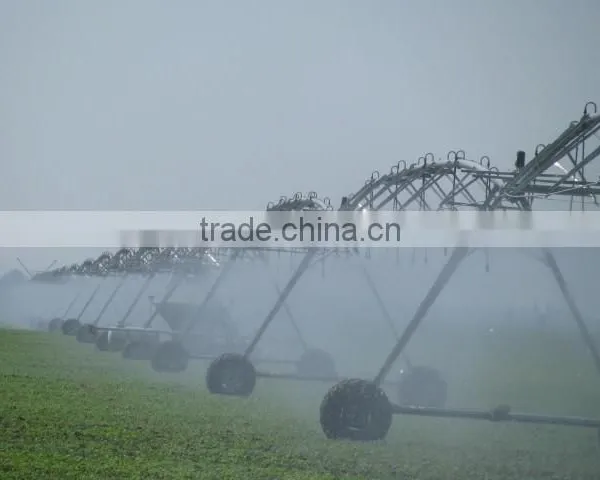

Center Pivot and Lateral Move irrigation systems are composed of self-propelled structures equipped with sprinkler irrigation and control elements which make it possible to irrigate large surfaces (15-180ha) with low installation and maintained costs.

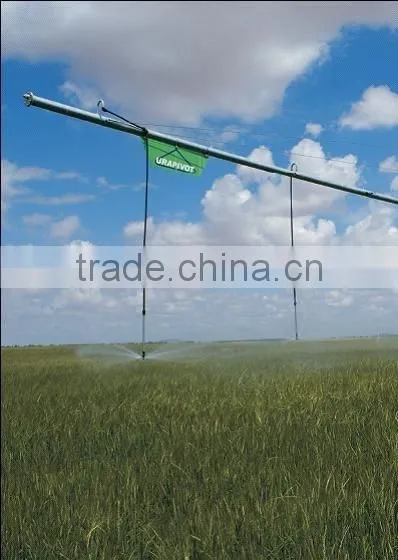

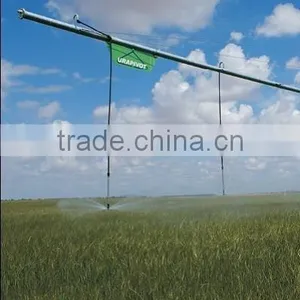

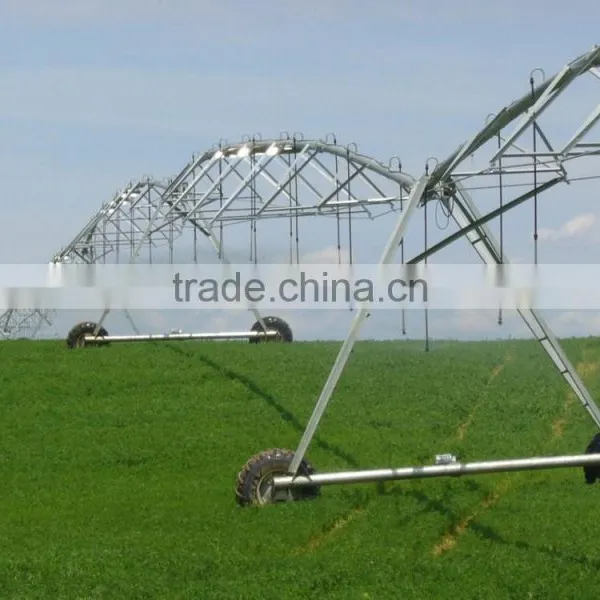

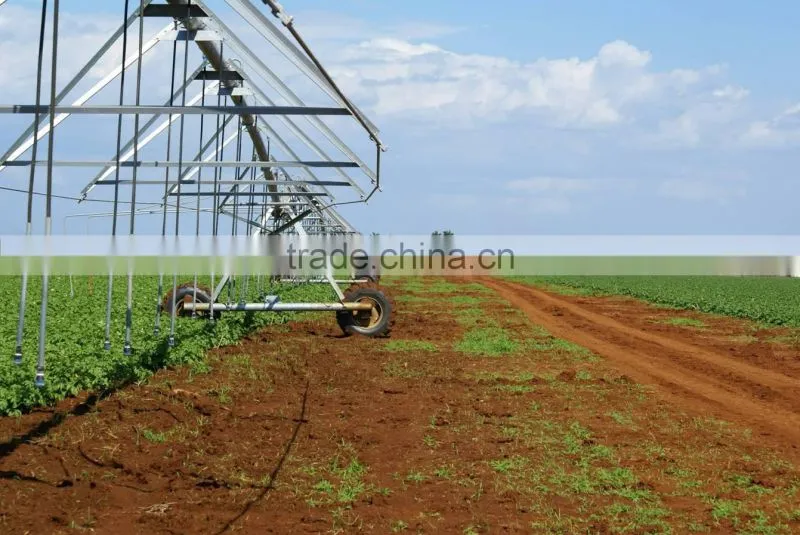

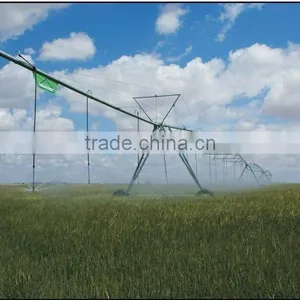

The structures are composed by several pipe sections connected to a water intake, located approximately 4m above the ground and suspended on towers, spaced between 30 to 60 meters apart. The towers are supported on two wheels which are powered by an electric motor installed on the tower frame drive tube.
At lateral Move Irrigation Systems, water is supplied to the pipeline along continuous or discontinuous in take point located on a longitudinal axis (usually located in the centre or at the end of the plot) along which, the lateral move systems travels.
Combinating technologies of Irrigation Systems with Pivot and with Lateral Move, we obtain Irrigation systems with Hippodrome in which structure moves and changes place alternatively.
We are currently active in Europe, Africa, America, Asia and Oceania.
Other overhead irrigation systems we manufacture:
• Urapivot pivot system and all its variants (Circular, Hippodrome and lateral movement)
• Impact sprinklers SOMLO
• Solid sprinkler irrigation sets (aluminium/ polyethylene pipes and fittings).
