New Price Diesel Forklift 7000 Kgs, Optional Triplex Mast, Side Shift, Fork Positioner
- Qingdao or on request
- T/T
You May Like
-
Chino Nuevo Autoelevador 7000 kg Diesel Triple Torre Desplazador Lateral y Posicionador de Unas
-
China New Price Diesel Forklift Duplex Semi Cabin Clear View Mast, Option Triplex/side-shift / Fork Positioner/ Spread
-
China New Price Diesel Forklift Triplex, Side Shift, Positioner and Spread
-
China New Price Diesel Forklift 2 -3.5 Tons Triplex, Shide-shift, Freelift
-
China New Price Diesel Forklift 2.5 Tons Triplex Mast, Optional Side Shift/ Fork Positioner
-
China New Forklift 8000lb Triple Mast Lp Gas - Pneumatic Forklifts
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | DGING | Model Number | CPCd70 | |
| Type | Other, Powered Pallet Truck, Diesel Sit-Down Counterbalance Forklift Trucks (IC) | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 7 tons | Max. Lifting Height | 6000mm | |
| Min. Lifting Height | 230mm | Fork Length | 1220mm | |
| Fork Width | 150mm | Overall Dimensions | 4800*1995*2500MM | |
| Certification | EPA CE ISO | After-sales Service Provided | Overseas service center available |
Product Description
All New Price Diesel Forklift 7000 kgs, Optional Triplex Mast, Side Shift, Fork Positioner Dual Front Solid Tires
Standards:
7.0Ton Diesel Forklift Truck 2stage 3M Mast , Hydraulic transmission (Automatic), 1.22M fork, China Engine 6102BG6 or 4115,Double Front Pneumatic tires 8.25-15, Seat with safety belt & steady bar Warning light
Options:
-ISUZU 6BG1-02 82KW
-EURⅢ UK PERKINS 1104D-44TA 83KW

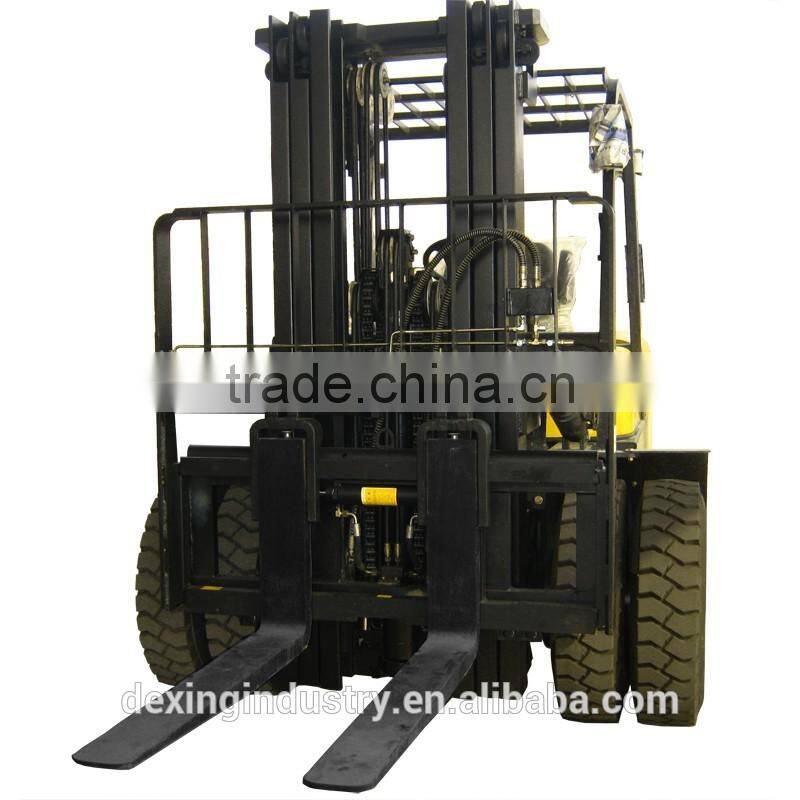

-Side shift & fork Positioner
- 6WHEELS SOLID TYRE
- Mast 2-STAGE MAST 4M 2-STAGE MAST 5M 2-STAGE MAST 5.5M 3-STAGE MAST 4.5M 3-STAGE MAST 5M 3-STAGE MAST 6M
- Cab with heater or Air conditioner
-Full free lift
1.Feartures
♦ Powerful engine
♦ Hydraulic gear-box and hydraulic steering
♦ Double front wheel for more stable and reliable
♦ Fashionable design, high efficiency
♦ Safe overhead guard
♦ Warning light
♦ Rear light for working in the dark
2.Technical Parameters
MODEL | CPCd70 | |
Load capacity | 7000 kg | |
Load center | 500 mm | |
Power type | Diesel | |
Max. lifting speeds(with load) | 440 mm/s | |
Max. driving speeds(with/without load) | 22/26 km/h | |
Max towering (with load) | 52 kn | |
Grade ability(with load) | 20/25% | |
Lifting height(H1) | 3000 mm | |
Free lift | 210 mm | |
Tilting angles(forward α-backward β) | 6°/12° | |
Min. turning radius | 3450 mm | |
Min. Right angle aisle width | 3090 mm | |
Min. under-clearance | 230 mm | |
Dimensions | Overall length(including fork) (A) | 4800 mm |
Overall width(B) | 1995 mm | |
Overall height(mast lowered) (H) | 2500 mm | |
Overall height(mast extender) (H2 ) | 4420 mm | |
Overall height to overhead guard (H3) | 2420 mm | |
Fork overhang (A1) | 632 mm | |
Wheel base (A2) | 2250 mm | |
Tread | Front tread (B1) | 1470 mm |
Rear tread (B2) | 1700 mm | |
Tire | Front tire | 8.25-15-14 |
Rear tire | 8.25-15-14 | |
Total weight | 9500 kg | |
Fork width (B3) | 150 mm | |
Fork thickness (H4) | 65 mm | |
Backrest height | 1365 mm | |
Fork length(A3) | 1220 mm | |

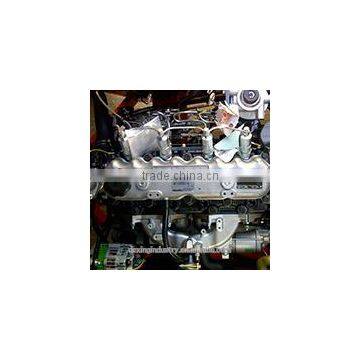

Engine | Engine model | Chaochai6102-BG/QC4115G |
Rated power | 80.9/85 kw | |
Rotate speed at rated power | 2500/2300 rpm | |
Max. Torque | 353/400 nm | |
Rotate speed at max. Torque | 1650/1600-1800 rpm | |
Battery | 2-12V/80AH | |
Type of power shift | Tor-con | |
Packing details | 1PCS/20’CNT; 3PCS/40’HQ | |

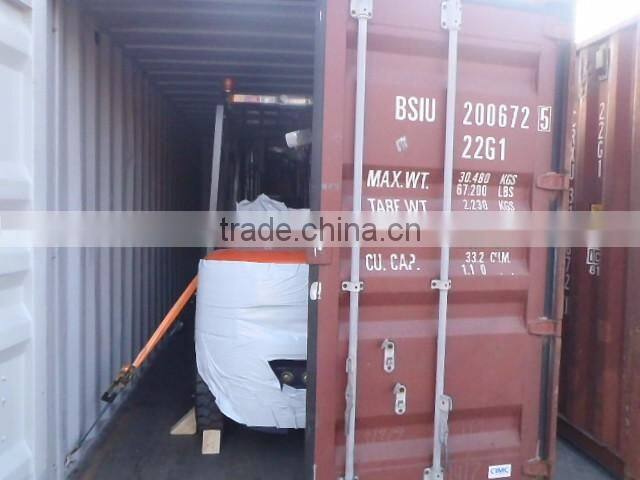

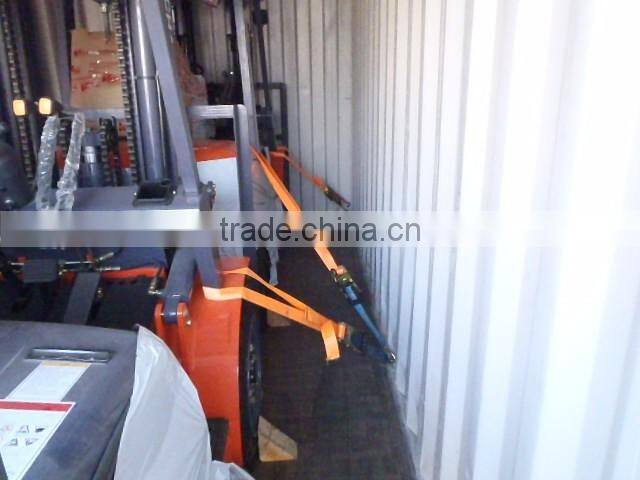

Nude Package loaded and fixed firmly in 20 gp or 40 gp container 1PCS/20’CNT; 3PCS/40’HQ

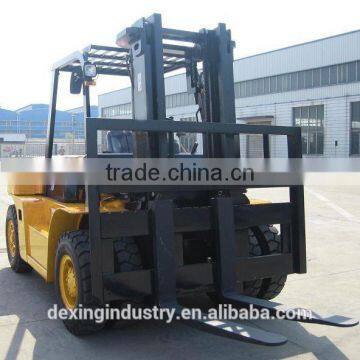

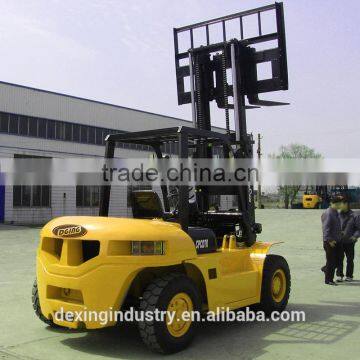

Reference Photos:
Related Products

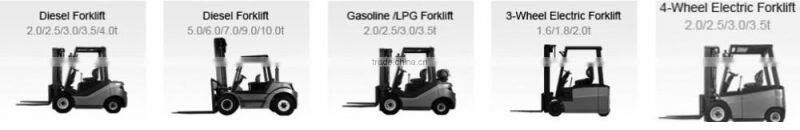

2 tonne 3.5 tonne 5 tonne 7 tonne 10 tonne diesel forklift
Various Attachments to your needs
s
Dexing company is an offical international trade company founded in 2011. With good knowledge in Customs clearance and shipment, we have successfully exported China forklifts to more than 30 countries. The good quality and effective after-sale service win clients' positive feedbacks. Alibaba insurance guarantee the whole business with our company is in safe.
In order to offer you right products, please let us know the following information:
1. Import country
2. Requirement for the products
3. The quantity you need
4. Destination port
