Customized irrigation system, drip irrigation system

Tidal irrigation controller

 is specially designed for small and mediumsized area irrigation system of resisdential districts, parks,

modern farm and so on. This system is able to achieve irrigation in cycles and automatical control function;

Tidal irrigation controller is consist of timer, control cabinet and level switch which can control water level

automatically. Timing unit of timer is every small space 15 minutes and it can set multipleunit of time to

control irrigation cycle effectively; control cabinet is consist of cabient, voltage output socket and control circuit.

Reasonable circuit layout and superior quality electron component with level switch ensure reliable operation

of whole control system effeciently.

Graphic illustration

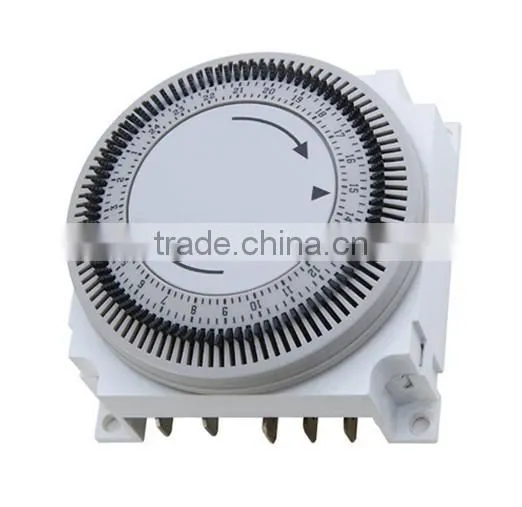

Timer settings

1.Check current moment:rotate the dial clockwise, pointer point to current time.

2.Toggle dial numbers to set time:Timing unit of timer is every small space 15 minutes and it can set multiple-unit

    of time(totally 96 dial numbers, it can be set max. 48 units)

3.it starts working just by turning on power supply.

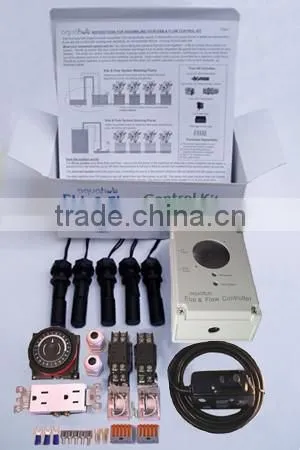

Function of control cabinet specify

Type specification table

Classic example

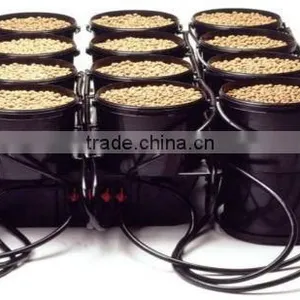

1,Potting irrigation figure

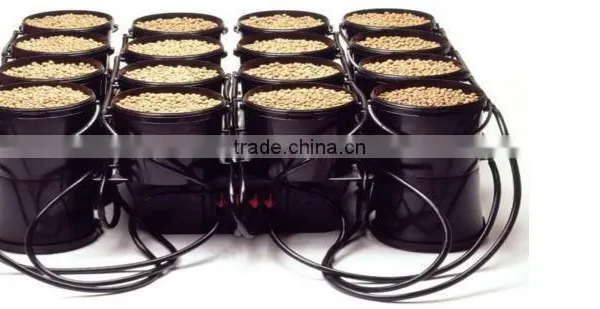

2,Potting irrigation actual appication figure

3,Potting irrigation principle

 The system is a typical application of the product. The control part is our product--tidal irrigation controller.
There is a bigger container as tank in front end of the controller, each dial number of timer is timing for 15 minutes.
It can control irrigation cycles better and freer, which is better than most 30 minutes incremental timer. Because
when plant is watered to a certain degree and roots are saturated, water should be drained out in time. In addition,
this device is a low ebb and flow system, when water is drained, roots are absorbing oxygen actually.
The working principle is very simple. First you should decorate all the containers and place them on a level
surface. Then connet the containers with all kinds of accessories. Once done, insert the power line of pump in the
reservoir to corresponding socket and set your watering time. When timer reaches the set watering time, pump in
the reservoir works and absorb nutrient solution to control water cabinet till there is enough gravity inside the
container. Under the action of gravity, press-in nutrient solution to another container(planting container or potting)
and starts irrigating. Once reach needed irrigation water level, float switch will close pump power of inservoir. As
long as you set the time, keep the irrigation water level. Once timer is closed(set time ends), pump will withdraw
nutrient solution to inservoir till water reaches preset stop draining depth to stop working. Because it is a short
distance that pumping water from reservoir, abrasion will be greatly reduced. This can make sure working life will
last for long time.
The system is also with a characteristic that all plant using containers is according to the requirements of the
plant growth characteristics and can be independent decorated. You never need to layout system, buy all
accessories and water pipes or removal. All you need to do is move the plants and planting containers to a new
place to save time and effort.
The system also appied to the timing pumping drainage, automatic sprinkling irrigation, water tank, etc.
