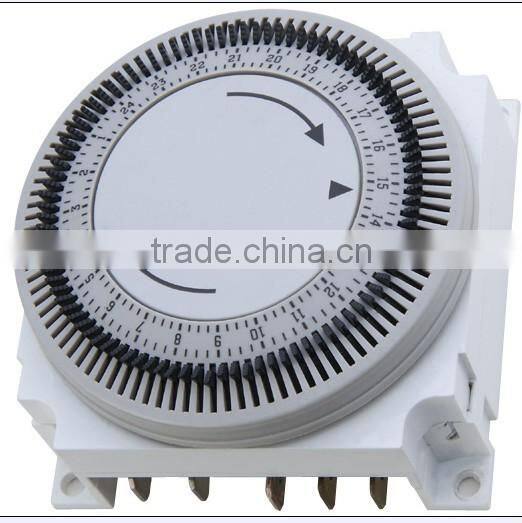

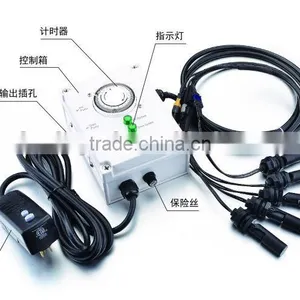

automatic irrigation controllerThis system is able to achieve irrigation in cycles and automatical control function;
Tidal irrigation controller is specially designed for small and medium-sized area irrigation system of resisdential districts, parks, modern farm and so on. This system is able to achieve irrigation in cycles and automatical control function; Tidal irrigation controller is consist of timer, control cabinet and level switch which can control water level automatically. Timing unit of timer is every small space 15 minutes and it can set multiple-unit of time to control irrigation cycle effectively; control cabinet is consist of cabient, voltage output socket and control circuit. Reasonable circuit layout and superior quality electron component with level switch ensure reliable operation of whole control system effeciently.
Timer settings:
1.Check current moment:rotate the dial clockwise, pointer point to current time.
2.Toggle dial numbers to set time:Timing unit of timer is every small space 15 minutes and it can set multiple-unit of time(totally 96 dial numbers, it can be set max. 48 units)
3.it starts working just by turning on power supply.

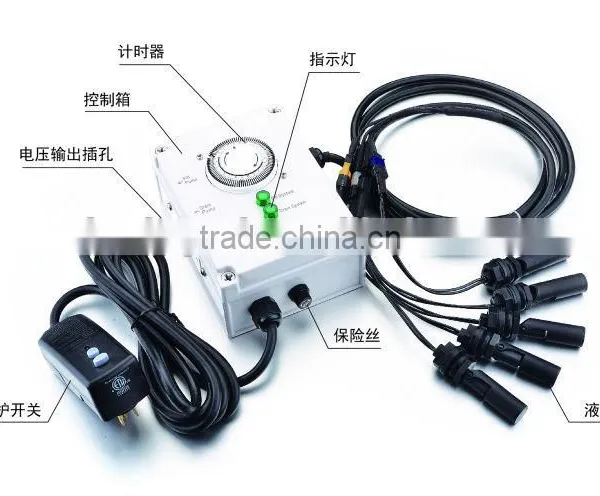

Name |
Function specify
|
Timer |
Allowed to set irrigation time freely for user. |
Indicator light |
Indicates current status, when floats straight out, FillSystem lights, when floats hanging down, Drain System lights. |
|
Leakage protection switch |
When machine is leakage over set value , it will cut off power supply automatically to protect users’and property safety. But all switches must be tested before using to ensure if they can be operated smoothly. First test switch socket, plug pin of lamp. It will light, then press “TEST” button. At this time, “RESET” button will popup and light goes out. If “RESET” button doesn’t popup, there are some problems with the switch, it should be changed. If the switch is ok, after light goes out, press “RESET” button, it can restor power supply.. |
Voltage output socket |
Conventional output: 110V, 220V, also can be customized according to actual requirements. |
Control cabinet |
An intellegent processor with protective circuit, fuse, level switch signal processing |
|
Level switch |
Functional status |
Terminal color |
Level switch functional specify |
Remarks |
|
Floats straight out |
Red terminals |
Backup Fill Shutoff Switch |
Closed when no water |
|
|
Black terminals |
Fill Shutoff Switch |
Closed when no water |
|
|
Blue terminal |
Fill Turn-On Switch |
Closed when no water |
|
Floats hanging down |
Yellow terminal |
Drain Turn-On Switch |
Closed when there is water |
|
|
White terminal |
Drain Turn-Off Switch |
Closed when there is water |
Remark:Input voltage: 110VAC, Output voltage: 110VAC, Current less than 10AMPs; Don’t connect rod when charged. | ||||
Type specification table
Technical parameter |
Type No. |
||
Input voltage |
220V |
110V |
customization |
Output voltage |
220V |
110V |
customization |
Rated current |
10A |
||
Boundary dimension |
130mmx175mmx76mm |
||
