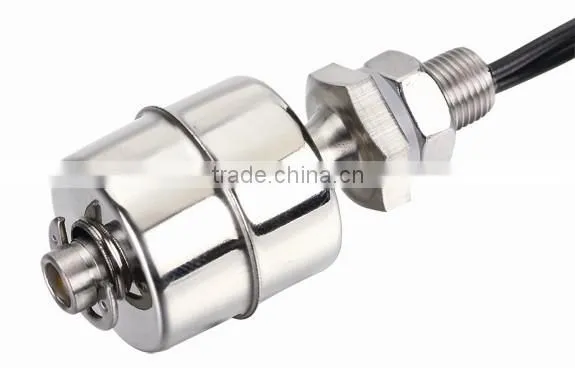

Help CenterMR10100-S Stainless Steel Electronic Water Float Switch Sensor Box
Related Products
-
MR1075-S Stainless Steel Electronic Water Float Switch Sensor Alarm SystemUS$ 3.4 - 4.3MOQ: 10 Pieces -
MR1045-S Stainless Steel Electronic Water Float Switch Passive SensorUS$ 3.4 - 6MOQ: 12 Pieces
-
MR10125-2S Stainless Steel Electronic Water Float Switch Float Switch Liquid Level ControllerUS$ 3.4 - 4.5MOQ: 10 Pieces
-
MRDZ3 Stainless Steel Electronic Water Float Switch Stainless Steel Float Level SwitchUS$ 3.4 - 6MOQ: 10 Pieces
-
MRDZ1 Stainless Steel Electronic Water Float Switch Stainless Steel Float SwitchUS$ 3.4 - 6MOQ: 10 Pieces
sensor box
1.long working life 2.stable performance 3.easy mounting 4.multi points control
Specifications
Stainless steel electronic water float switch
1.ISO9001,RoHS
2.Hermetically sealed float switch.
3.High quality, lowest price
4.OEM
Operating principle:
Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.
Characteristic:
Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.
Application field :
This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will be widely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.
Specifications |
MR10100-S |
Case |
SUS304 |
Nut |
SUS304 |
Floater |
SUS304 / SUS316 |
E Ring |
SUS304 |
Cable |
UL 1015 22AWG / 24AWG |
Filler |
Ethoxyline (ROHS) |
Used medium |
Water,Oil,Chemical liquid |
Contact Type |
Normally Open |
Normally Closed |
Normally Open High Voltage |
Normally Open High Voltage |
Max Contact Rating |
10W |
50W |
||
Max Switching Voltage |
100V (DC/AC) |
300VAC / 350VDC |
||
Max Switching Current |
0.5A |
DC0.7A / AC0.5A |
||
Max Breakdown Voltage |
150VDC |
500VDC |
||
Application
Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.

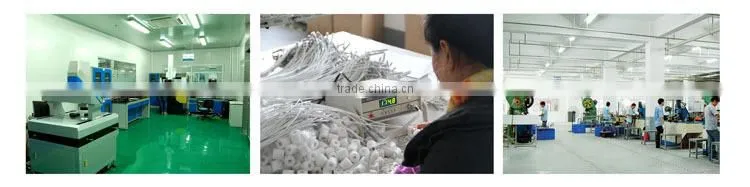

Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
Owned Certifications
