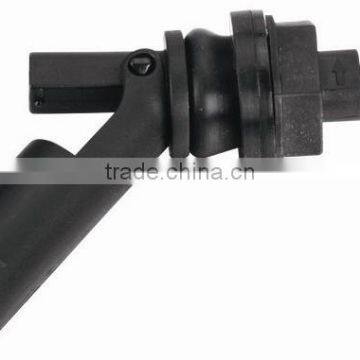

MR-L4 Side mounted Liquid Level sensor for water tank
- 300000 Piece / Pieces per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MR-L4 OEM Side Mounted Liquid level switch water sensor M16
-
MR-L3 Electric water level switch side mouted float level switch
-
MR-L3 OEM 50w plastic float switch Side mounted water level sensors
-
MR1078-SL stainless steel easy install water float switch
-
MR1078-SL side float switch SUS316 material water level sensor
-
MR0862-P -side Aquarium liquid floating switch
Product Details
Place of Origin | Zhejiang, China | Brand Name | Mingrui | |
Model Number | MR-L4 | Usage | Level Sensor | |
Theory | Current Sensor | Output | Switching Transducer |
bags and cartons
Product Description
float ball liquid level transmitter
1.long working life 2.stable performance 3.easy mounting 4.multi points control
Specifications
u Specifications
item | technical parameters | |
Max contact power | 10W | 50W |
Max switch voltage | 100VDC/100VAC | 350VDC/300VAC |
Min break down voltage | 150VDC | 600VDC |
Max switch current | DC0.5A | DC0.7A/AC0.5A |
Max carry current | 1.0A | 2.5A |
Max contacts resistance | 100mΩ | 100mΩ |
Min insulation resistance | 109Ω | 1010Ω |
Contact life | 107 | |
Applicable environment temperature | -10~+85℃/-40~+125℃ | |
material | PP/SUS304,SUS316(customization) | |
Assemble screw | M10*1,NPT1/8,NPT1/2(customization) | |
Floating ball standard | Ø24*24,Ø28*28(customization) | |
Compression resistance of floating ball | 0.7Mpa,1.4MPa (customization) | |
lead | UL 1015 22AWG(customization) |
operating principle
Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.
characteristic
Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.
Application field
This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.
Application
Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
Owned Certifications
Company Profile

NINGBO YINZHOU MINGRUI SENSORS CO., LTD. is engaged in the research, development, production, sales and service of level sensors, proximity sensors, flow sensors, industrial control sensors and hardware plastics. These products are suitable for various industries including house appliances, machinery, electronics, metallurgy, power generation, shipbuilding, petrochemical industry, food, feedstuff, waste water/pure water processing, plastics, rubber, cement, medicine, storage, chemical fertilizers, steel, mining, lubrication, air dust proof, temperature monitors, boilers, and Dyeing and finishing equipment. For meeting different requirements of different environments, the products of each kind have many optional specifications and materials, and can be customized. We develop products together with customers to improve reliance, safety and value of them. We struggle to make each link perfect, and improve our quality based on finished technology and promise to keep improving and uniform for customers. A wide range of service support systems help us to make quick responses to customers and improve our service quality. We think single product can't bring real benefits to our customers, so we pay much attention to providing customers with complete services including consultation solution, product implementation and technology support. We have a new industrial workshop, advanced machine tools, a modern design center, an efficient technical service organization, and internationally advanced testing equipment. NINGBO YINZHOU MINGRUI SENSORS CO., LTD. has been dedicated to market development and promotion of various new products for many years. During that time, we developed Korean, Japanese, and American markets, and formed fixed agencies in Korea and Japan. Through many years of cooperation, we build a good relationship with them. Our products are sold overseas. We always pursue scientific progress and meet market demand.
