Oil tank gauge
1. low cost 2. high quality 3. sample to install 4. wide application for all car and truck
MR-MS3-150
Introduction
water/oil tank liquid level sensor with lots of function, such as liquid level control, heating, oil suction, oil return, temperaturealarm, fuel filter, balance box for air pressure and safety. Mainly used for oil/water/sewage continuous indication and alarm.
Features
effectively improve the comprehensive function of the tank system, and greatly reduces the cost of fuel tank system,also reducethe potential failures in construction, such as oil leakage, box deformation, explosion and other security risks.
Applications (LEV05001,05002......05007)of single pipe sensor
mainly used in liquid level detection and oil absorbing function for oil tank of heavy-truck.

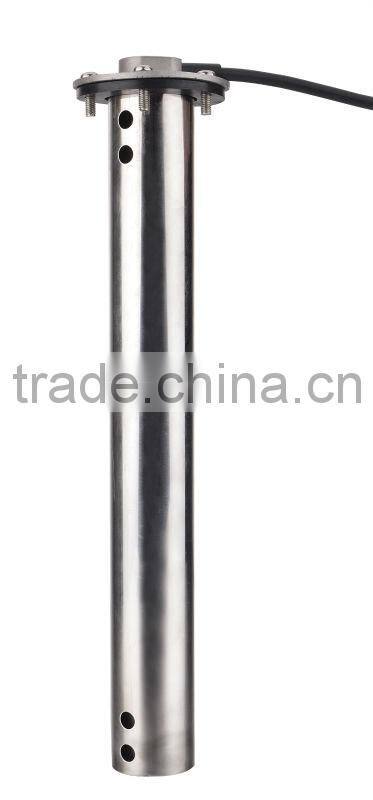

LEV05001,05002.....05005 Series
- Main body made with SUS304 material
- Length range: 100~2000mm, or custom manufacturing
- Equipment method: SAE standard with 5 holes, or others
- This product made with 5 screws, or changed with other material of gasket by operating environment
- Protection class: IP67

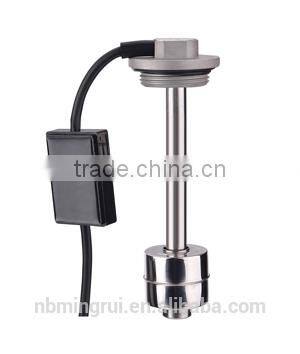

LEV05006,05007 series
- Main body made with SUS304 material
- Length range: 100~2000mm, or custom manufacturing

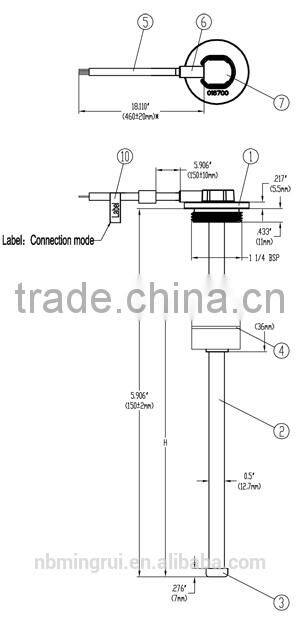

- Equipment method: BSP1 1/4” turning thread joint or PT turning thread joint. Additionally, the type of flange and oil tank can be optional
- This product made with 38*2.6mm O-Rings, or 43*3.5mm O-Rings
- Protection level: IP67
Specifications
| Model |
LEV05006,05007
|
LEV05001,05002.....05005 |
||
| Standard | Non-standard | Standard | Non-standard | |
| Length | 100~1500mm | Customization | 100~1500mm | Customization |
| Output signal | 0~190Ω | Customization | 0~190Ω | Customization |
| 240~33Ω | 240~33Ω | |||
| Equipment | BSP1 1/4" | BSP1 1/4" | SAE standard | SAE standard 5 holes |
| method | 5 holes | holes | ||
| Seal ring | NBR | NBR | NBR | NBR |
| FPM | FPM | |||
| Alarm | Non | Optional | Non | Optional |
| Cable length | 460/280mm | Customization | 460/280mm | Customization |
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision
of the various production processes.
