brass material water flow sensor price
1.Low cost2.Long life 3.Simple installation4.Wide applications

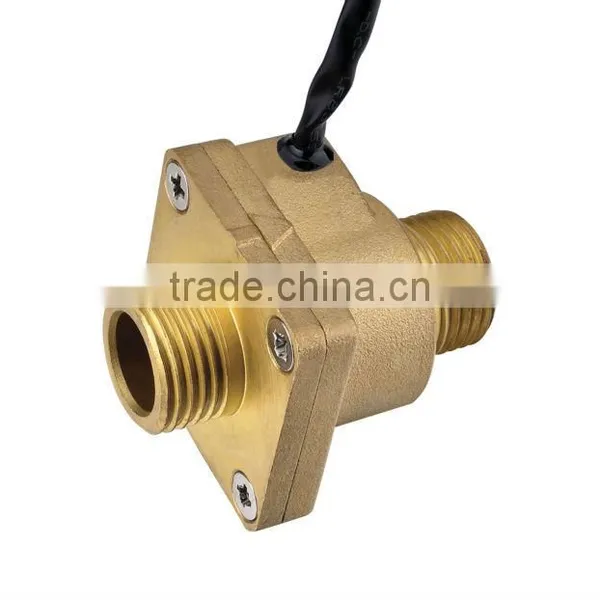

FLOW SWITCH MR-4050-G1/2
Introduction
flow switch consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor
activates the magnetic core to trigger switch action, with signal output.
Features
imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.
Applications
it is used in the control of water circulation, water charging and discharging, water heating, water pump switch
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
Specification
| withstand hydraulic pressure | ≤0.35Mpa | |||||
| voltage rating | DC5V-24V | |||||
| insulation resistance | >100MΩ | |||||
| precision | 10-132L/H | |||||
| flow pulse | F=(18Q)+5% Q=L/min | |||||
| output pulse duty cycle | 50%±10% | |||||
| max output pulse voltage | >DC4.7V | |||||
| min output pulse voltage | <DC0.5V | |||||
| body material | Nylon | |||||
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
Owned Certifications
