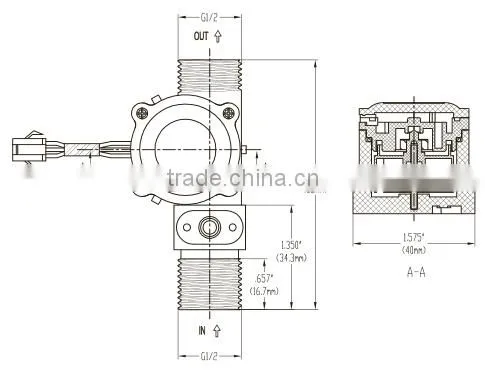

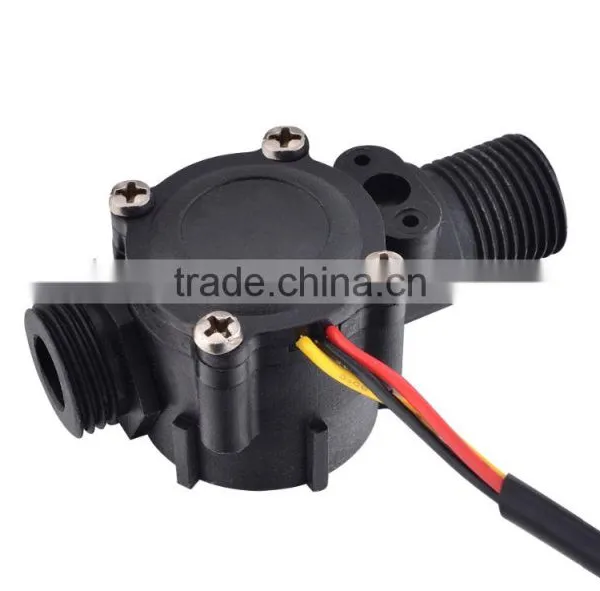

MR-A168-7 solar sysytem water pump flow sensor
FLOW SENSORS
FLOW SWITCHES
Introduction
flow sensor consists of magnetic core, rotating impeller, external casing and sensor.Flow through the
sensor activates the magnetic core to trigger switch action, with signal output.
Features
Imported components of the magnetic switch, simple working principles, and highly reliable, affordable
price.
Applications
The liquid flow sensor is used in the control of water circulation, water charging and discharging, water
heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for
electric water heater, solar energy water heater, air condition and other water systems.
| Withstand hydraulic pressure | ≤0.35Mpa |
| Voltage rating | DC5V-24V |
| Insulation resistance | >100MΩ |
| Precision | 0.2-6L/M 2-30L/M 1-60L/M |
| Flow pulse | F=(18Q)+5% Q=L/min |
| Output pulse duty cycle | 50%±10% |
| Max output pulse voltage | >DC4.7V |
| Min output pulse voltage | <DC0.5V |
| Housing material | Glass-filled Nylon |
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.
Production Line
Our factory management is in accordance with international 5S standards, strict requirements and
supervision of the various production processes.
