5E-AS3200B Automatic Coulomb Sulfur Analyzer

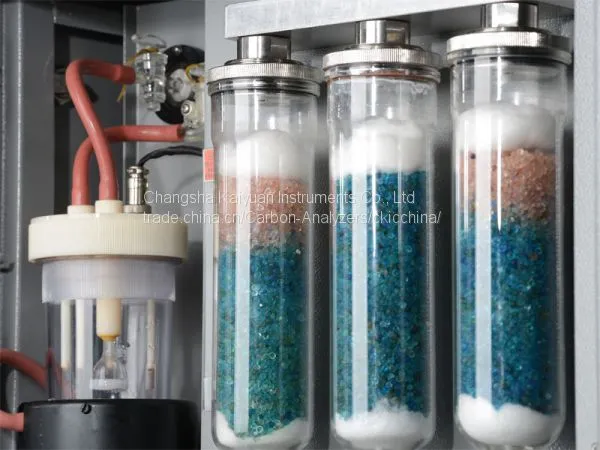

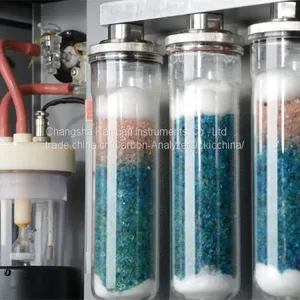

5E-AS3200B Automatic Coulomb Sulfur Analyzer is used to determine the total sulfur content in coal and liquid fuel. A sample is combusted in a dry air atmosphere; the gases evolved go to a electrolytic cell containing platinum indicating electrodes and platinum electrolysis electrodes. A small current is produced as the sulfur reacts with electrodes; the current is balanced and equivalent to the amount of sulfur present in coal.
Standard Configuration: |
Glacial acetic acid |
Features:Easy Operation 1. Auto self-diagnosis.
2. Protect heating components by over temperature alarms and auto heating off function
3. Large volume reagent tube to minimize the maintenance of changing the reagent
Cost Saving The test can be performed without oxygen, and the desiccant can be used repeatedly.

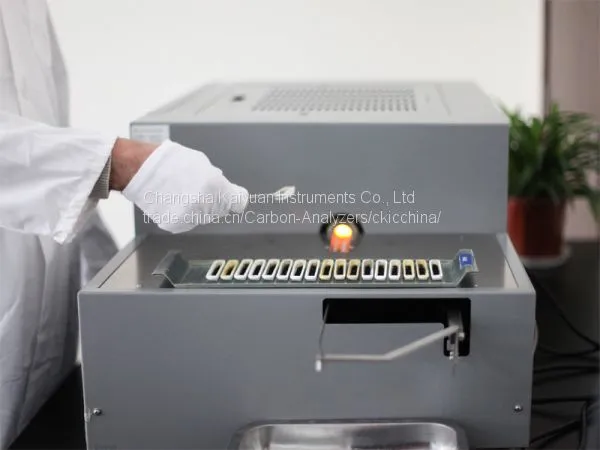

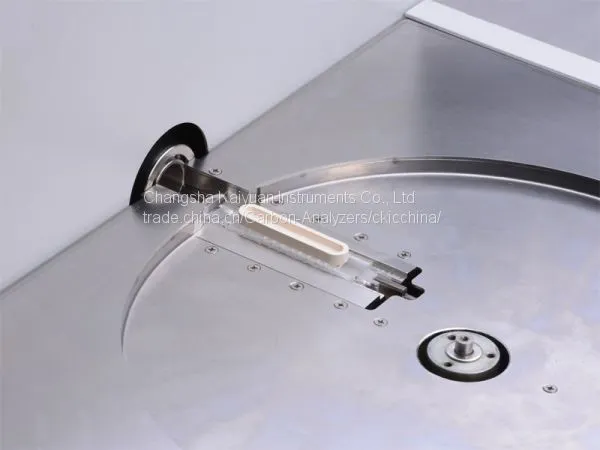

Addtional Features for 5E-AS3200B The operator is limited to just loading the sample onto the auto-loader.
MODEL |
5E-S3200 Automatic Sulfur Analyzer |
Conforms to Method |
AS 1038.6.3.3, ASTM D3177, ASTM D4239, ASTM D5016, |
Analysis Resolution |
0.01% |
Max. Sample Loading |
1 sample per batch automatically |
Sulfur Range |
0.01%-30% customized range available |
Min. Analysis Time |
3min |
Operation Temp |
0-1200°c selectable (for coal 1150°c is recommended, for oil 920°c is recommended.) |
Temp.Control Precision |
±3°c |
Sample Mass |
45-55mg for coal, 80-100mg for oil |
Power Supply |
Single phase, AC220V±10%, 50/60Hz, 3kW |
Net Weight |
53kg |
Dimensions(L×W×H) |
968mm×510mm×345mm |
