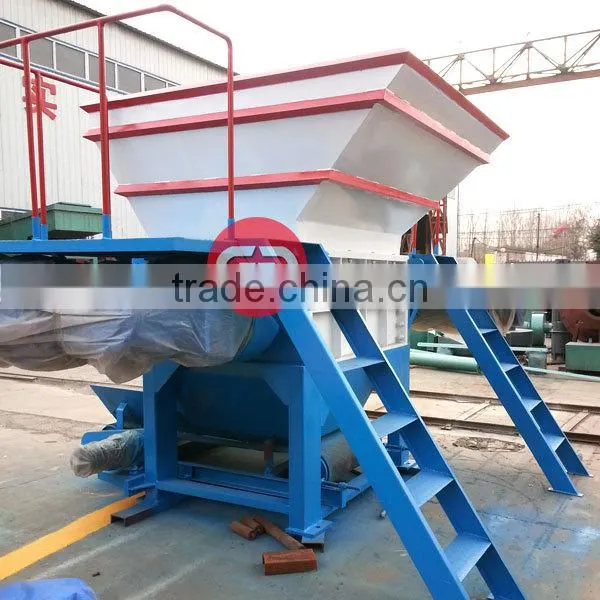

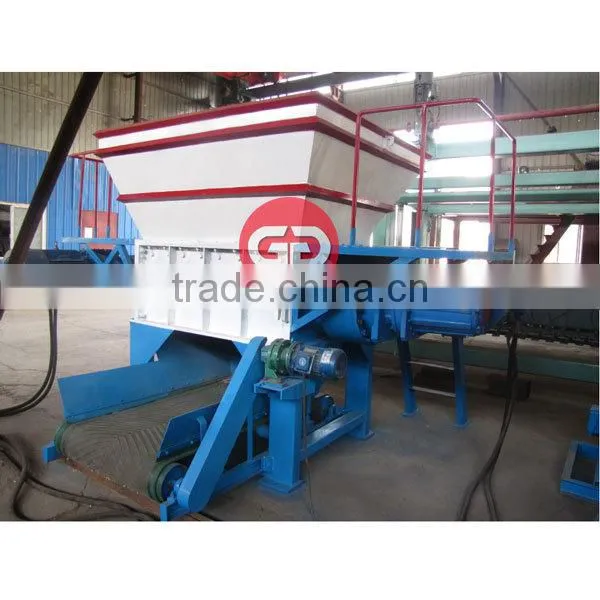

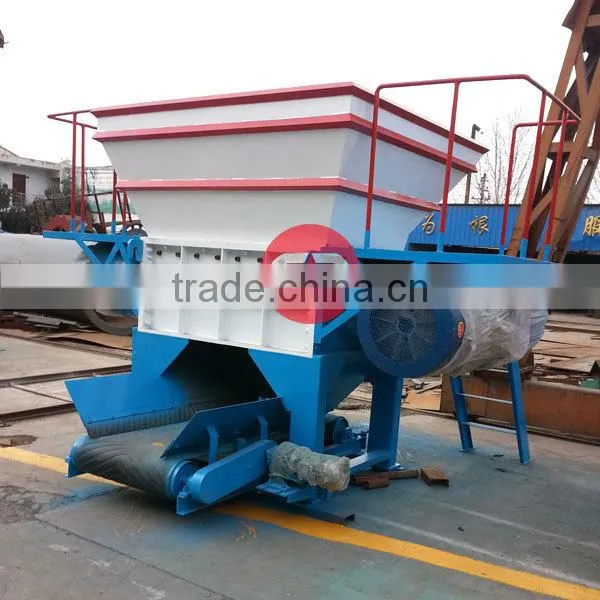

Widely used complete models double shaft home wood shredder
Shredder introduction:
Wood shredding machine, also called double shaft shredder, it is cutting, tearing and extrusion as whole to reduce
materialsize in 20x40mm granular, this type of shredding machine is widely applied in shredding municipal waste, such as waste plastics, waste rubber, wood, tree branches, waste tire, PET bottles,Chemical plastic barrels,straw, paper,
cardboard, board,plastic barrels,fiber, cable, wire, foams, clothes, film rolls, hollow barrels (paint bucket),scrap appliance,biomass etc. large volume of waste, Specially use for something difficult to tear.
Shredder blades ensure safe no harm, low noise, low power consumption and practical.
Technical Parameter:
Model |
1900 |
1500 |
1000 |
500 |
Motor Power(kw) |
6-55 kw 8-55 kw |
6-45 kw 8-45 kw |
6-37 kw 8-37 kw |
6-7.5 kw 8-7.5 kw |
The spindle speed(r/min) |
40,30 |
40,30 |
40,30 |
35,35 |
Output(ton/h) |
8-10 |
6-8 |
3-6 |
1-3 |
Conveyer motor power(kw) |
4-3 |
4-3 |
null |
Null |
Number of knife dish(pcs) |
50 |
40 |
40 |
16 |
Crushing particle size(cm) |
3-10 |
3-10 |
3-10 |
3-10 |
Hopper bin size(m) |
1.6*2.5 |
1.2*1.8 |
0.8*1 |
0.7*0.75 |
Dimensions L*W*H(m) |
6.5*1.6*2.4 |
5.2*1.5*2.4 |
2.9*1.5*1.7 |
2.1*0.85*1.6 |
Weight(kg) |
9600 |
7500 |
7500 |
3500 |
double shaft hot cardboard shredder remark:
1.The user can handle the size and amount of material to choose the appropriate model. If users need special crushing
hard materials, such as: for nylon, ABS, PC and highstrength plastic shredding machine, manufacturers need to explain the situation.
2.Thickness and number of claw cutter knife can be replaced according to the different materials. You can equip the broken hollow material feeding device with pressure to increase production.
3.Low speed operation, noise and dust can achieve higher environmental standards.
Machine Characteristic:
1> Automatic reverse protection function, energy-efficient and intelligent protection;
2> Thick and heavy moving blades, high efficiency for crushing;
3> The moving blades and fixed blade are all made of alloy steel casting, with stoutness and long service life;
4> The Iron frame plate is thick, high torque resistance, very strong;
5> Easy to adjust, Low maintenance cost, economy and high durability.
6> Per unit output is value of theoretical calculation; specific capacity is depended on the actual materials density and shape.

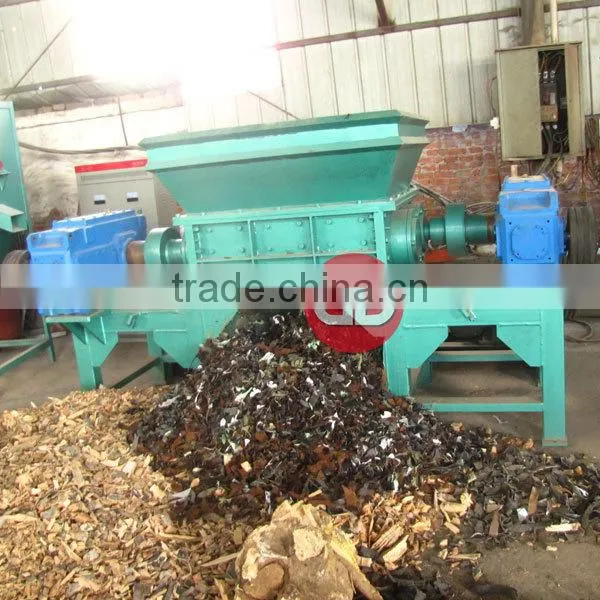

Photos for Raw materials&machine presentation:
Structure Features:
1. The crusher body
The main body is welded by high-quality steel plate, eliminating stress treatment / overall machining, to ensure high stability of whole machine during prolonged heavy work.

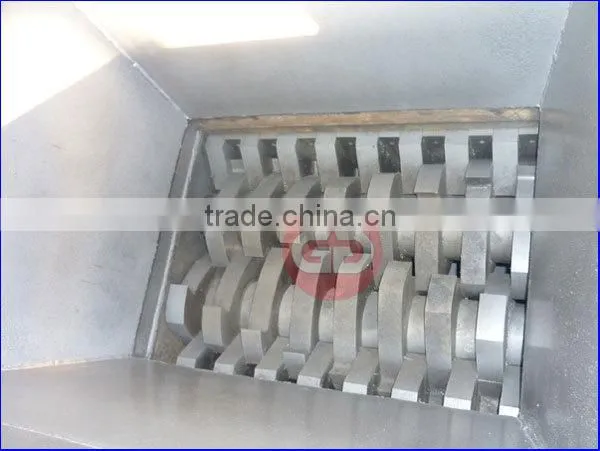

2. Knife / fixed blade
Knives are built by dedicated special alloy tool steel through forging, precision machining, multiple heat treatments and cryogenic heat treatment technology. The toughness & hardness is consistent, you can fix and use again to ensure their cutting and service life.
Fixed knives are installed by patented hook-type to maintain/replace the tool more easily.
3. Bearing / seal
Since bearing block takes the split & detachable type patent, you can quickly remove the knife, knife set, bearings and other parts, and easily maintain and replace blades, the unique sealing structure is effective barrier to prevent the contact between detritus and fats, it also can protect bearings and other gear in processing liquid materials.
4. Arbor
Processed by special High-strength overloading steel finely, the arbor is more reasonable to provide strong impetus for the cutting tool.

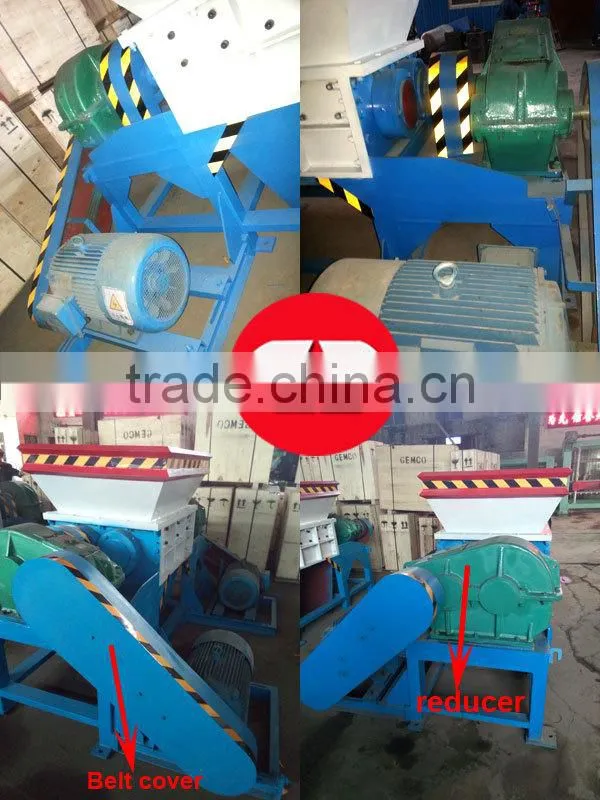

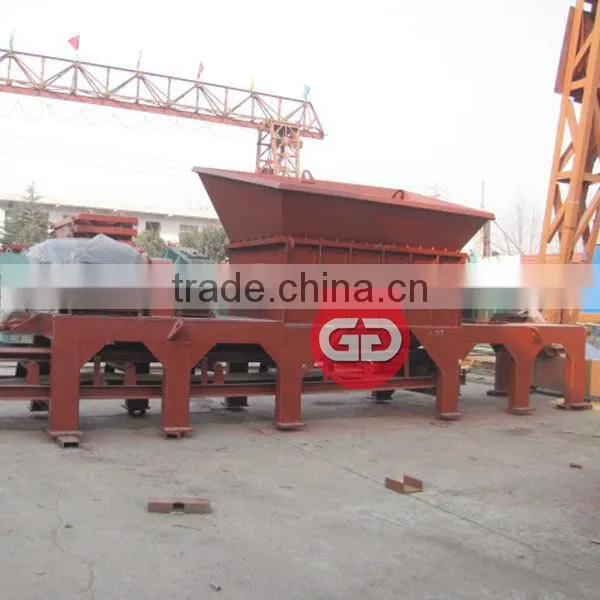

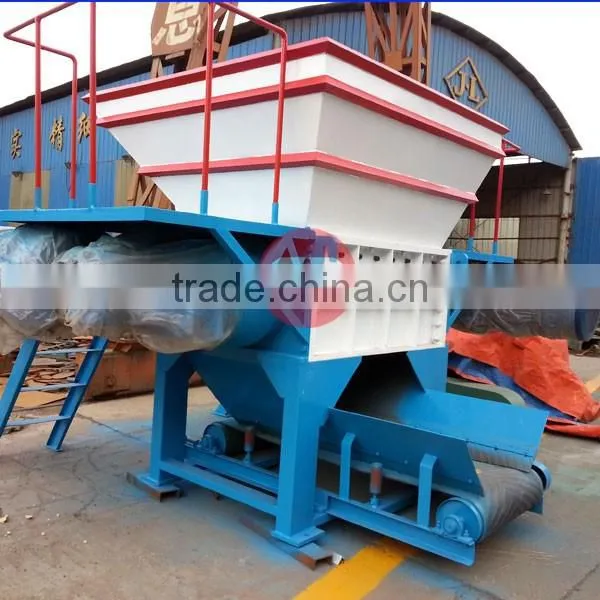

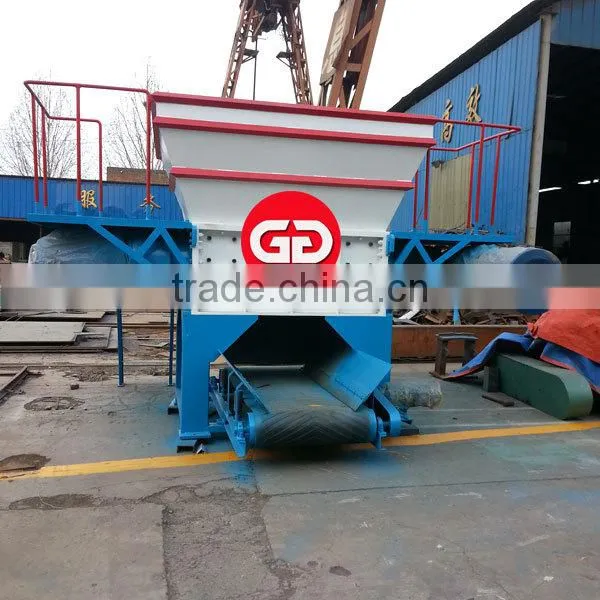

Double shaft home wood shredder without/with motors:

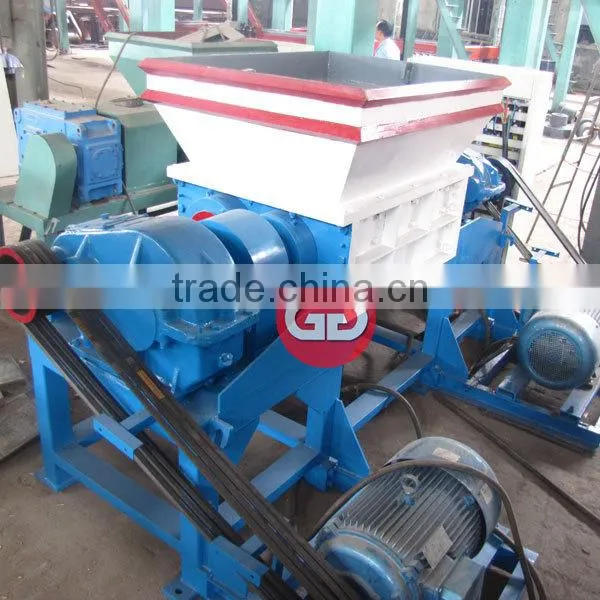

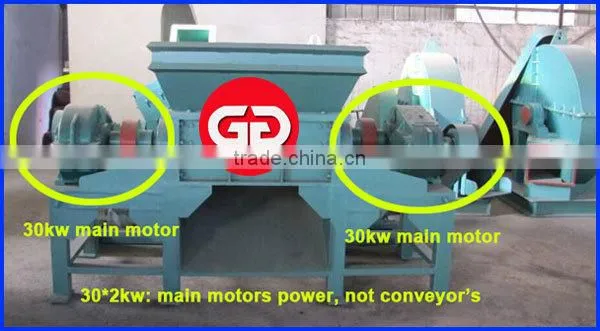

Model 1000 heavy duty wood shredder:

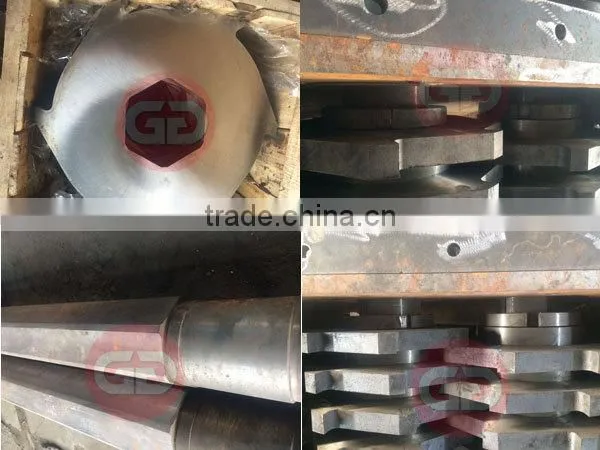

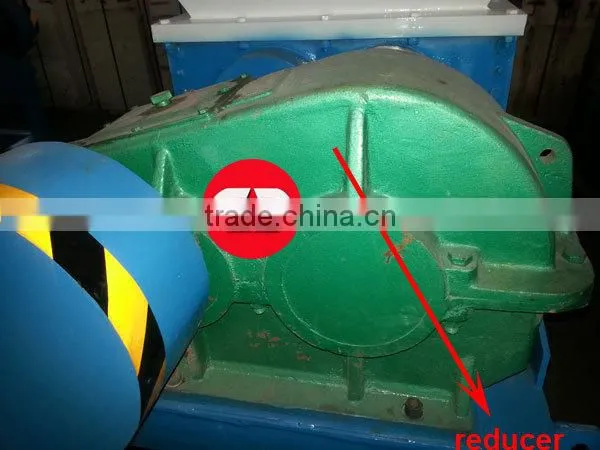

Reducer,Blades:
Our service:
1) Pre-sale Service:
Design suitable product, offer reasonable consultation and referring documents.
2) After-sale Service:On the spot guidance for installation by our enginee, and the buyer is responsible for the Expense. We have perfect after-sales service system and team with professional advice and guidance for whole using life.
3) All order will be supplied within the stipulated period.
Welcome to contact us:
Good quality, mature technology, competitive price and good after-sales service.
If you want a more competitive price and more information about our hot home wood shredder, welcome to contact us, Thanks.
