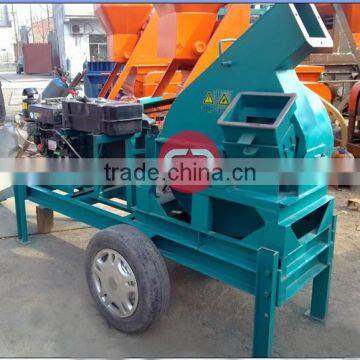

home use small chipper disc wood chipping machine
Introduction of wood chips making machine
*** Disc wood chipper (wood chipper sale) apply to pulp mill, forest field, paper factory,
and wood chip factory, etc ***
1.This series disc wood chipper adopt low-voltage motor or high-voltage motor,large
wood chipper has pulley drive and associated mode drive, feeding way is horizontal
and oblique, discharging way is top discharge and bottom discharge.
2. When cutting logs, wood chips quality is high, but also the length of wood chips
can be adjusted within prescribed scope freely.
3. For this series wood chipper production, the customer could choose the model according
to the demand.
4. This series disc wood chipper machine consists of frame, knife dish, feed port,
encloser, electric control system and other parts.
5. Our company to update the disc wood chipper series products year by year, improve
the product grade, in order to satisfy the market requirement, high quality, high efficiency,
high grade.
Advantages of wood chips making machine
* High production capacity
* Professional manufacturer
* Wood chip can adjust
* Easy operation
Specification of wood chips making machine
Model |
GD800 |
GD1000 |
GD1200 |
GD1400 |
Diameter of knife dish (mm) |
800 |
1000 |
1200 |
1400 |
The cutter head speed (r/min) |
610 |
610 |
490 |
490 |
The length of wood (mm) |
2-50 |
|||
Thickness (mm) |
2-15 |
|||
Feeding way |
Sloped down |
|||
Feeding mouth size (mm) |
200×200 |
300×320 |
330×350 |
360×370 |
Capacity (t/h) |
3-5 |
4-6 |
6-8 |
8-10 |
Motor power (kw) |
30 |
37 |
45 |
55 |
Max. diameter of raw material (mm) |
190 |
290 |
330 |
350 |
Discharging way |
Sloped up |
|||
Weight (kg) |
1680 |
2720 |
3560 |
4120 |
Overall dimension (L×W×H) (mm) |
1800*700*1200 |
2100*1000*1300 |
2200*1200*1850 |
2600 *1300 *1900 |
More pictures of wood chips making machine
Factory of wood chips making machine

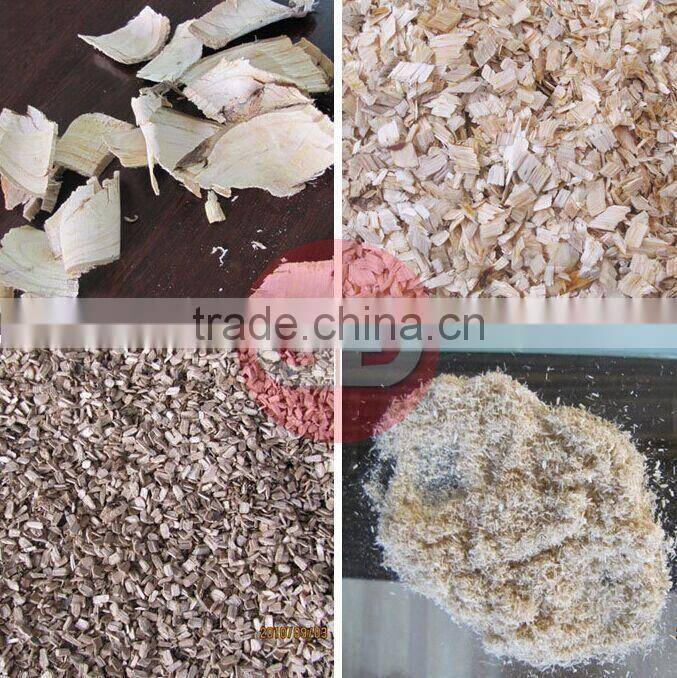

Finished Wood Chips

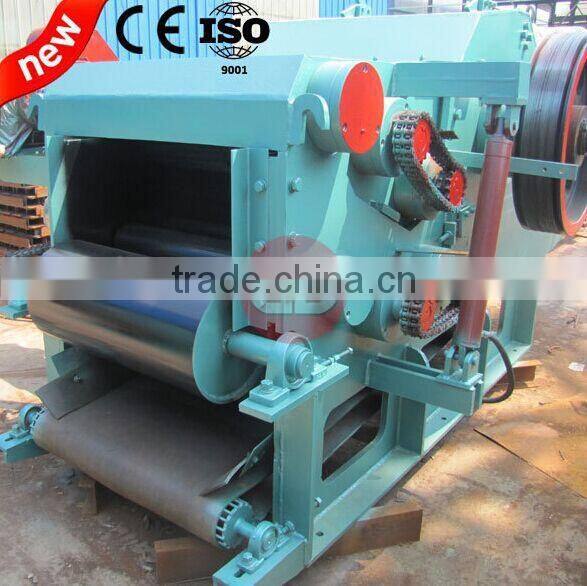

The Drum Wood Chipper (Click here)
The Automatic Disc Wood Chipper (click here)
* Standard export packing: wooden case or container
* Within 15-20 working days after deposit
How to order?
1. Send a inquiry by email or Trademanager;
2. We provide you the offer;
3. Confirm delivery time and freight operation;
4. Arrange production after 30% deposit received by T/T
5. Confirm consignee and notify party information.
6. Balance payment received and book ship arranges shipping.
7. Performa invoice, packing list and copy bill of lading sent to you.
8. Product received.
After-sale service
1.Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices;
2. 12 months warranty except for wear parts;
3. CE , ISO approved, meet with European standard.
4. Broken spare parts (except for wear parts) will be sent for free due to quality problems
Henan Guangda is a professional manufacturer and supplier of farm machinery and biomass pellet production line, has been engaging in the international trading for 14 years, 12-180hp wheel tractor, agricultural implements and biomass pellet machine are our main products, widely exported to America, Europe, Africa, Southeast Asia, with high quality standard, rigorous management measures and advanced technology, we have built up very fine reputation at home and abroad.
