Chinese Low Cost Tree Branches Wood Waste Grinder

Chinese Low Cost Tree Branches Wood Waste Grinder photo-1

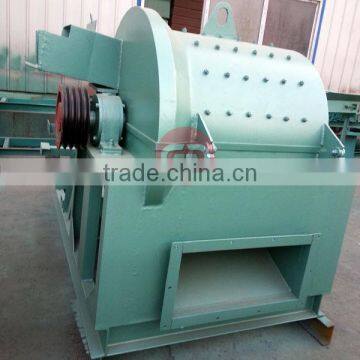

Chinese Low Cost Tree Branches Wood Waste Grinder photo-2

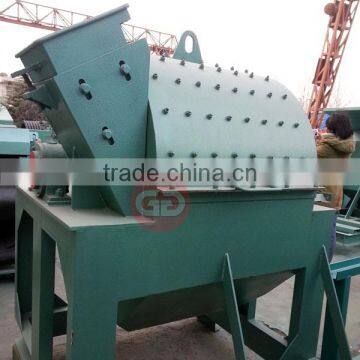

Chinese Low Cost Tree Branches Wood Waste Grinder photo-3
Chinese Low Cost Tree Branches Wood Waste Grinder photo-4
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Guangda
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao;Tianjing; Shanghai;Dalian; Alataw Pass;
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Guangda
Model Number G-D 500
Voltage 220v/380v
Power(W) 11kw
Dimension(L*W*H) 1200X700X730mm
Weight 300kg
Certification CE ISO SGS
Warranty one year after testing well
After-sales Service Provided Engineers available to service machinery overseas

Chinese low cost tree branches wood waste grinder:

Product Description

 High efficiency wood chip crusher is a special equipment of crushing timber. It is developed according to the need of industrial production and after a period of research.

Advantages

1).Wood wood chip crusher price can cut the branch and limb which diameter is below 30cm, mainly used in process pine, miscellaneous tree, poplar, fir, bamboo etc.,


2).It is more suitable for processing the sawdust of edible mushroom culture.

3).At the same time, it can chip the thatch, corn stalk, sorghum stalk and other cellulosic materials.

4).It also can used as the raw material of strains, chipboard, sawdust board.

5).It is suitable for flow work, and widely used in the preparation process of small and medium chipboard and fibreboard factory or individual household who wants to produce wood chips.




Technical Parameter



Model

500

600

800

1000

Dia. of blade(mm)

500

600

800

1000

Qty.of crushing blade(pcs)

12

32

42

52

Qty of chipping blade(pcs)

4

3

4

4

Length of blade(mm)

120

200

240

340

Dia. of oblique feeding port(mm)

150×160

   160×180

200×220

330X320

Rotating speed(r/m)

1400

1400

1200

1000

Motor power(kw)

15

18.5-22

37-45

55-75

Capacity(kg/h)

200-300

   300-1000

1000-2000

2000-3000

Weight(kg)

300

800

1400

2200

Dimension(L*W*H)(mm)

1200*700*730

1300*980*730

2000*1000*1300

2300*1750*2300



Detailed Images

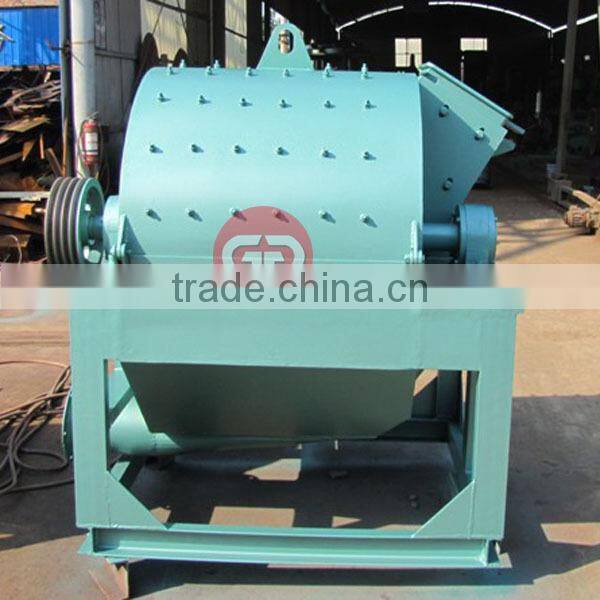

 Chinese low cost tree branches wood waste grinder



Chinese low cost tree branches wood waste grinder

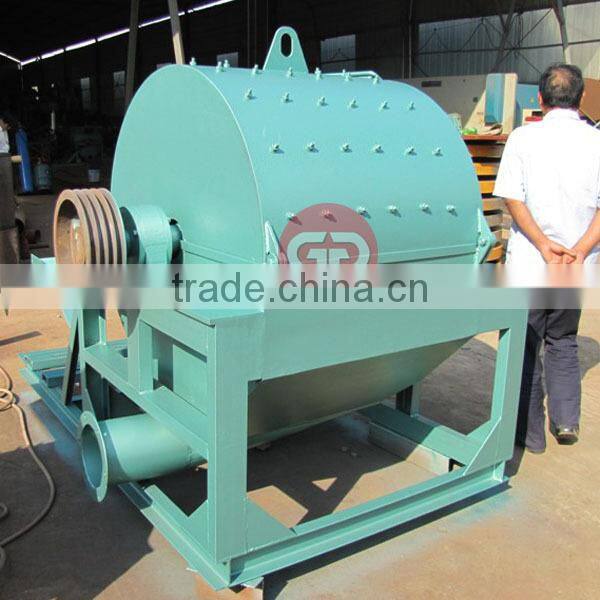

Chinese low cost tree branches wood waste grinder

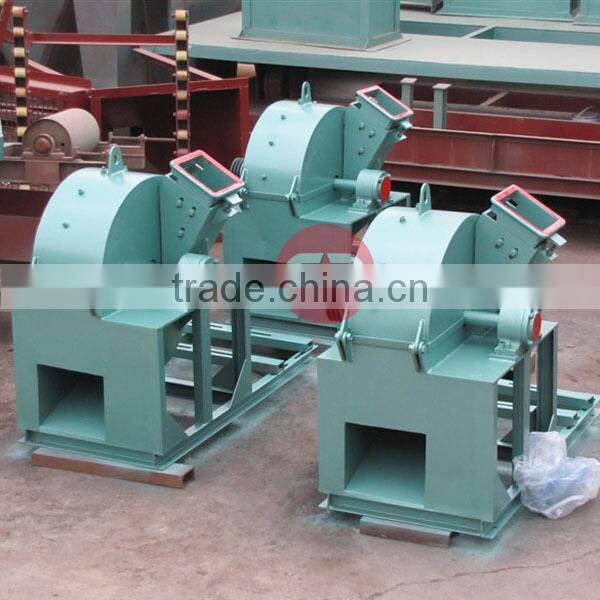

The wood chip crusher price is high efficient and to operate and maintain sawdust crusher  in the daily montainence, few workers are needed.  It only needs low input and will have a quick and high returns.

Chinese low cost tree branches wood waste grinder

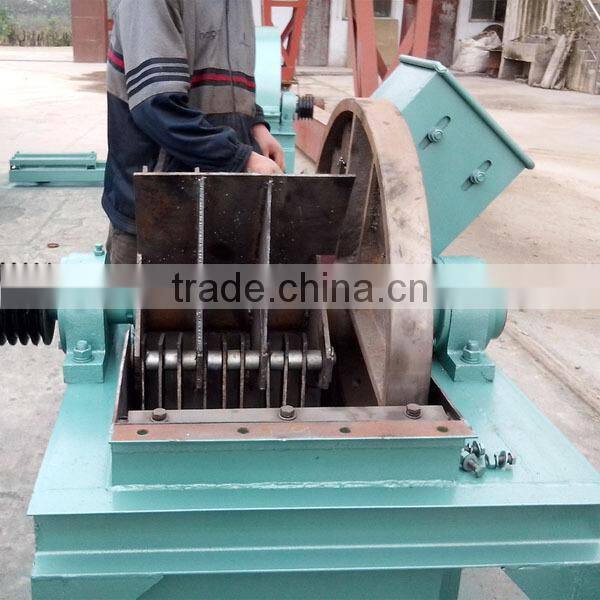

The blades of wood chip crusher price is high grade quality, whose material is the NO.12 chrome.The good quality of wood chip crusher price can guarantee the long working life and good performance in the whole production line.

Chinese low cost tree branches wood waste grinder

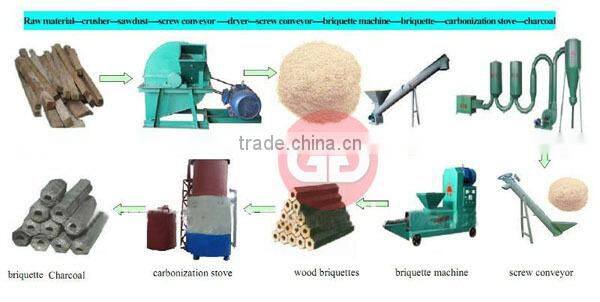

The position of wood crusher in charcoal production line:

Chinese low cost tree branches wood waste grinder



Chinese low cost tree branches wood waste grinder

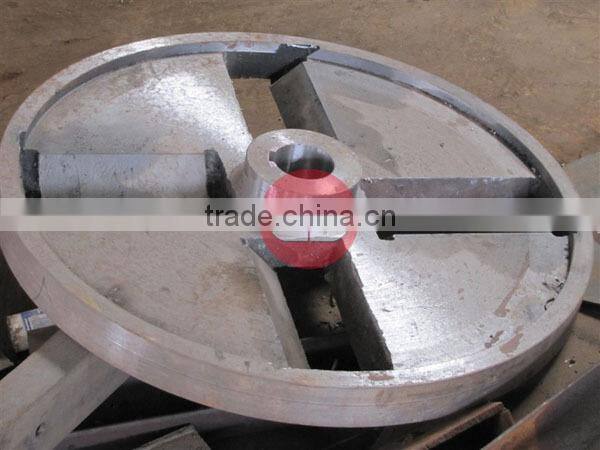

Wood crusher spare part:

The spare part of wood chip crusher price use the cast steel and NO.12 chrome as material. This material is  super fine and will guarantee the long working time and running stablely of wood crusher. It is an ideal equipment for wood crushing in wood pellet production line.

Chinese low cost tree branches wood waste grinder

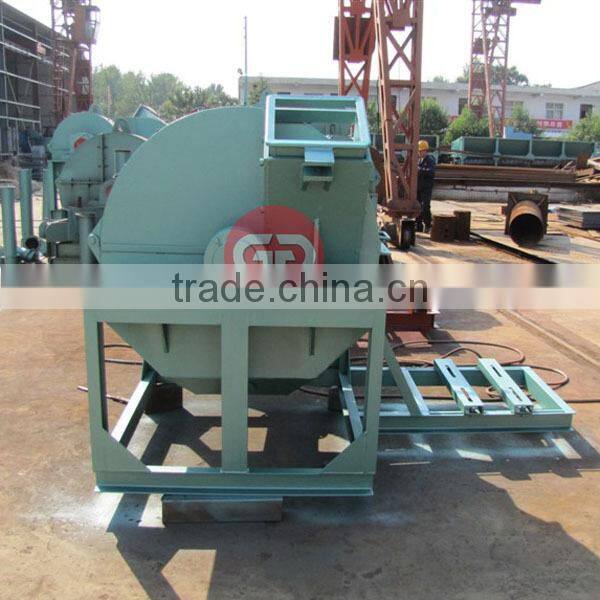

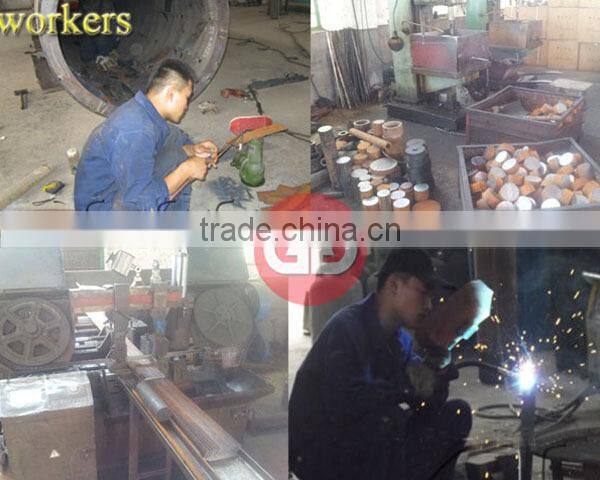

Factory processing site and warehpouse:

Chinese low cost tree branches wood waste grinder

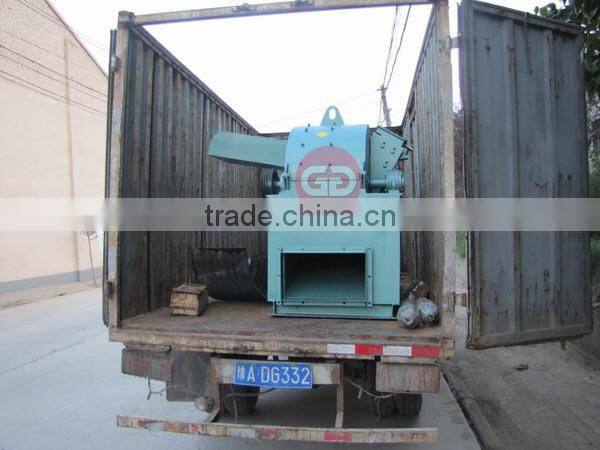

Delivery and package :

Chinese low cost tree branches wood waste grinder



Our Services
Pre-sale service
1.Recommend right machine with best price for per client, and assure our machine can work efficiently at customer side.
2. After finalizing orders, quality is strict to control to be good, send production photos for your verifying.
3. We have reliable shipping forwarders to send cargos on time.
After-sale service

12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference

Welcome to contact us:

Good quality, mature technology, competitive price and good after-sales service.

If you want a competitive price and more details, pls kindly contact us, we will try our best to satisy you!
