Home > Products > Turnkey project > chicken food extruder production line
chicken food extruder production line
- 50 Unit / Units per Month
- Shanghai; Tianjing; Qingdao;Ningbo;Dalian
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Guangda |
Model Number: | GD | Type: | Other, Feed production line | Voltage: | According to the model |
Power(W): | According to the model | Dimension(L*W*H): | According to the model | Weight: | 20000 kg |
Certification: | CE/ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
chicken food extruder production line
Introduction of Animal Feed Pellet Production Line
1.poultry feed production line is widely used to make pellets,raw material can be large
soybean straw, corn stalks,cotton stalk, sorghum, peanut vine, rape straw,sunflower
stalk, rice husk, grass, shrubs ect.
2.To meet different outputs requirements,Feeder has a variable speed controller. it can
adjust the feeding speed.
3.Stainless steel door and chute with scale line stretching cutter, the cutter easy to adjust,
and reliable
4.Pellet machine is a key equipment for producing pellet feed, with high output,good
performance,low energy consumption,low noise and beautiful appearance characters.
5.The feeding system adopts stepless speed changing motor control, adjust speed conveniently
and reliably when making pellet powder feed.
The whole line process
Capacity | 1-2tons/h | 3 tons /h | 5 tons /h | 6-8 tons /h | 10 tons/h | 15 tons/h |
Hammer mill | SWSP56.30 | SWSP56*40 | SWSP56*60 | SWSP56*60 | SWSP66*80 | SWSP112*40 |
Pellet machine | SZLH250 | SZLH32 | SZLH35 | SZLH400 | SZLH420 | SZLH508 |
Mixer | SHW1.0 | SLHY1.0 | SLHY2.0 | SLHSJ1.0 | SLHSY2.0 | SLHSJ2.0 |
cooler | SKLN11*11 | SKLN15*15 | SKLN15*15 | SKLN19*19 | SKLN19*19 | SKLN22*22 |
Rotary screener | SFJH80*2d | SFJH100*2d | SFJH100*2d | SFJH130*2d | SFJH130*2d | SFJH150*2d |
Crumbler | SSLG22*40 | SSLG15*100 | SSLG15*100 | SSLG15*150 | SSLG24*110 | SSLG24*165 |
Cooling fan | 4-72No4A | 4-72No5A | 4-72No5A | 4-72No8D | 4-72No8D | 4-72No8C |
Cooling discharger | XL60 | XL90 | XL90 | XL120 | XL120 | XL150 |
boiler | LSG-0.3-0.4 | LSG-0.3-0.4 | LSG-0.5-0.4 | LSG-1.0-0.7 | LSG-1.0-0.7 | LSG-1.0-0.7 |
Lifting equipment | TDTG26*18 | TDTG26*18 | TDTG36*23 | TDTG36*28 | TDTG36*28 | TDTG50*23 |
L*W*H(m) | 9*3.5*11 | 9*3.5*12 | 12*4.2*13.5 | 12*4.5*14 | 13.5*4.8*14 | 15*5.5*17 |
1. the raw materials
Before going into the main equipments,the raw materials should be cleaned to remove
impurities and iron parts in order to ensure the product quality and normal working of
the main equipments.
As customer’s requirement, we can offer corresponding animal feed pellet machine to
match thesize of raw material.
2.Hammer mill
Some kinds of raw materials should be grinded to small pieces. We use hammer mill to
grind raw materials into small particle. Hammer mill is suitable for coarse-grinding and
micro-grinding of various granular grain materials, such as corn, sorghum, rice, wheat,
soybean meal, cottonseed meal, rapeseed meal, etc.
3.Mixer
Using mixer to mix the grinding raw materials to even particles. The mixer have two
types: single shaft ribbon mixer and double shaft paddle mixer.
4. Pellet mill
Using pellet mill to make pellet. It is equipped with feeder, conditioner and pellet mill.
The feeder can control the feeding amount. Conditioner can make moisture and
temperature of the feed more high, to make pelleting easily.
5.Cooler
After cooling, the pellet temperature is no more than 3-5 ℃ of room temperature,
suitable for cooling of all kinds of pellets, large scope of raw material, such as corn,
wheat, straw, grass, etc.
6. Crumbler
Crumbling section is optional. When required pellet is small, can use crumbler to grind,
such as chick feed.
7. Screener
The sieve filters the pellets according to size during the movement. So it is important
to use exact size ofsieve pore and adopt feat speed. We use rotary screener to sieve
the pellet. It has three layers sieves.
9.The final pellet

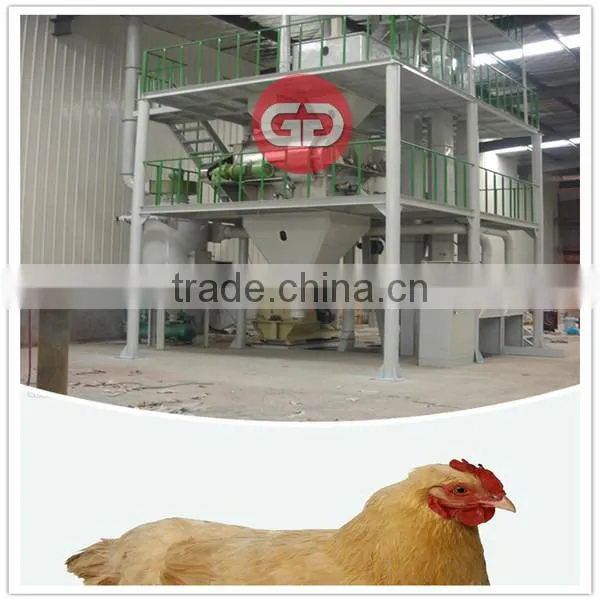

The Animal Feed Pellet Production Line
*Standard export packing: wooden case or container
*Within 15-20 working days after deposit
How to order?
1. Send a inquiry by email or Trademanager;
2. We provide you the offer;
3. Confirm delivery time and freight operation;
4. Arrange production after 30% deposit received by T/T
5. Confirm consignee and notify party information.
6. Balance payment received and book ship arranges shipping.
7. Performa invoice, packing list and copy bill of lading sent to you.
8. Product received.
After-sale service
1.Guide customers to choose the best suitable machine model, offer detailed
specification and competitive prices;
2. 12 months warranty except for wear parts;
3. CE , ISO approved, meet with European standard.
4. Broken spare parts (except for wear parts) will be sent for free due to quality
Problems.
Henan Guangda is a professional manufacturer and supplier of farm machinery
and biomass pellet production line, has been engaging in the international trading
for 14 years, 12-180hp wheel tractor, agricultural implements and biomass pellet
machine are our main products, widely exported to America, Europe, Africa,
Southeast Asia, with high quality standard, rigorous management measures and
advanced technology, we have built up very fine reputation at home and abroad.
Thank you for choosing us~
What I offer you is not only the product,but also the perfect service~
