Mini Walking Tractor Easy to Operate

Mini Walking Tractor Easy to Operate thumbnail-1
Mini Walking Tractor Easy to Operate photo-1
US$ 900 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Henan Guangda Textiles Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Other, Farm tractor,gardentractor,lawn tractor
Drive Type Gear Drive
Power(W) 9-13kw
Certificate Other, CCC,ISO
Brand Name GUANGDA
Model Number R180NL,R190NL
After-sales Service Provided No overseas service provided

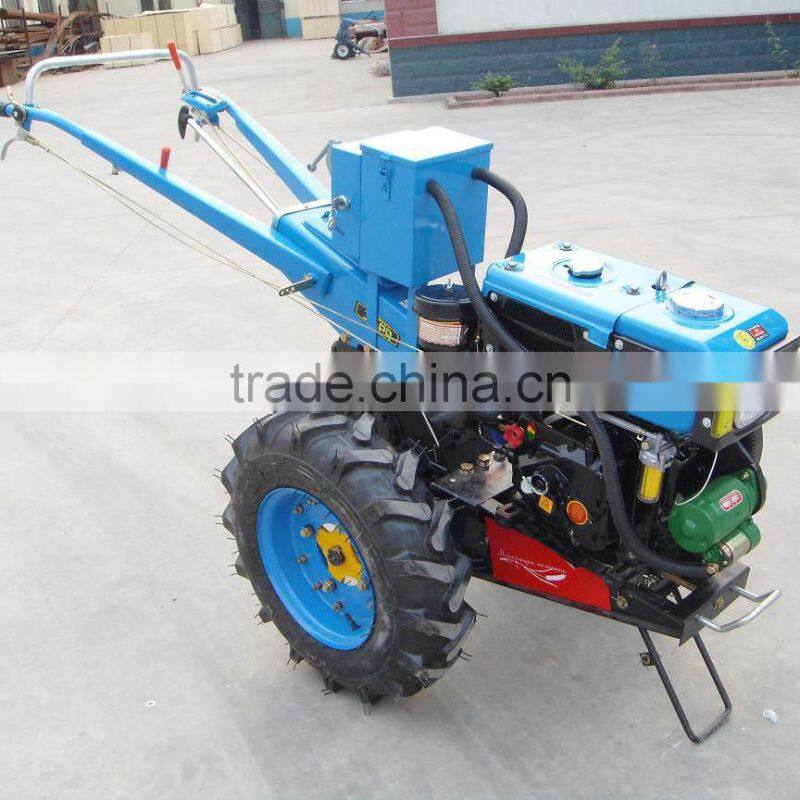

mini walking tractor easy to operate

Water cooled engine
Hand or electric starter
Options: belt safety cover and mud fender
For road cleaning and agricultural farming, multifunctional walking tractor



Product Description

 Structure light

Easy maintenance
Horizontal type engine
Used for flatlands, mountain area, hills, paddy field and dry farmland
















































































Technical data:

Engine

parameters

Model

R180NL

R190NL

Type

Single, horizontal, water cooling, four stroke

Displacement(L)

0.402

0.573

Oil consumption (g/kw.h)

278.8

265.2

Engine Oil Consumption  (g/kw.h)

3.4

3.8

Rated power (kw/hp)

1 hour

6.18/8.4

7.7/10.5

12 hour

5.15/7

7/9.51

Rated speed (rpm)

2600

2300

Overall Dimension (mm)

2120×840×1160

Ground Clearance (mm)

210

Wheelbase(mm)

680~740

Weight (kg)

260

Semi-axis (cm)

340

Weight in use(with oil , water, tools) (kg)

350

Tire Model

6.00~12

Tire Pressure

Field Work

100~120(1.0~1.2

Transportation Work

180~200(1.8~2.0

Power Connection

Two B1750 V Belts

Gear

1

2

3

4

5

6

Reverse1

Reverse2

Speed (km/h)

1.68

2.61

4.22

6.79

10.57

17.08

1.29

5.22

Traction (N)

1800

1800

1800

1800

1800

1800

_

_

Tiller type

Middle gearbox transmission

Tiller width (mm)

900

Seat

Available

Number of rotary blades (pcs)

16-18pcs







Packaging & Shipping

Transportation solutions for tractor



Our Services
Pre-sales Service online for 24hours to wait for your inquiry
Sale tracking

Provide specification, photos, and delivery cost for you.

Answer your questions and solve your problems at any time.
After-sale service

12months warranty for the machine without wearing parts.

We will deliver damaged parts (except wearing parts) for free based on quality problem within warranty period.

Wearing parts are also sold to match your machine if needed.
After-sale service process

If some parts damaged, please take photos and shoot video firstly, please send us in time.

We will pass your problems to our after-sale department to deal with.

Solution will be provided for you as soon as possible.
Company Information

Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.
