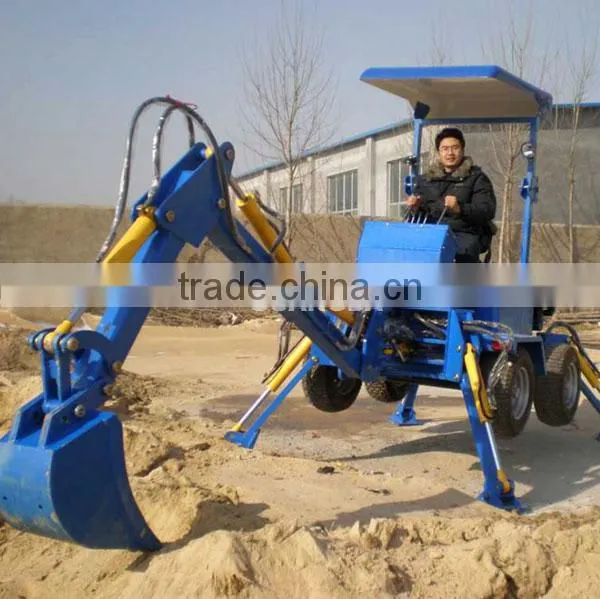

CE approved RXDL-22 tractor mini backhoe
- 3 point linkage backhoe attachment
- Side shift boom

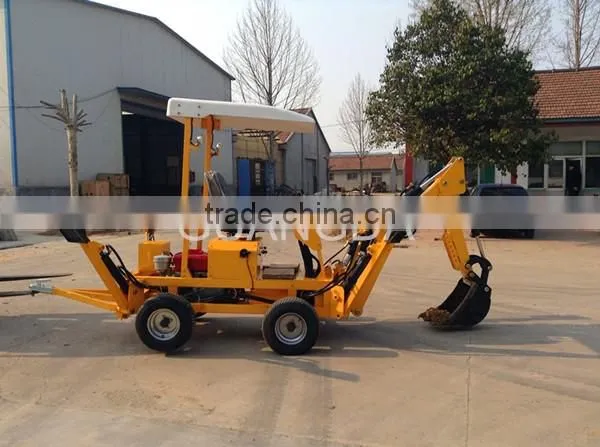

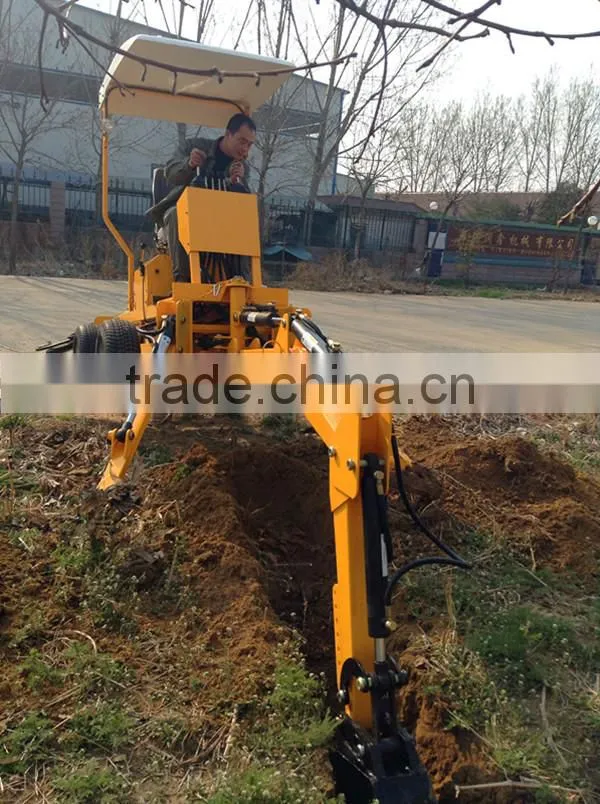

- Towable backhoe with self engine
type |
two wheels, four stabilizers |
||
power |
22HP changchai diesel engine |
||
start type |
electric start |
||
length(mm) |
chassis |
2110 |
|
height(mm) |
to canopy |
2150 |
|
width(mm) |
stabilizers down |
2755 |
|
|
stabilizers up |
1300 |
|
Min ground clearance |
(mm) |
230 |
|
Net weight (kg) |
800 |
||
excavating parameters |
Max. excavating depth mm |
1850 |
|
|
Max. excavating height mm |
2500 |
|
|
transporting height mm |
1900 |
|
|
Max. excavating radius mm |
3000 |
|
|
angle of scoop swing (°) |
160 |
|
|
bucket width mm |
200/300/400 |
|
|
bucket capacity |
||
Related products
Model |
LW-6E |
LW-7E |
LW-8E |
LW-10E |
Matched power (hp) |
20-35 |
30-55 |
50-90 |
70-120 |
Max. digging depth (mm) |
2000 |
2400 |
2800 |
3200 |
Max. unloading height (mm) |
1860 |
2050 |
2380 |
2650 |
Max. digging height (mm) |
2970 |
3210 |
3460 |
3770 |
Working radius (mm) |
2700 |
3140 |
3600 |
3920 |
Ground clearance (mm) |
450 |
450 |
500 |
500 |
Side shift distance (mm) |
770 |
770 |
1000 |
1200 |
Min. transporting width (mm) |
1470 |
1470 |
1700 |
2000 |
Max. width of supporting legs (mm) |
1470 |
1470 |
1700 |
2000 |
Bucket width (inch) |
14 |
16 |
18 |
20 |
Bucket capacity (m3) |
0.04 |
0.05 |
0.06 |
0.07 |
Weight (kg) |
600 |
620 |
700 |
1000 |
PTO hydraulic system |
6/8/21 splines for options |
|||
Thumb Grab |
Options |
|||

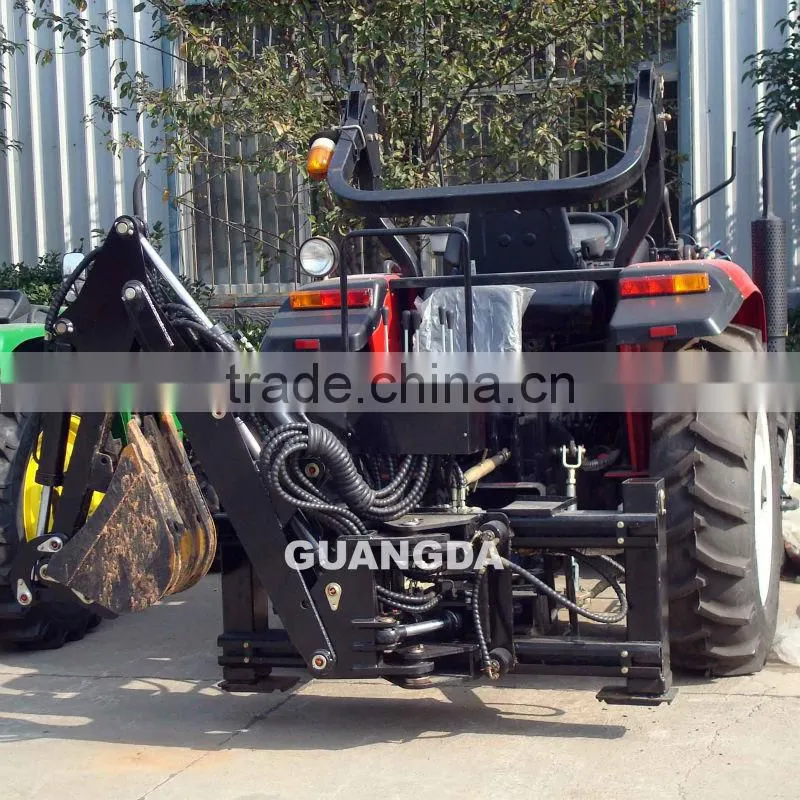

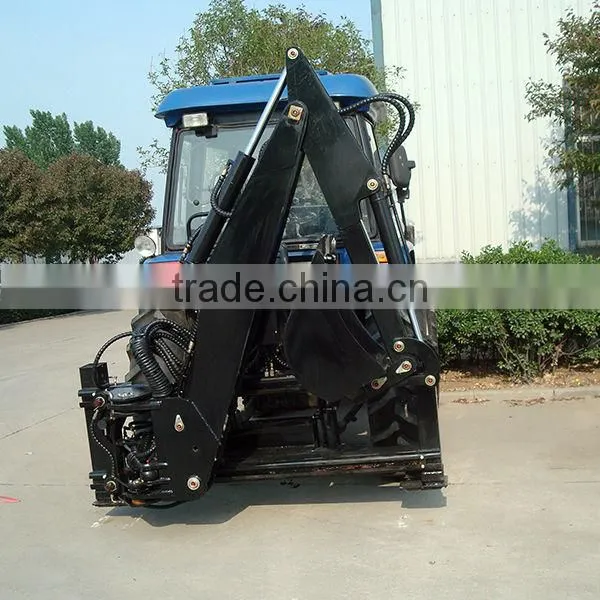

GX backhoe loader for tractor (3 point hitch)
1. Spool of backhoe loader operating valve is imported from Italy, excellent control performance.
2. Swing angle:180 degree.
3. With camber beam, the operation is more flexible, smaller size is easier for transportation.
4. Rear safety rack device, more steady, avoid shaking and swing when working.

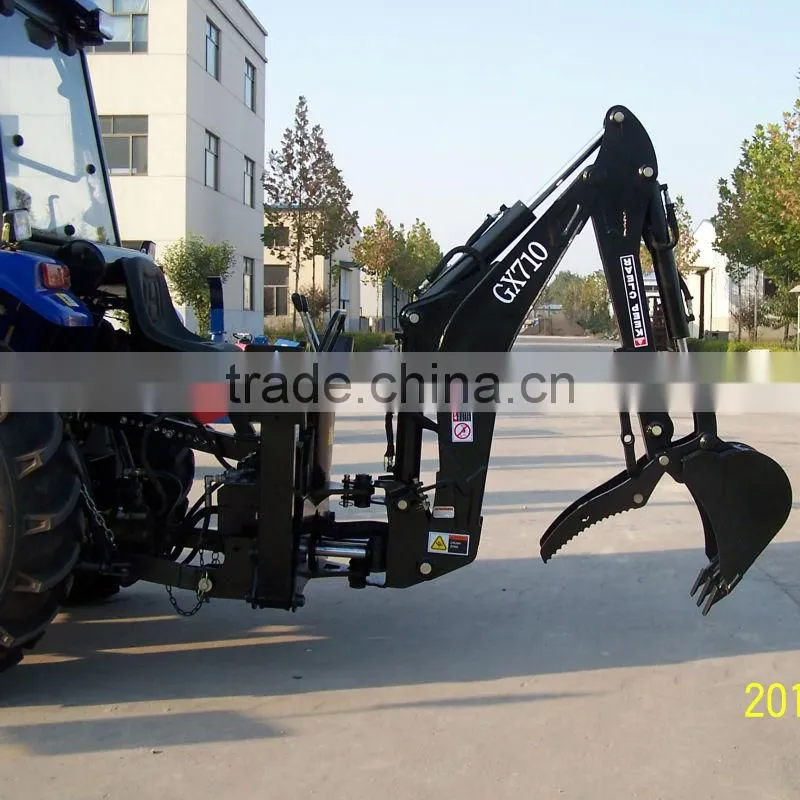

GX Excavator | ||||
specifications |
GX610 |
GX710 |
GX910 |
|
A |
Transport Height (with boom fully retracted) |
63" |
79" |
92" |
Loading Height(bucket at 60 rotation) |
62" |
80" |
89" |
|
B |
Ground Clearance |
10.5" |
10.5" |
10.5" |
C |
Transport length |
68" |
80" |
81" |
D |
Digging Depth(2ft,flat bottom) |
6'1" |
7'1" |
9'1" |
E |
Overall Operating Height(fully raised) |
92" |
119" |
135" |
F |
Reach from Swing post |
98" |
120" |
138" |
G |
Bucket Rotation |
180° |
180° |
180° |
Swing Arc |
180° |
180° |
180° |
|
Stabilizer Width(speed) |
74" |
89" |
89" |
|
Stabilizer Width(Transport) |
40" |
42.5" |
42.5" |
|
Operating Pressure |
1800psi |
2250psi |
2250psi |
|
Hydraulic Volume Requirements |
5-7 gpm |
5-7 gpm |
7-9 gpm |
|
Recommended Tractor HP |
15-25HP |
22-65 HP |
45-100 HP |
|
Bucket Sizes Available |
10,12,16,18 |
10,12,,14,16,18,20,22 |
9,12,16,18,20,24 |
|
|
3-Point Hitch
|
Cat I(PT2020) (RT3012) |
Cat I(PT2020) (RT3016) Cat II(PT2022)(RT3016) |
Cat I(PT2020) (RT3016) Cat II(PT2022)(RT3016) |
|

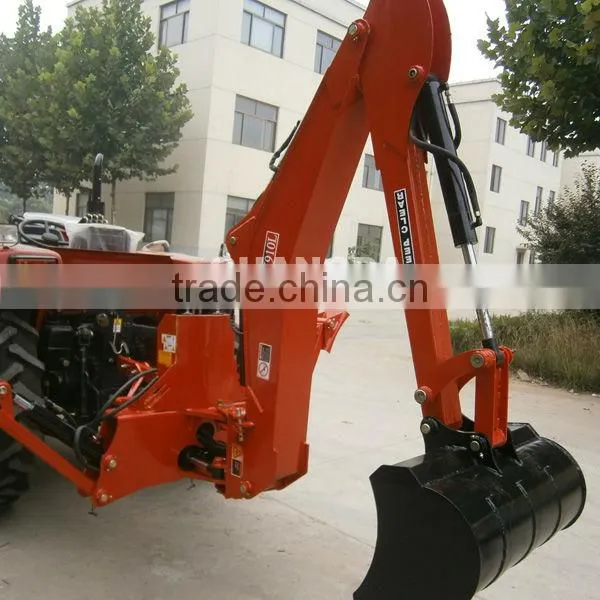

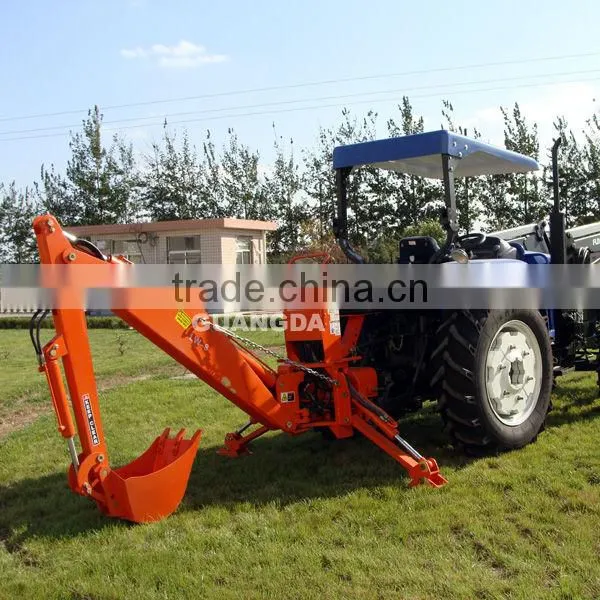

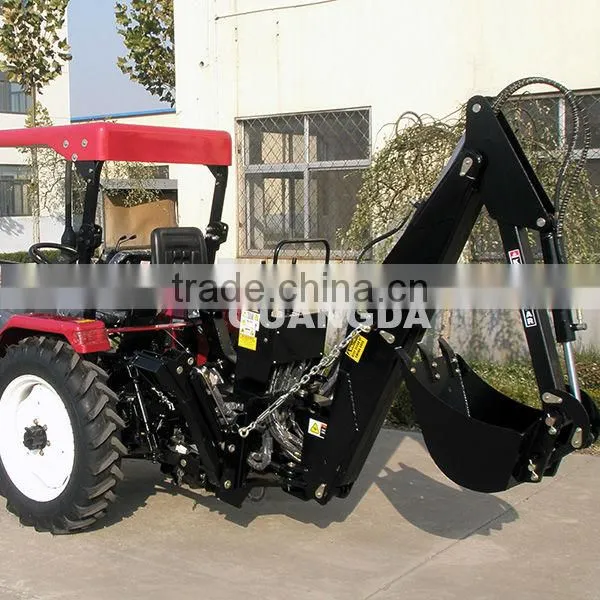

LW backhoe loader for tractor (3 point hitch)
• 3 Point fits most tractors with a Category 1 Hitch.
• Optionable Bucket sizes 10"-22" are all interchangeable for backhoe loader.
• Reservoir Tank with Filter is optional for LW tractor backhoe loader.
• PTO Pump and gear box.
• Color's are Black or Red, paint is powder coated
Model |
LW-5 |
LW-6 |
LW-7 |
LW-8 |
LW-9 |
Horsepower Range |
16-25 |
20-35 |
25-45 |
60-100 |
65-125 |
Overall size |
1550×1480×2130 |
1550×1480×2130 |
2000×1860×2500 |
2140×1860×2800 |
2300×1750×2800 |
Max. digging depth(mm) |
1720 |
1850 |
2150 |
2640 |
2900 |
Max. digging radius(mm) |
2560 |
2800 |
3360 |
3930 |
3977 |
Max. digging height(mm) |
2200 |
2500 |
3400 |
3510 |
3900 |
Discharging height(mm) |
1300 |
1400 |
1760 |
2000 |
2362 |
|
Max. digging depth(2ft) Flat bottom(mm) |
1600 |
1600 |
2000 |
2500 |
2760 |
Swing Angle(.) |
140 |
140 |
140 |
140 |
160 |
Bucket Rotation(.) |
160 |
160 |
160 |
160 |
150 |
Operating Digging Force(KG) |
16mpa |
16Mpa |
16Mpa |
16Mpa |
16Mpa |
Dipper stick Digging Force(KG) |
520 |
790 |
950 |
1000 |
1270 |
Shipping Weight(approx)kg |
410 |
470 |
540 |
600 |
820 |
Bucket size and Cap. | ||||||
Size(mm/inch) |
250/10 |
300/12 |
400/16 |
450/18 |
500/20 |
550/22 |
Cap.(m3) |
0.03 |
0.036 |
0.048 |
0.054 |
0.06 |
0.066 |

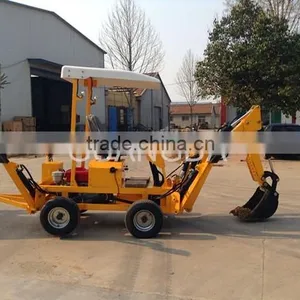

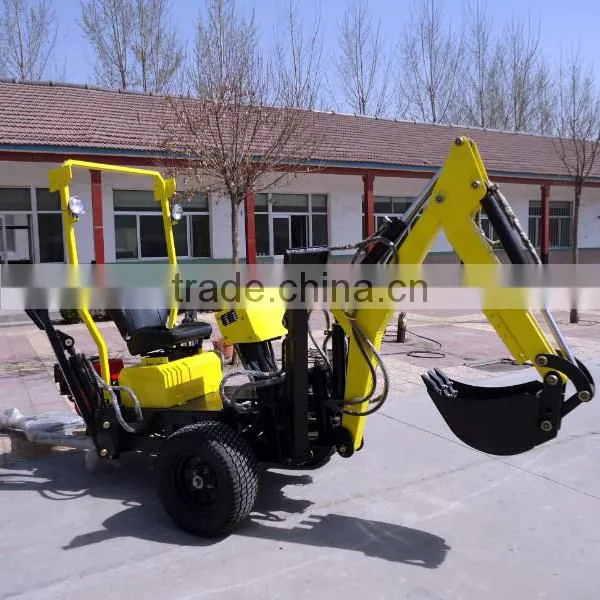

Heavy duty wheel backhoe loader
Model |
TB-6 |
|
Type |
Mini excavator |
two wheels, four stabilizers |
Power |
13hp Gas engine or 18hp/ |
|
Start type |
electric start |
|
Length (mm) |
chassis |
2110 |
Height (mm) |
to canopy |
2150 |
width (mm) |
stabilizers down |
2755 |
stabilizers up (width between two wheels external side) |
1300 |
|
Min. ground clearance |
(mm) |
230 |
net weight (kg) |
800 |
|
excavating parameters |
Max. excavating depth mm |
1850 |
Max. excavating height mm |
2500 |
|
transporting height mm |
1900 |
|
Max. excavating radius mm |
3000 |
|
angle of scoop swing |
160 |
|
bucket width mm |
200,300,400 |
|
bucket capacity (stere) |
0.03,0.04,0.05 |
|
24hours online to ensure quick response to customers' inquiry or online message
guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery

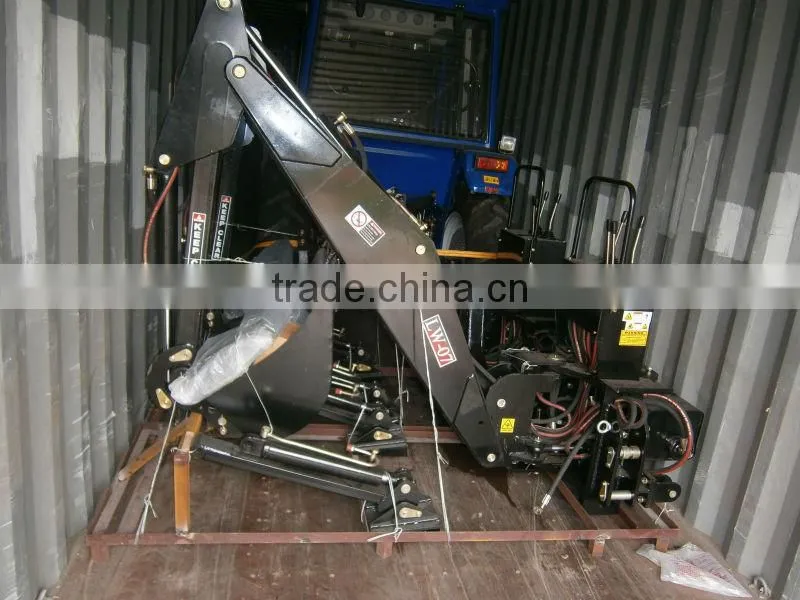

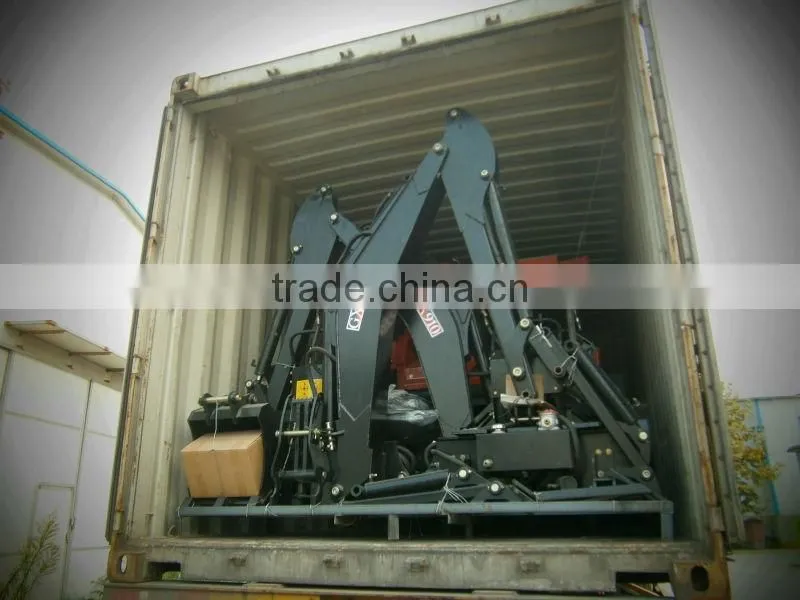

Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference
Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.
1. 12 months warranty since machine arrives destination port
2. T/T (Telegraphic transfer) payment: 30% as deposit, 70% balance payment shall be paid before delivery
3. Delivery time: 20 working days after confirmation of deposit
4. Loading: 1*20GP/ 2sets, 1*40HQ/4sets
5. Logo: can be customized and it is for free!
6. Technical service offered whenever you are in need
