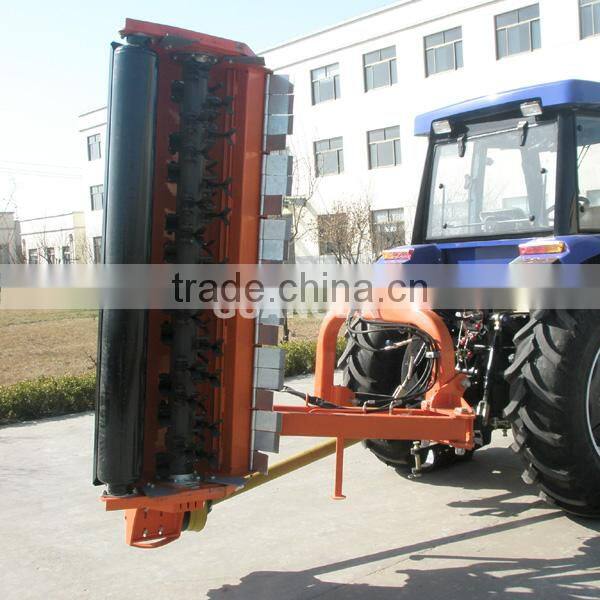

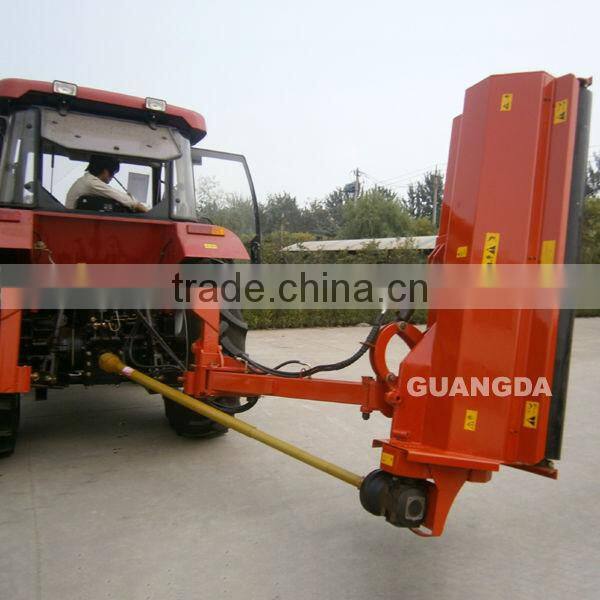

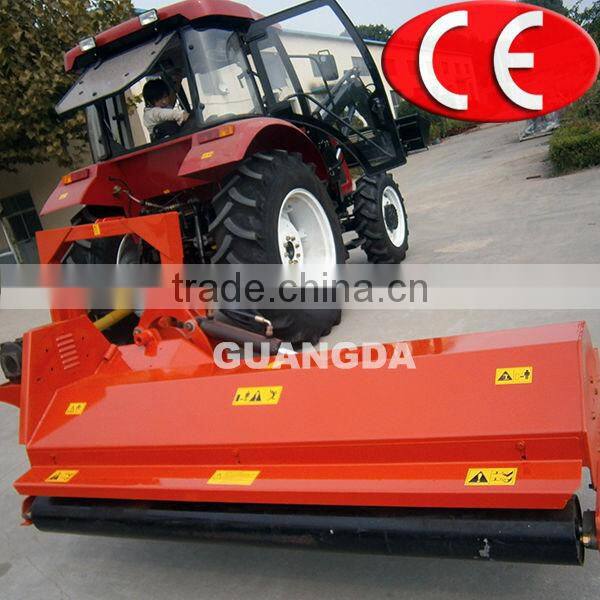

Side cutting 3 point flail mower

Specifications

Side cutting 3 point flail mower

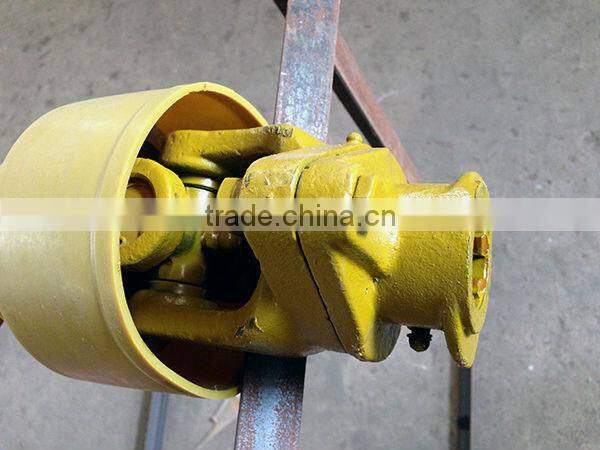

PTO driven mower
3 point flail mower with hammer and Y blades

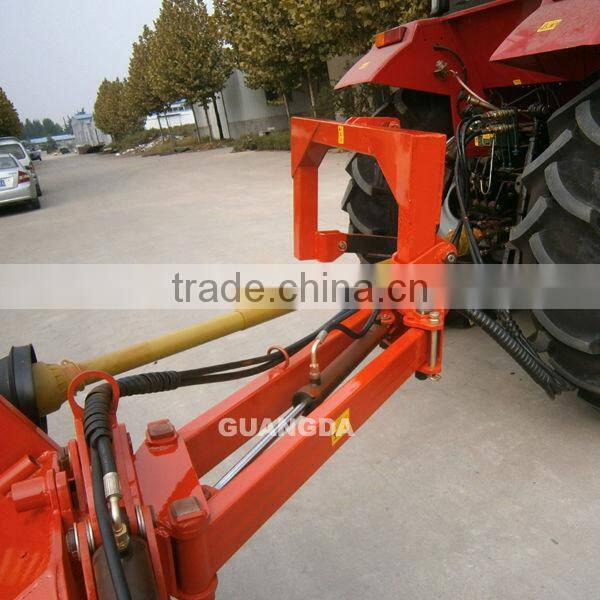

Moveable head

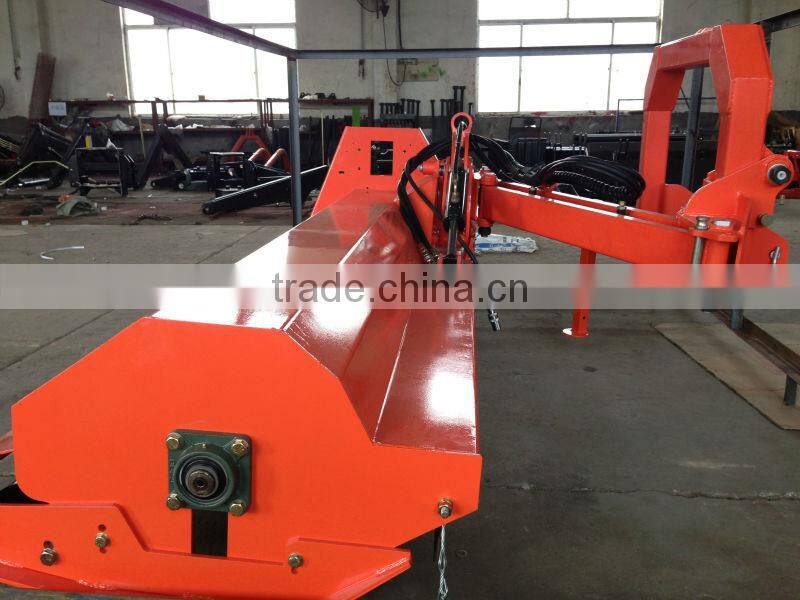

Side cutting 3 point flail mower



Self contained hydraulic system driven from tractor PTO



Heavy duty blades for mower



Safety break mechanism is optional





Because of its moveable head, it is very useful in cutting material on banks and ditches and on all other uneven terrains. It is purposed for intensive work. Very useful equipment is a mechanic breakaway to prevent the machine against damage when run into obstacles.



Model	gearbox	Cutting width	Blades NO. (Y/N type)	Weight	Tractor power
SFS-105	35hp	1050mm	40/24	195kg	25-50hp
SFS-125		1250mm	48/28	220kg
SFS-155	60hp	1550mm	56/32	445kg	60-80hp
SFS-170		1750mm	64/36	480kg
SFS-185		1850mm	72/40	520kg	70-100hp
SFS-200		2000mm	80/44	555kg
SFS-220		2200mm	88/48	590kg	80-125hp

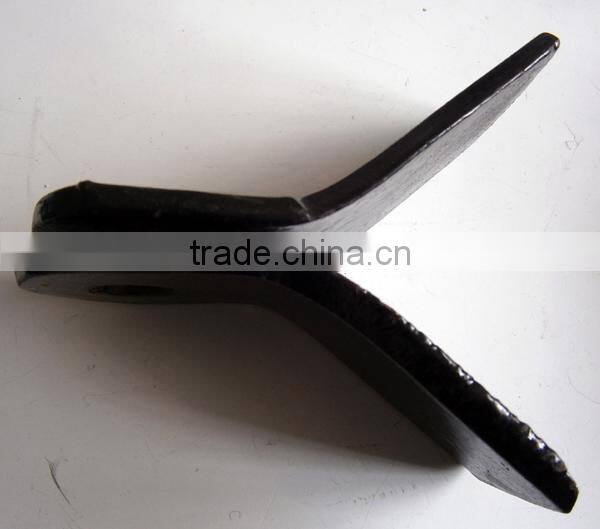

"Y" type blades for the tractor mower



Safety break mechanism for optional







Pre-sales	Service online for 24hours to wait for your inquiry
Sale tracking	Provide specification, photos, and delivery cost for you. Answer your questions and solve your problems at any time.
After-sale service	12months warranty for the machine without wearing parts. We will deliver damaged parts (except wearing parts) for free based on quality problem within warranty period.     Wearing parts are also sold to match your machine if needed.
After-sale service process	If some parts damaged, please take photos and shoot video firstly, please send us in time. We will pass your problems to our after-sale department to deal with. Solution will be provided for you as soon as possible.



Henan Guangda is a professional manufacturer and supplier of farm machinery, has been engaging in the international trading for 14 years. 12-180hp wheel tractor, agricultural implements and forest machinery are our main production, one-stop service is our main feature. Products are widely exported to North America, Europe, Africa, South America and Southeast Asia. Featuring high quality standards, rigorous management measures and advanced technology, we have built up very fine reputation among both domestic and overseas customers.



1.    Delivery time: 30 days after the down payment

2.    Payment term: By T/T (30% deposit in advance, 70% balance before delivery).

3.    Free accessories: Easy damage parts and toolbox provided for free

4.    Technical documents: Technical files, manual, documents and certificates are provided together

5.    Warranty: 12 months after the goods delivery your port

6.    Tractor color: As per request

7.    Logo: Can stick your logos for free if needed







Related products

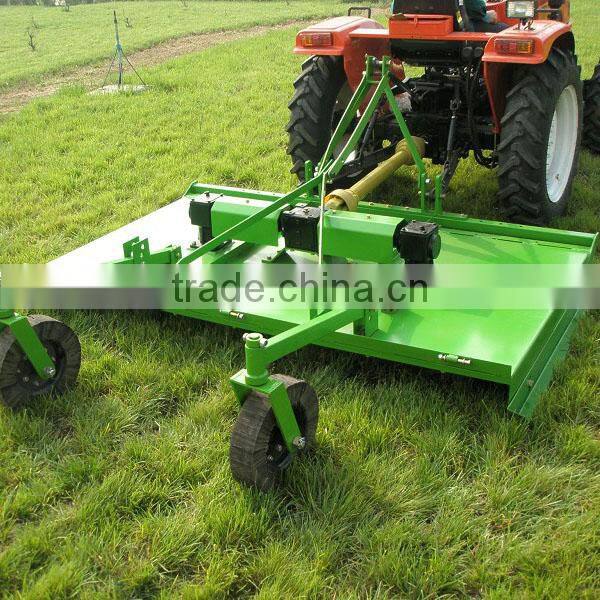

Slasher/ Topper mower, please click here	Scythe mower/ mower with rake, please click here

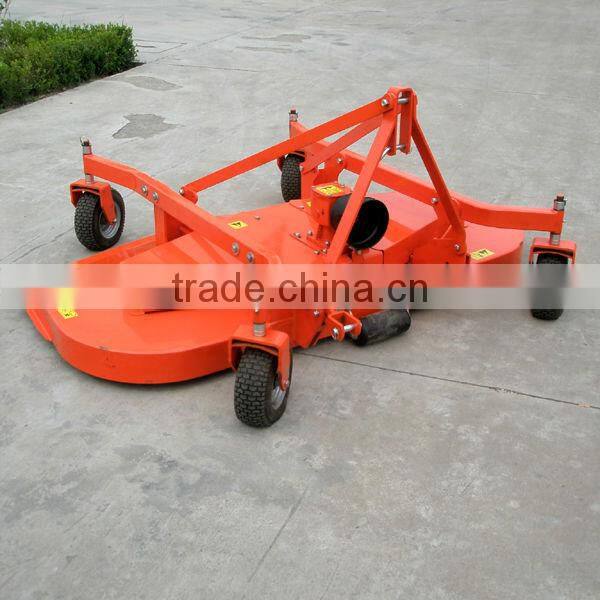

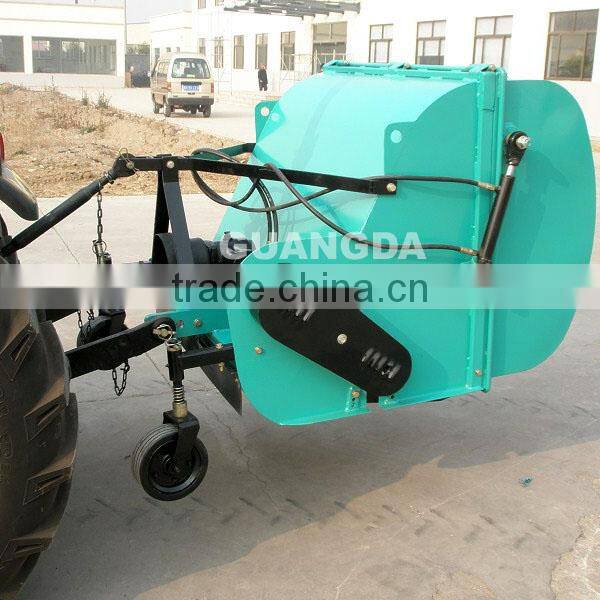

Save mower with collector, please click here	Finishing mower, please click here

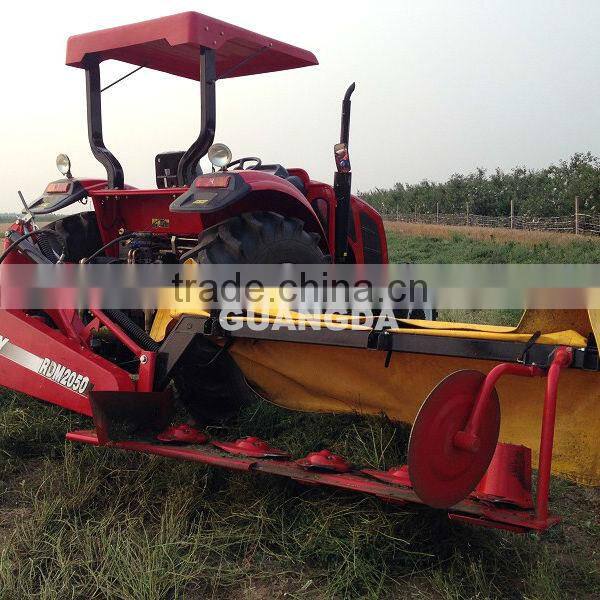

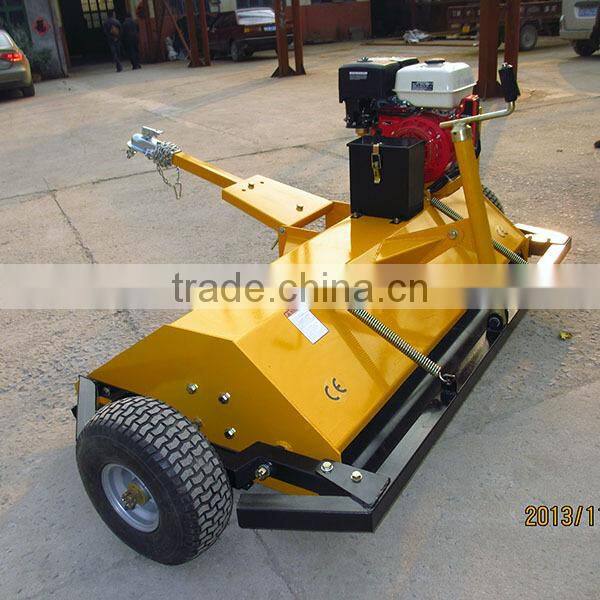

Disc mower, please click here	ATV mower, please click here
