Ring die feed pelletizer best price cattle feed pellet machine
ring die pellet machine;animal feed pellet machine;poultry feed pellet machine;pellet mill;
pet feed pellet machine;feed pellet making mill;fish duck pig cattle chicken feed pellet mill.
1.Introduction of animal feed pellet machine
Ring die animal feed pellet machine is widely used to produce feed pellets for many kinds
animals, for example, cattle, carp, chicken, sheep, pig, horse, and other poultry and livestock
animal. The pellets by our machine have firm and smooth structure and to digest.
* It is suitable for home using or small enterprises producing biomass pellet fuel or feed .
* It can be configured to electricity power.
* It is mobile flexible and simple operation.
* It is high energy efficiency , capacity ranges from 1T to 18T per hour,
clean and environment protected.
animal feed pellet making machine
Model |
SZLH25 |
SZLH32 |
SZLH35 |
SZLH40 |
SZLH420 |
SZLH508 |
Power of main motor(kw) |
22 |
37 |
55 |
90 |
110 |
160 |
Power of conditioner(kw) |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
Yield(t/h) |
1~2 |
2~4 |
2~6 |
3~8 |
4~12 |
4~18 |
Diameter of ring die(mm) |
250 |
320 |
350 |
400 |
450 |
508 |
Feeder power(kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
Size of finished pellets(mm) |
1.5~12 |
1.5~12 |
1.5~12 |
1.5~18 |
1.5~18 |
2~18 |
Note:
1.For pig, the pellet diameter is usually ø3.5-6.5mm.
2.For cattle, the pellet diameter is usually ø4.5-8mm.
3.For chicken, pellet diameter is usually ø3.2mm.
4.For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
5.For shrimps, pellet diameter is usually ø1.0-ø3.5mm.
Model SZLH25 feed pellet machine:
Advantages of animal feed pellet machine
1. High quality,high efficiency,low noise
2. High yield, easy operation, save labor
3. Stable pelleting, durable, good after sales service
4. Widely use:
1).For wood pellets use
This series flat die wood pellet mill can be used for producing wood pellets and biomass pellets.
Wood pellets are made of all kinds of wood waste. Biomass pellets are made of peanut sheller,
corn stalk and other biomass materials.
2).For feed pellet use
The compressed straw piece is suitable to be used as fuels and feedstuff of animals, such as
horse, sheep, deer, pig, chicken, etc. Such machines are suitable for large farms, and organic
herbal medicine and chemical industry etc.
Model SZLH 420 animal feed pellet mill
Model SZLH508 animal feed pellet mill:

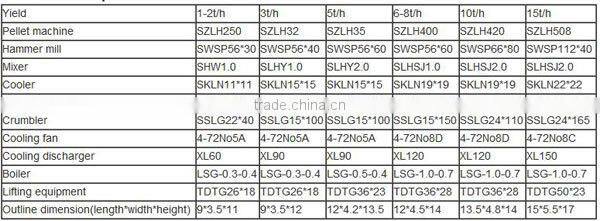

Technical data for complete animal feed pellet production line:

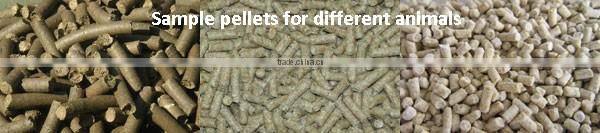

Final Pellets made by our ring die animal feed pellet mill:
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
Accessories can be offered in the whole life service.
In time response to customers technical problems
New products update for customers' reference
Good quality, mature technology, competitive price and good after-sales service!
If you want a competitive price and more details, pls kindly contact us, we will try our best to satisfy you!
