Specifications
1. easy to operate2. durable and high quality
3. exported to many places

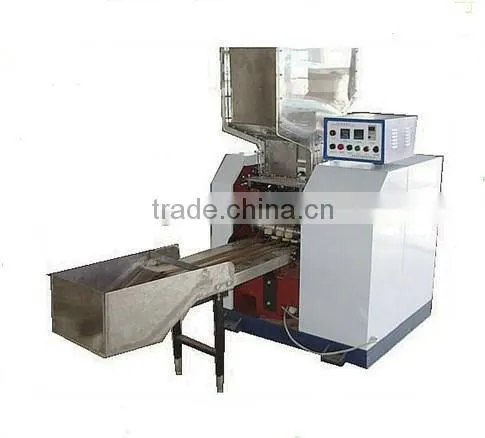

OR-029 series full automatic spoon-shaped straw making machine
Description

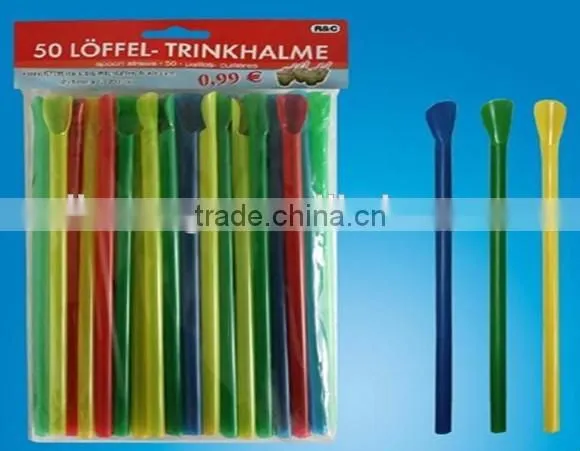

029 series full automatic spoon-shaped straw making machine is a kind of equipment used to produce spoon-shaped drinking straw. The whole equipment is fully automatic from input to output, and only straight
straw materials need to be added manually. The polypropylene straight straw is added from the upper part of the moulding machine, then clamped and sent by two groups of machine hands to the main rotary table of the equipment.The main rotary table will rotate to make the straw pass the impact-cut device and spoon-scalding device.Then, the straw will be conveyed by a machine hand and the finished product will be sent out automatically. Usually, the main rotary table can continuously operate by carrying 12 drinking straws. The machine has high production speed.
characteristics
1.High production efficiency.
2.Having the function of quantity counting.
3.Automatic counting, batch alarm (product quantity pre-set), convenient for putting the products into bag manually.
4.Having the function of automatic stop when there is a failure.
Specification:
Driving motor |
1.5kw(control by frequency converter) Heating power:3kw |
|||
Production capacity |
150~260pcs/min |
|||
|
Straws specifications |
Diameter |
6mm |
7mm |
8mm |
Wall thickness |
0.19-0.25mm |
0.19-0.25mm |
0.19-0.25mm |
|
Straw length |
197~310mm |
197~310mm |
197~310mm |
|
Other specifications are customizable | ||||
Machine size |
1000*1100*1600mm |
|||
Machine weight |
500kg |
|||
