Specifications

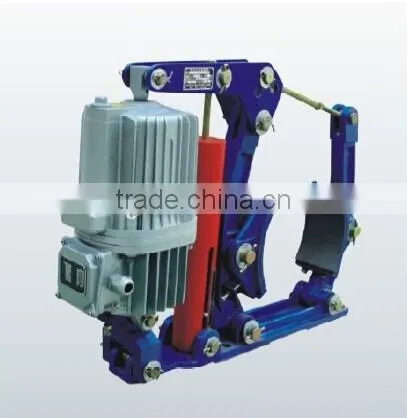

Electric Hydraulic YWZ9 Drum Type Brake for craneElectric Hydraulic YWZ9 Drum Type Brake
Product Description:
Hydraulic power-block brakes are widely used in appliances,metallurgy,mining,ports,terminal,construction machinery,such as mechanical drivers or slow down the parking brake.Safe and reliable performance,braking smooth,high-frequency motion.The main point swing hinges with self-lubricating bearings,drive effeciency,long life in use with our lubrication.
Standard JB/ZQ 4388-1997 installed with the standard size.According to the users need to install the brake pad has two forms:riveting and plug-in(when ordering).
The use of terms Ambient temerature: -20 °C +50 °C
The relative air temperature not more than 90% around the working environment may not have flammable ,explosive and corrosive gases.
The use of the sites above sea level in line with the GB755-2000
Ourdoor rain erosion or corrosive gas and the media should adopt anti-corrosionn products.

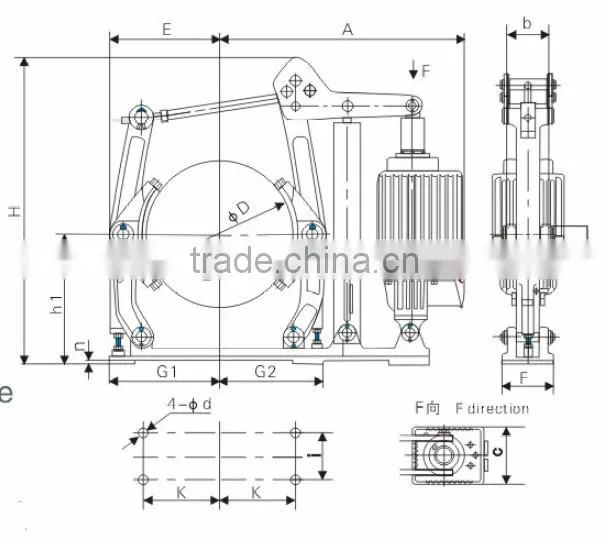

Drawings:
Technical parameters:
Electric Hydraulic YWZ9 Drum Type Brake
