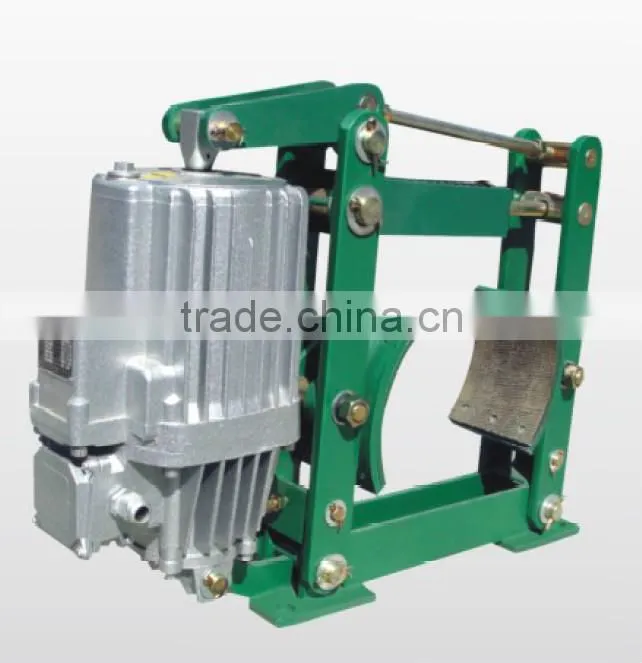

High efficiency YWZ 4B Series Electric Hydraulic Drum Brake !
Specifications:
Introduction:
YWZ series DC drum braker
1.Introduction
YWZ series DC brakeRr are mainly used in hoisting, transportation, metallurgy, mines, ports, and civil construction as brake gears of various machines. The connection dimension and brake torque meet the requirement of JB/ZQ4388-1977. Technical conditions meet JB6406.2-2006. They take Ed series electro-hydraulic thruster introduced from Germany EMG Company as their driving units, which are featured with:
1).Excellent action performance, good seal performance and high protection class of outer covering.
2).The linings have taken form by means of die casting, which are easy and quick to replace, and have long service hand high-usage.
3).The main oscillating joints have the self-lubrication bearing and oil filler point. The transmission of brake frame is efficient. The action is sensitive and reliable. The service life is long.
4).Realize some additional functions by adding additional device.
2.Operating Conditions.
1). Ambient temperature: -25C --- + 45C
2). Working environment must be free of combustible, explosive and corrosive gas.
3). Air relative humidity :<=90%.
4). Sea level altitude for application accords with GB755-2000 standard.
3.Main features:
1).Main swaying hinged points are equipped with self lubricated bearings with high efficiency of transmission and long service life.
2).Brake torque is shown directly.
3)Manual release is equipped which is convenient for maintenance.
4)Automatic compensation device can realize the automatic compensation when the brake linings are worn.
5)The interlocking equal clearance device can avoid adherence of the brake lining on the brake drum.
Packaging & Delivery:
Packaging Detail: |
Export Standard |
Delivery Detail: |
15-20 working days |

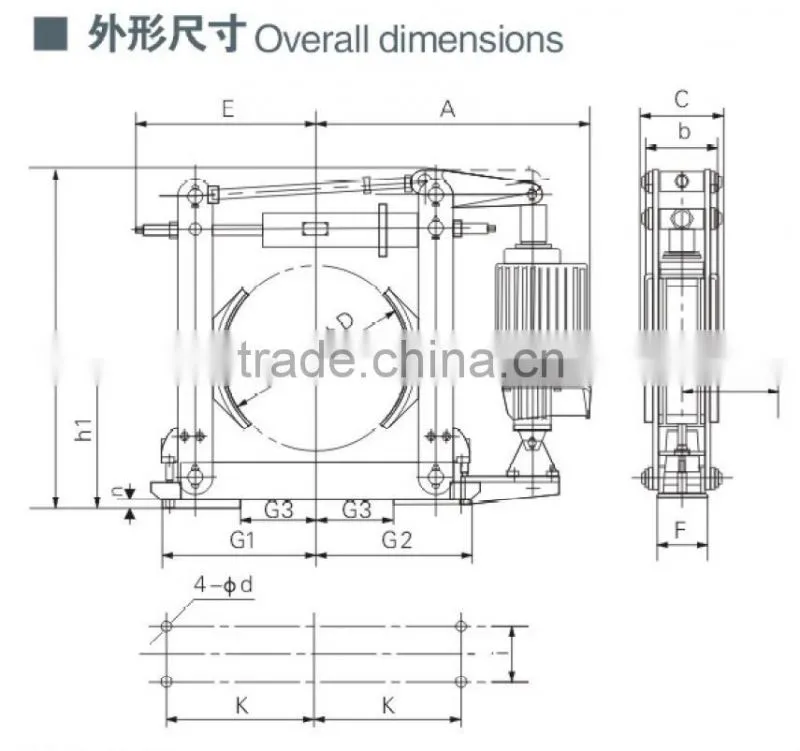

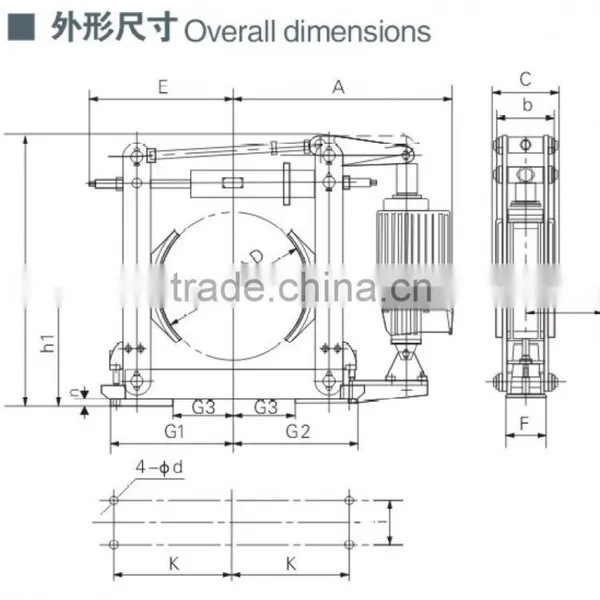

Picture:
LUOHE ORANGE MECHANICAL EQUIPMET CO.,LTD
If you are interested in our machine ,welcome to contract with me ,It will be my pleasure to help you !
Website:
Tel: 0086-395-6665600
Mobile:15939582629
Skype: sales01-orange
Fax: 0086-395-6665669
Add:F16, Block19, Fortune Plaza, Songshan Road, Luohe, Henan, China
