Dafeng Longjiang Machinery Factory

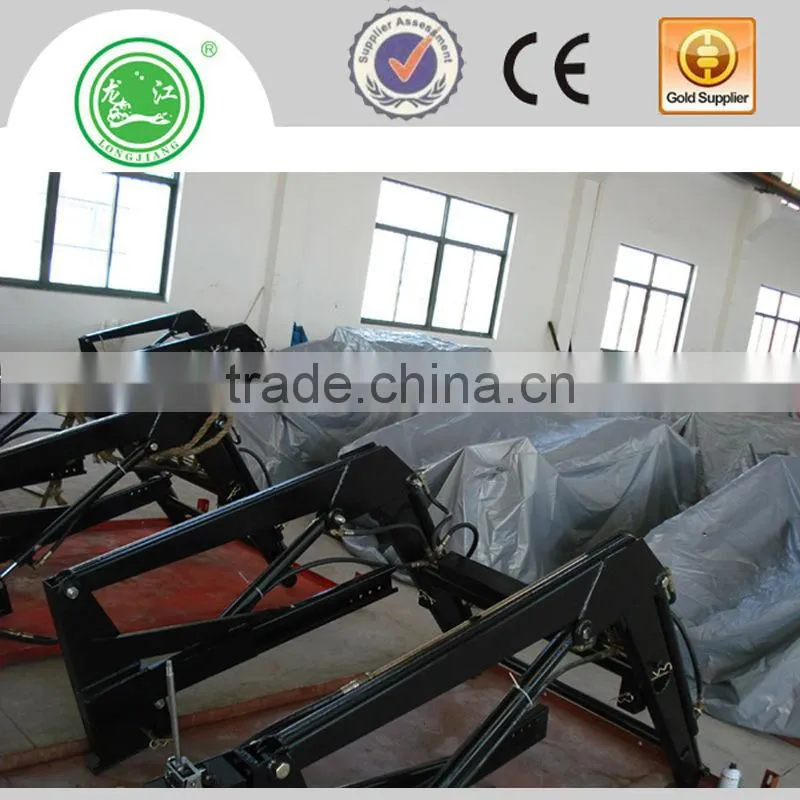

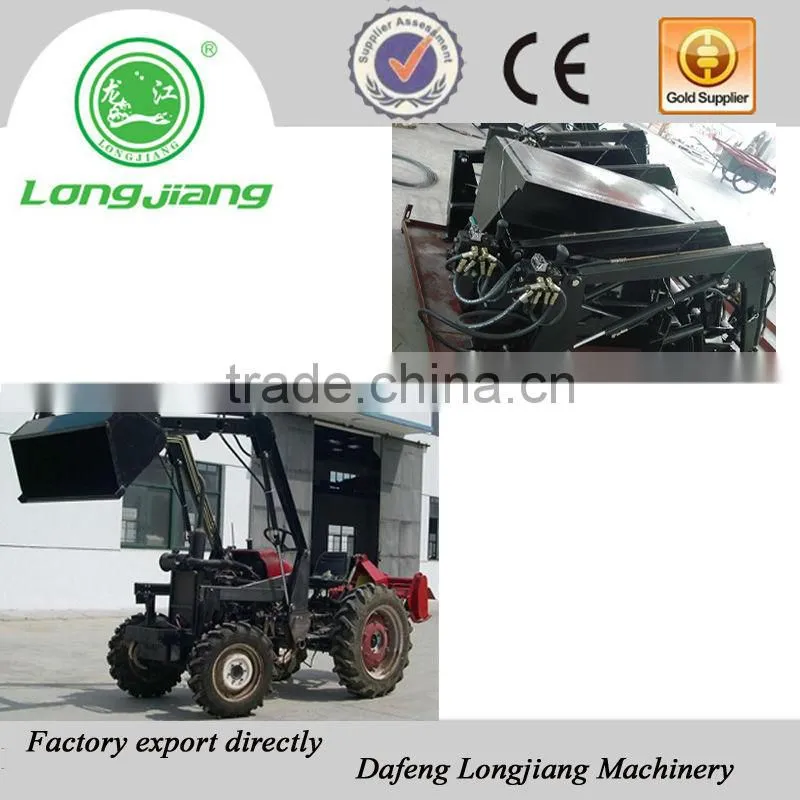

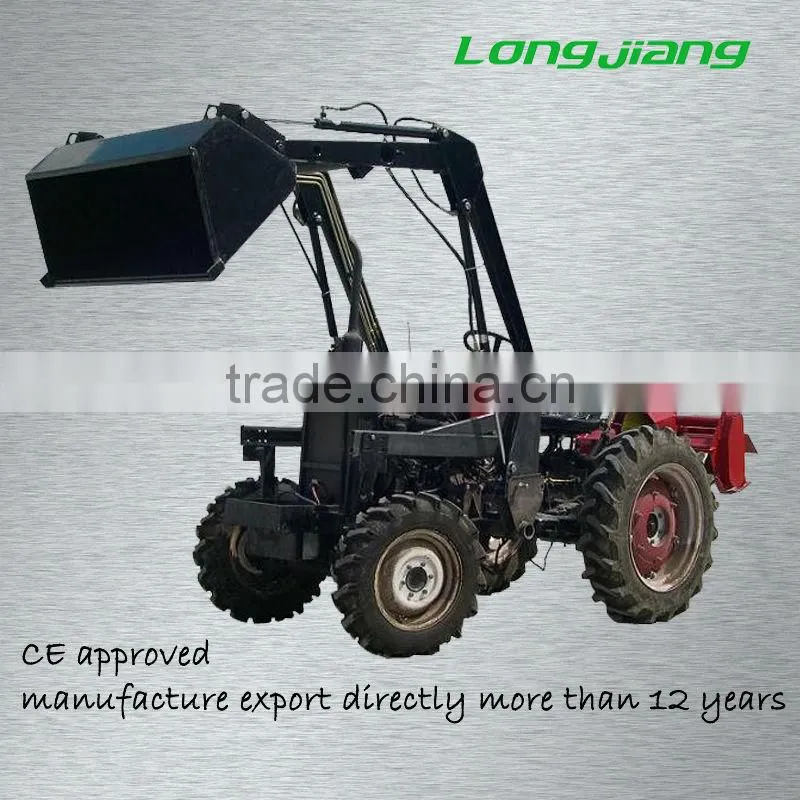

4WD tractor front end loader
We produce 4WD tractor front end loader , also can produce the front end loader for other brands if the customer supply the detailed size information that we need.
PTO speed is 540 RPM
Model |
JM/ZL-20 |
JM/ZL-30 |
Power (HP) |
18-25 |
30-35 |
Weight (kg) |
360 |
400 |
Bucket capacity (m3) |
0.2 |
0.3 |
Max.load (kg) |
400 |
450 |
Bucket inner width (mm) |
1300 |
1500 |
A Cardinal axis height at the highest lifting (mm) |
2455 |
2600 |
Unloading height B (mm) |
1845 |
1930 |
Unloading distance L (mm) |
590 |
640 |
Max.rollback angle D(o) |
40 |
40 |
Unloading angle E (o) |
45 |
45 |
Digging depth C (mm) |
60 |
60 |
Lifting time (S) |
7 |
7 |
Dropping time (S) |
5 |
5 |
Bucket unloading time (S) |
5 |
5 |
Bucket rollback time (S) |
4 |
4 |
Working pressure of hydraulic system (Mpa) |
16 |
16 |
Lifting and bucket cylinder |
Dual-action |
|
Hydraulic valve |
ZD2-F15L type single-handle control hydraulic multi-loop reversing valve |
|
That is the why you choose our 4WD tractor front end loader
1) Specializing in manufacturing and selling 4WD tractor front end loader ,transport box and rotary tillers more than 13 years
2) Owned “LONGJIANG” brand, “CE”&“Supplier Assessment Certificate” by TUV Rheinland in Germany
3) Produce and sell the quality 4WD tractor front end loader available at the lowest possible price
4) With the strict quality control & lowest damage rate
5) Old customers always satisfied with them to save their money & reduce the trouble.
6) Once cooperation, forever customers and friends.
7) Excellent after-sales service
8) All spare parts of 4WD tractor front end loader,transport box and rotary tillers have in stock.
1) You can buy & test the quality of our sample firstly before you purchase them in mass quantity.
2) Payment Way: T/T, L/C, Western Union, D/P
3) Delivery Date: 5-30 days after deposit paid. It depend on your order quantity
4) Shipping Way: By Sea or By Air
5) After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
Quality Implements you can afford to save your money & reduce the trouble.
