Servo CNC Cutting System High Effective Steel Bar Straightening Machine

Servo CNC cutting system high effective steel bar straightening machine

Introduction:

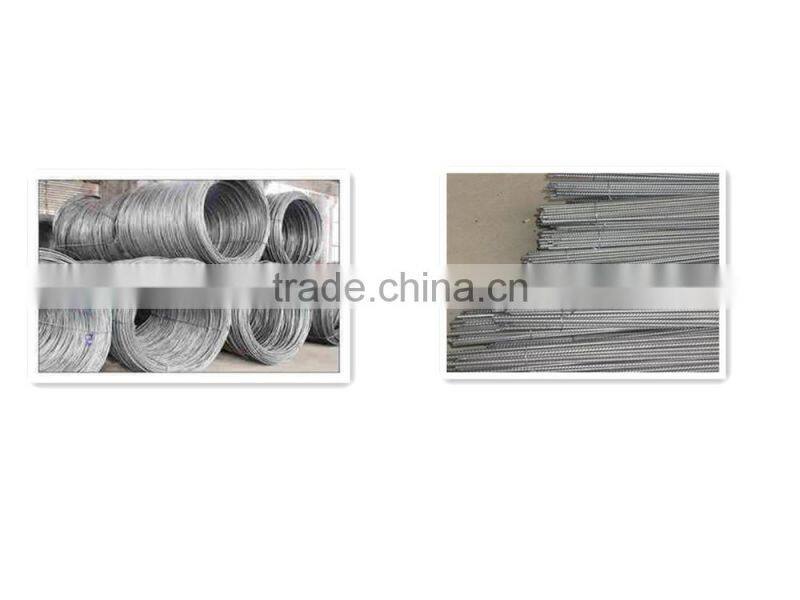

GTJ8-14/128 CNC steel bar straightening and cutting machine, is a application of multiple roll press straightening with flying shear to cut-off,CNC counting system ,frequency control and two-way reverse discharge frame.It can be used in 8-14mm steel bar high precision straightening, and applied widely in cold-rolled ribbed bars, hot-rolled ribbed bars 400, spiral reinforcement ,cold-draw round steek of low-carbon or medium carbon with 128m/min working speed. The advantage is CNC counting with high precision and long service time. Meanwhile, the equipment is known for it's low-cost, no damage rib, once-time cutting, small noise and tremor,and equipped with protective and automatic counting device. All the features no matter in appearance or quality are the leader manufacturer in China.

Technical parameters

Configuration :

GTJ8-16/128 steel bar straightening machine (1 set )

CNC servo cutting system (1 set)

Feeding framework (1 set)

CNC counting system device (1 set )

Full-automatic control cabinet (1 set )

Fittings including (some sets)

[ Notice ]

1. All the equipments above are the standard specifications with practical and high-productive features . No model you need, we accept customized .
2. All the drawings are designed by R&D department and manufactured by our factory, so we could promise the quality and delivery time .
3. We devote ourselves into building long-term business relationship.
4. You are welcomed to visite our manufacturing base at any time .

Product Photos:
