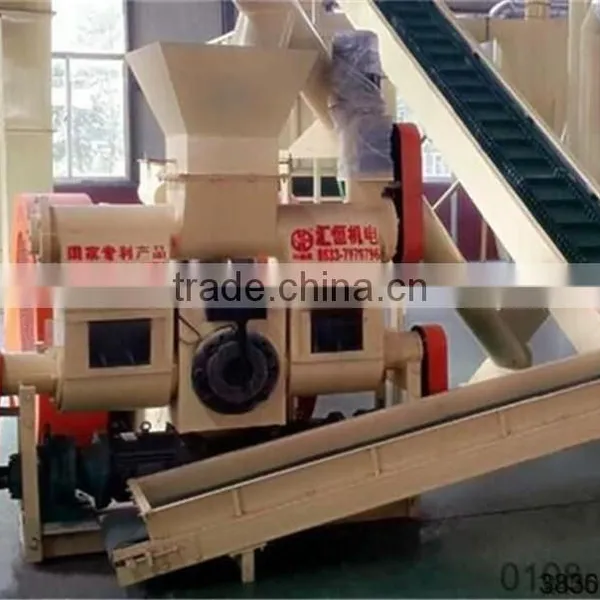

Ram Piston Type Biomass Wheat Husk Briquette Machine with CE
and biomass pellet production line with CE
Widely Raw material used
1. Crop stalks (including cornstalks cotton stalks ),grain shell(rice husk ), peanut shell and stalks, cotton stalks, sawdust,branch, bark, bamboo powder, furfural residue(could be mixed used), Wood scraps, Forest harvesting slash, household refuse,scraps produced by paper making factory, all of these could be smashed and briquetting .
2. Notice: The moisture of raw material have to be kept at around 15%, and the length must be within 10mm .
Production Flow
Production line video:
Working principle
The machine get reciprocating motion by pulley driven by eccentric wheel, and then the feeder machine will start to feeding. Then the raw material go through distributor to get into the feeding box on the briquetting machine, and the next step is from feeding box to molding machine by the appending machine from two sides .
Under the pressure caused by punch and molding die, the raw material become heating up and softened, and the volume become smaller. Then the raw material get solid and being extruded by molding die with reducing taper due to repeated impact .
Pellet shaping process is effected by pressure and temperature ,so the operation principle is punch principle ,the machine carry punch 280 times /min when it works normally.
The pressure will up to 300T and the temperature is 150-200°C, so the equipment could be used widely for so many kinds of raw material and enjoying a excellent forming density.
In addition, all parts of the equipment lubricated forced by the Oil pump lubrication system to ensure the equipments enjoy a longer service time.
Technical parameters
No | Item | Structure and configuration |
1 | Main components | Main engine |
Feeding machine (with belt or twisting shaft) | ||
Control cabinet | ||
Cut off machine(with discharge framework) | ||
2 | Finished product Specification(mm) (can be customized) | Diameter :8mm,10mm,20mm,30mm,40mm,50mm,60mm,70mm,80mm,85mm |
3 | Productivity | 0.8-1.5ton/hours |
4 | Density | More than 1.0-1.3 |
5 | Die life | service time 100-800Ton |
6 | Main power | 45KW(actual cost is about 60%) |
7 | Weight | 7000KG |
8 | Dimension | Main engine: 3.4m*2m*1.8m, Feeding machine:(with twisting shaft ) 4.2m*3.0m*0.7m, Feeding machine(with belt ): 5.8m*0.9m*2.8m Control cabinet: 1.2mX0.6mX1.2m. |
9 | Operators | 1-2workers/set |

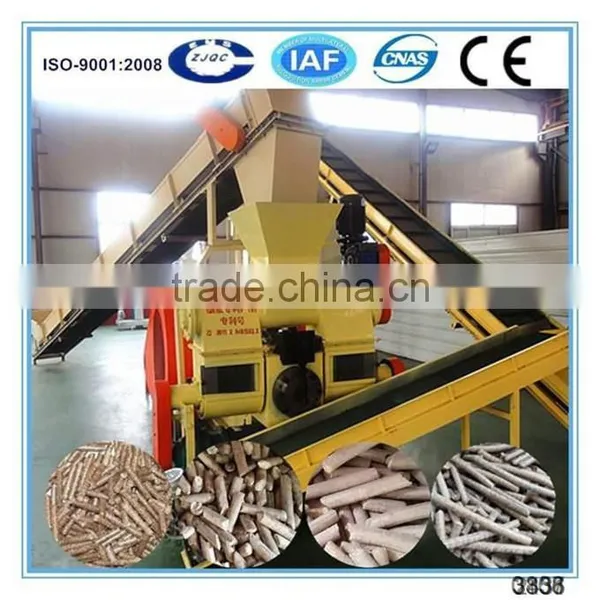

Finished product pictures:
Packing and delivery pictures
One of our workshop
Certificate and patent
Consulting & Training & After-sale service
1.Pre-sale service
Product introduction ,technical scheme, design scheme, quality certification could be provided to the customer, if any other documents you need, just keep us posted .
2.Service in the sale
1) During the equipment applied period , the company will arrange staffs to get the feedback and suggestions about the quality and other usage conditions to improve the quality and comprehensive performance.
2) The company will arrange engineer to train the workers about adjusting the equipment ,disposing of the trouble maybe happen and maintenance of the machine ,after training ,the workers will get work license we distribute.
3.After-sale service
1) within the warranty period, we promise to provide maintenance ,exchange ,return the product if quality problems happens . The warranty period of the entire equipment is 6 months except for the easily damaged parts .
2) Quickly reaction will be taken when complains case happens, after-sale service workers could be sent to the job site within 8 hours in city ,24 hours within province , 48 hours in domestic and 72 hours for the abroad business.
Other machine you may interested :
Packing machine --- used to pack the finished pellet product
Dryer and air flow cooler --- used to dry the raw material and cool the finished product.
If you need more information, please contact us now. We will be your most reliable supplier!
