Help CenterPatented Self-propelled Maize Mini Combine Harvester
Related Products
Specifications
1.harvest combine2.one year warranty
3.CE approved
4.pick cluster, collect grain, straw chopp
harvest combine
1. Performance description
1.) The machine adopts full hydraulic steering system, flexible operation of the light,
small bending radius, good mobility. Fully self-contained power output shaft, there are a
variety of optional speed, meet a variety of work environment. Grain harvest, packing
and chopped stalks can complete at the same time. Its feature on this kind of machine
is greater power, lower fuel consumption compared to the same kind of machine
2.) The machine can complete pick cluster, collect grain, straw chopper one time.
Distinguishing feature :
1. self-propelled corn mini combine harvester
2. Patented product(s), counterfeiting not allowed
3. Export to Russia,Ukraine,Poland,Argentina,Mexico,Brazil,S. Africa and so on.
2. Technical parameters
Product execution standards |
GB/T 21962-2008 |
Product type |
4YZ-2 |
Structure type |
Self-propelled |
Transportation dimensions(mm) |
4750×1650×2450 |
Overall dimensions(mm) |
4750×1650×2450 |
Total weight(kg) |
2200 |
Harvesting rows |
2 |
Row space(mm) |
630-750 |
Working width(mm) |
1550 |
Maximum unloading grain height(mm) |
1840 |
Minimum space from ground(mm) |
250 |
Minimum turning radius(mm) |
Left 5000, right 5000 |
Working speed(km/h) |
2-4 |
Working efficiency(ha/h) |
2-4 |

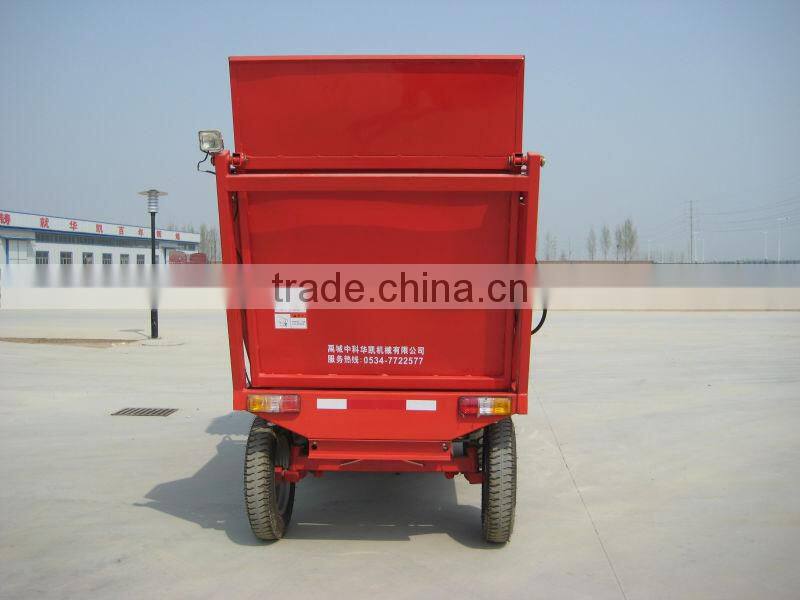

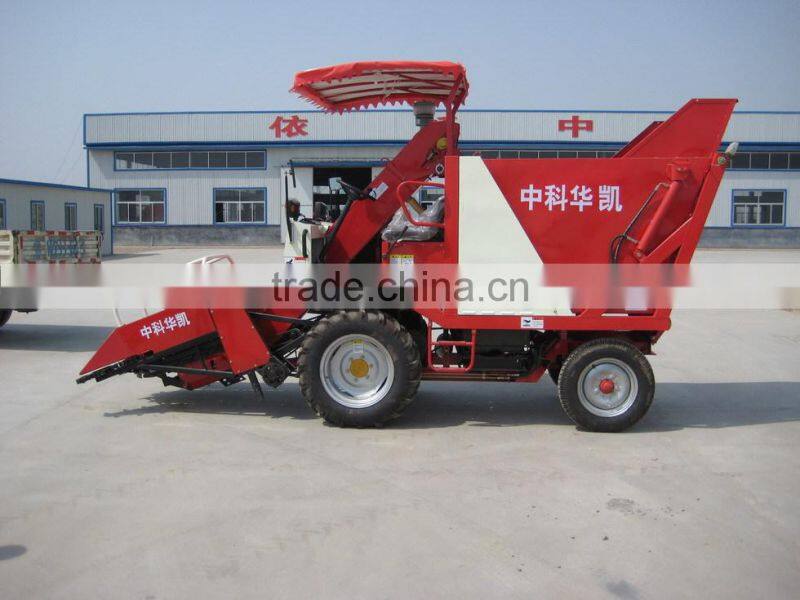

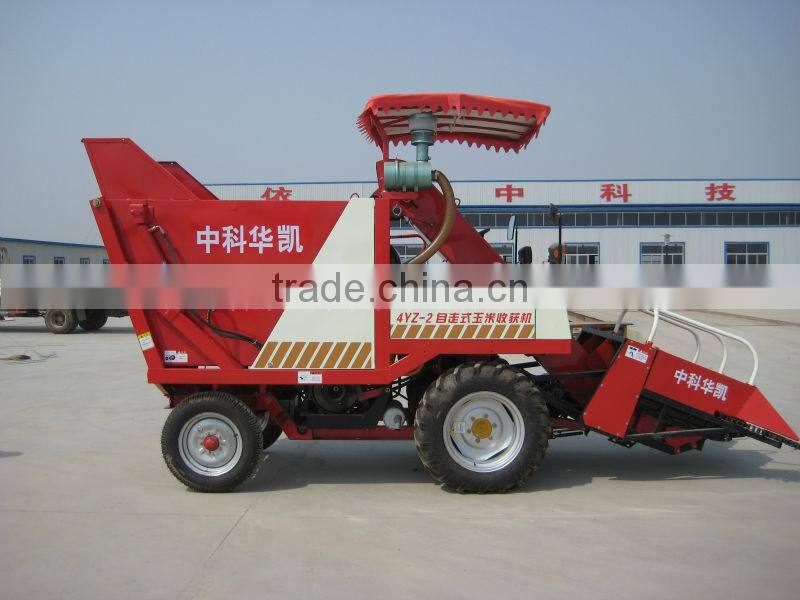

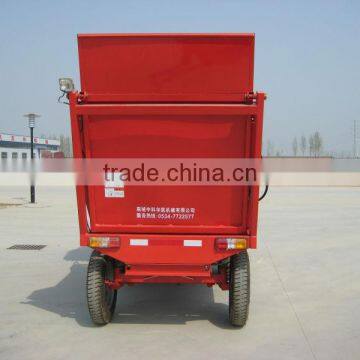

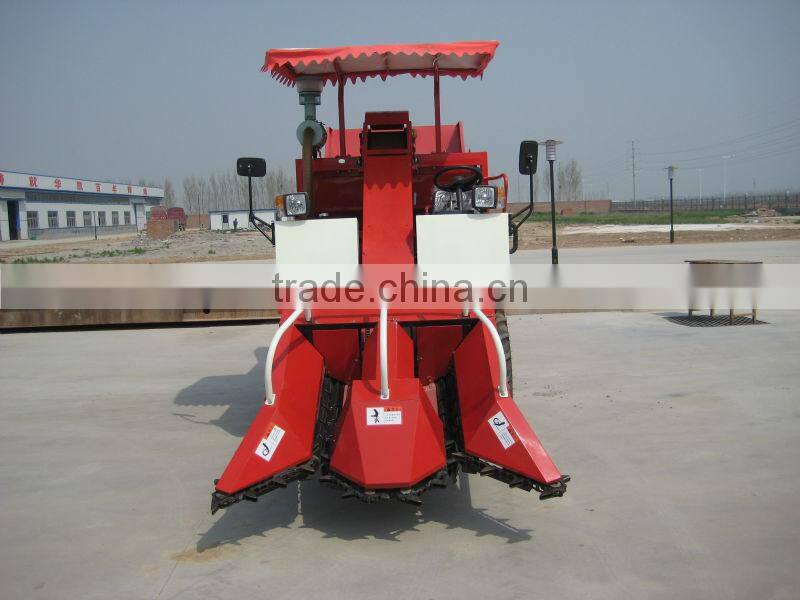

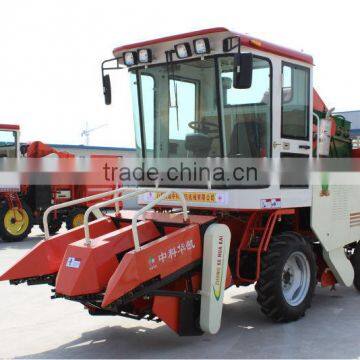

Machinery Photo:

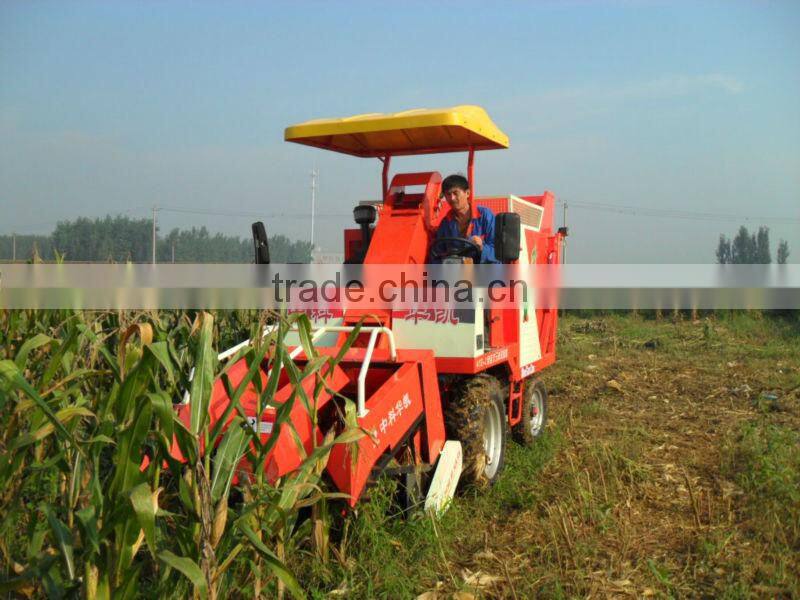

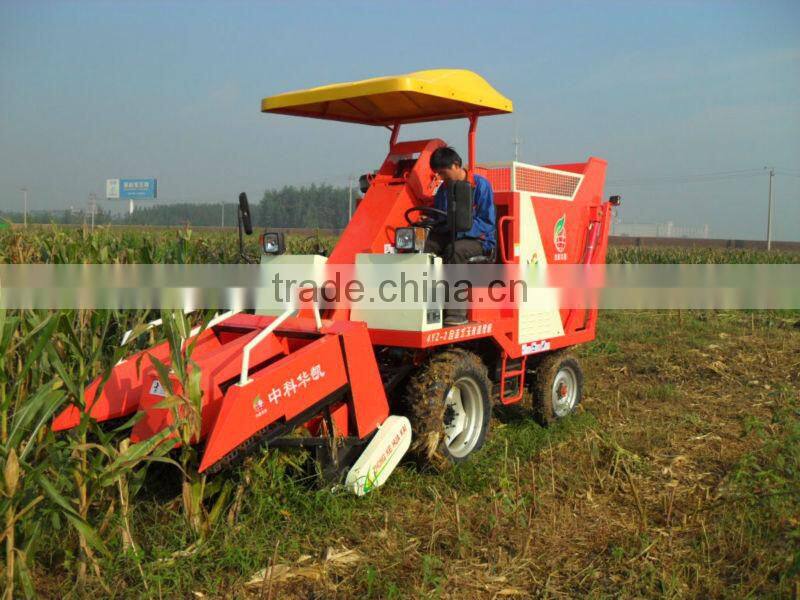

In the farm :
Shipping :
1. FOB Qingdao
2. CFR & CIF your port
3. Others as customer's require
Payment:
1.By T/T
2.By L/C
About our company:
1. Our company is specialized in producing seeder and harvester manufacturer, with independent
import and export right, the products have passed CE certification, are exported to Europe,
Australia, Latin America, Africa and Southeast Asia .
2. Our company has passed ISO9001.2000quality system certification .
3. Our company located in Shandongyucheng high and new technology Zone, Welcome to visit our
company .
Thank you for your attention on our products and also our company, and we hope that these informations will be helpful to you.
For more informations please feel free to contact us!
Contact Person: CocoWang
Trade Manager: cn1500200264
Skype: cocowang1998
Mobile: 86-13793476948
Tel: 86-0534-8103888
Fax: 86-0534-8103888
Address: Yucheng High & New Technology Development Zone, Dezhou,
Shandong, China (Mainland)
