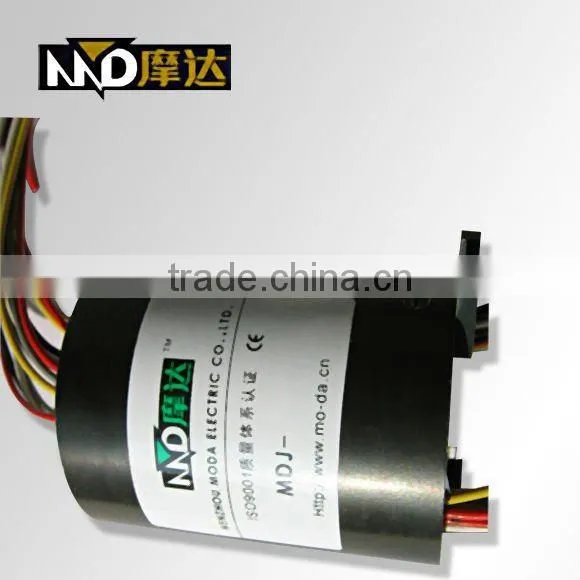

Through Hole 25.4mm 600Rpm Through Bore Slip Ring
US$ 40 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Moda
Model Number:
MDH2578
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bore 12mm 6 Circuits 5A Slip RingUS$ 40 - 70MOQ: 10 Pieces -
Bore 60mm 6 Circuits 10A Through Bore Slip RingUS$ 150 - 200MOQ: 10 Pieces
-
Factory Wholesale CE Through Bore Slip RingUS$ 10 - 20MOQ: 1 Piece
-
Low Noise ISO9001 Through Bore Slip RingUS$ 10 - 20MOQ: 1 Piece
-
Low Contact Wear 25*78*48 CE Through Bore Slip RingUS$ 10 - 20MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Moda
Model Number
MDH2578
Product Description

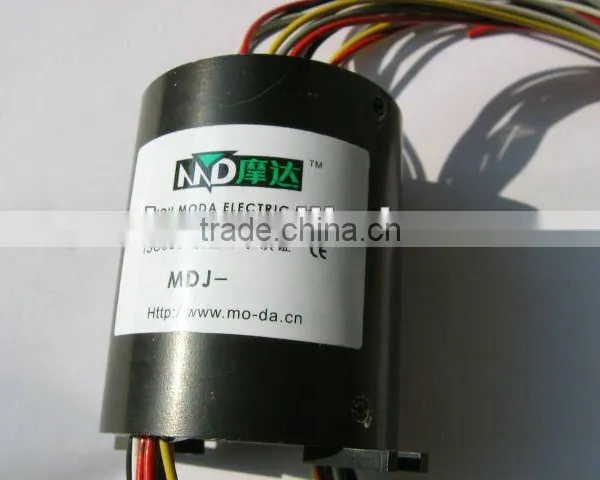

| Slip ring MDH2578 dia.25.4mm: | ||||||
| Make use of advanced sheaf brush technology to design and manufacture | ||||||
| Suffice 360°unrestrained continuous ratotion to transmitting power and / or date | ||||||
| Product modularize | ||||||
| Long life and maintenance-free operation | ||||||
| Electrical data: | ||||||
| Lead : | AWG16 and AWG26 Tinning wires,PTEE insulated | |||||
| Standard lead length: | 500mm (other lengths on request) | |||||
| Voltage: | 600VAC | |||||
| Insulation Resistance: | ≥100MΩ/500VDC | |||||
| Dynamic contact Resistance: | <0.01Ω | |||||
| Mechanical date: | ||||||
| operate speed: | 0-250rmp continuous | |||||
| Contact material surface: | Brush:silver alloy,Ring:silver-gilt copper | |||||
| Bearing: | steel ball bearing | |||||
| Housing: | Engineering plastics | |||||
| Temperature range: | -20 to 80 Degree | |||||
| IP: | 51 | |||||
| Description: | ||||||
| A slip ring can be used in any electro-mechanical system that requires unrestrained,continuous rotation while transmitting power and/or date from a stationary to a rotating structure.A slip ring is also calleda rotary electrical interface,collector,swivel,or a rotary joint. | ||||||
| A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires danling from movable joints.A slip ring are metal rings that provide a continuous electrical connection through brushes on stationary contacts.It's configuration is column type,each ring lies along the drum axis,like threads on a bolt. | ||||||
| The MDH2578 uses sheaf brush technology which offers several advanges over conventional slip ring contacts,including multiple points of contact per brush bundle,low contact force per brush,low noise and low contact wear rates.In addition,sheaf brushes do not require lubrication and produce virtually no wear debris. | ||||||
| Applications: | ||||||
| Rotary index tables,machining centers etc industrial machinery | ||||||
| Cable reelst,est equipment and machining centers | ||||||
| Heavy equipment turrets | ||||||
| Packaging machines,magnetic clutches,palletizing machines | ||||||
| Process control equipment | ||||||
| Rotary sensors,robotics,emergency lighting | ||||||
| Display/Medical equipment,Exhibit equipment | ||||||
Our Services
• Superior to conventional slip rings
• Sealed ball bearing construction
• Increased reliability, no maintenance
• Extremely low electrical noise
• Durable, compact, low cost
Company Information
Zhejiang Hoda Electric Co., Ltd.is a professional enterprise specializing in mechanical fittings series such , such as slip ring, Carbon Brush, brush yoke, brush holder, rotary electrical interface, swivel,collecting ring, or a rotary joint etc. We depend on the strength of science and technology to develop various new products which can meet customer's requirement.
certificate
Our company will introduce strictly the demands of ISO9001,2000,RoHs, international quality management system in business administration. We always hold the aim of science and technical innovation, scientific management, sincerity service, to satisfy the customers.
