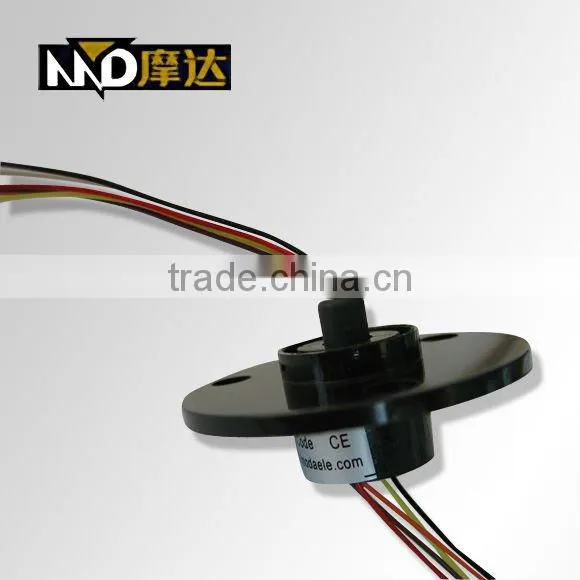

MDC22-6 Capsule Slip Ring /Rotary Joint/Collecteur Tournant

MDC22-6 Capsule Slip Ring /Rotary Joint/Collecteur Tournant thumbnail-1
MDC22-6 Capsule Slip Ring /Rotary Joint/Collecteur Tournant photo-1
US$ 7 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Moda
Model Number:
MDC22-6
Contact Supplier Request Quote Chat Now
Zhejiang Hoda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Moda
Model Number MDC22-6

MDC22-6 Capsule Slip ring /Rotary Joint/Collecteur TournantMDC22-6 Specifications

  • Contact Material

    Gold alloy brush,Gold plated rings

  • Current Rating

    2A, per ring, maximum

  • Number of Circuits

    6

  • Operating Speed

    250 rpm* continuous

  • Housing Material

    Engineering Plastics

  • Lead Wire

    UL Teflon® Awg28,color-coded, silver-plated

  • Lead Lengths

    250mm

  • Voltage

    210 VDC / 240 VAC

  • Operating Temp.

    -40°C to 80°C

  • Torque

    Approx. ≤0.35 g·m (for reference )

  • Dielectric Strength

    ≥600V@50Hz between each circuit

  • Insulation Resistance

    600MΩ@ 300VDC

  • Noise

    15 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm

  • Resistance to pull

    Radial 2KG,Axial 0.5KG

  • Protection

    IP51

  • Features
    • 6 circuits
    • Compact size: 22(diamter)*27mm(L)
    • Gold-on-gold contacts
    • Compatible with data bus protocols
    • Transfers analog and digital signals
    • Speeds up to 250 rpm continuous
    • Precision ball bearings meet or exceed life requirements for most commercial applications
    Benefits
    • Smooth running
    • Low torque
    • Compact dimemsions
    • Quick shippments
    Lead Wire Color Code

    Circuit No. 1 2 3 4 5 5
    Color BLK BRN RED ORN YEL GRN
    Circuit No. 7 8 9 10 11 12
    Color BLU PURPLE GRY WHT RMK AZURY
    6 circuits/per group, groups with tags
    Type Application

    CCTV pan / tilt camera mounts Electrical test equipment
    Manufacturing and process control equipment Medical equipment
    Robotics rotary index tables
    Miniature cable reels

    Laboratory equipment
