CE Approved High Efficient 3-4t/h Disc Wood Chipper Machine

CE Approved High Efficient 3-4t/h Disc Wood Chipper Machine photo-1
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wood Chipper
Use:
crush the big diameter tree branch into pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Wood Chipper
Use crush the big diameter tree branch into pieces
Power Type Electric
Production Capacity 100%
Place of Origin Henan, China
Brand Name VIC
Model Number DSC-600
Dimension(L*W*H) 1.6*1.0*1.2m
Certification CE,SGS
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Model:DSC-600
2.Power:15KW
3.Capacity:3-4t/h
4.blade dia(mm):600
5.Blade pcs:4







Product Description



 Application

1.It can crush the big diameter tree branch such as pine, poplar wood, filed mushroom into pieces like sawdust one time.

2.The machine is simple structure, compact, space-saving footprint, good shaving quality, also is good for bamboo,grass, corn stalk, sorghum stalk and other fibrous materials.

3.Adopt vee belt transmitt,disk cutting and hammer crushing to wood chipper the granularity size can be adjusted by changing the sieve.





Main data



Model

DSC-420

DSC-500

DSC-600

DSC-700

DSC-800

DSC-950

Capacity(t/h)

1-2

2-3

3-4

4-5

5-6

6-8

blade dia(mm)

420

500

600

700

800

950

Blade pcs

4

4

4

4

4

4

Main shaft speed(min/h)

600

600

650

600

480

550

Power(kw)

7.5

11

15

22

30

37

Size(m)

1.2*0.85*0.9

1.5*1.0*1.1

1.6*1.0*1.2

2.1*1.1*1.3

2.3*1.1*1.4

2.6*1.1*1.5



 Machine details

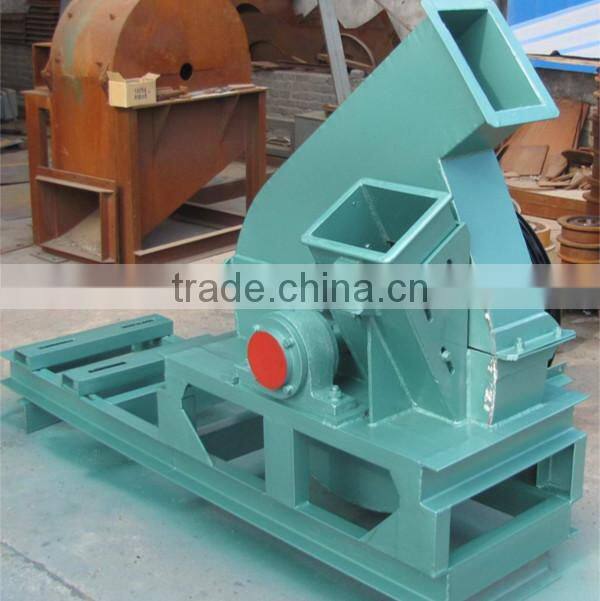

 CE approved high efficient 3-4t/h disc wood chipper machine

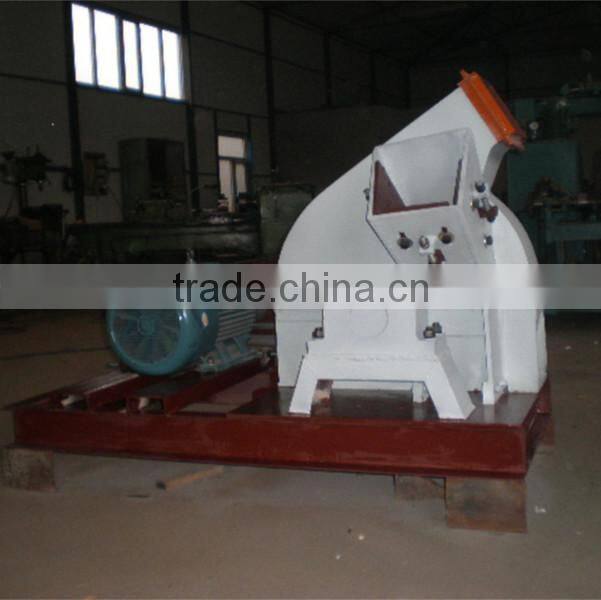

CE approved high efficient 3-4t/h disc wood chipper machine

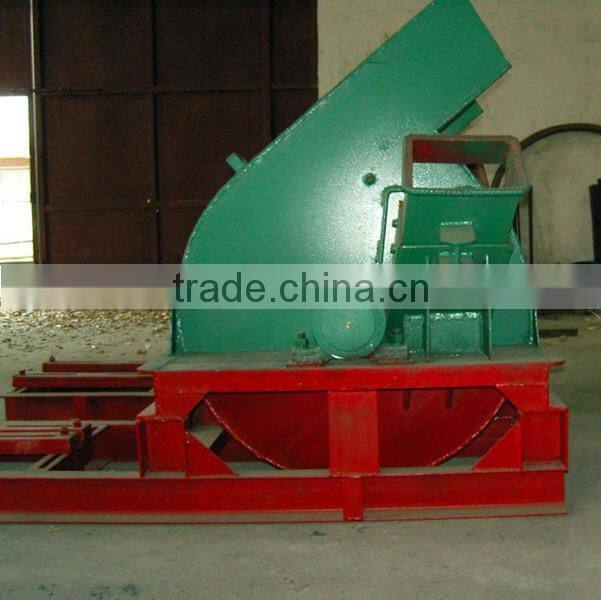

CE approved high efficient 3-4t/h disc wood chipper machine

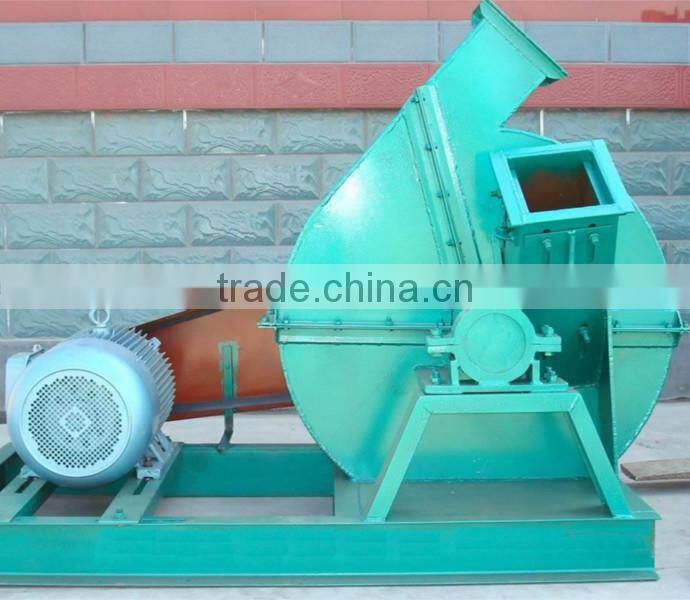

CE approved high efficient 3-4t/h disc wood chipper machine



Sample

CE approved high efficient 3-4t/h disc wood chipper machine


Packaging & Shipping

Packaging sample

CE approved high efficient 3-4t/h disc wood chipper machine

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.



Shipping:

Machine usually transport by sea,we also can transport it by air and railway.

Delivery time: Within 15 workdays after receipt of the pre-payment.







Our Services
Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.



We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
