Application

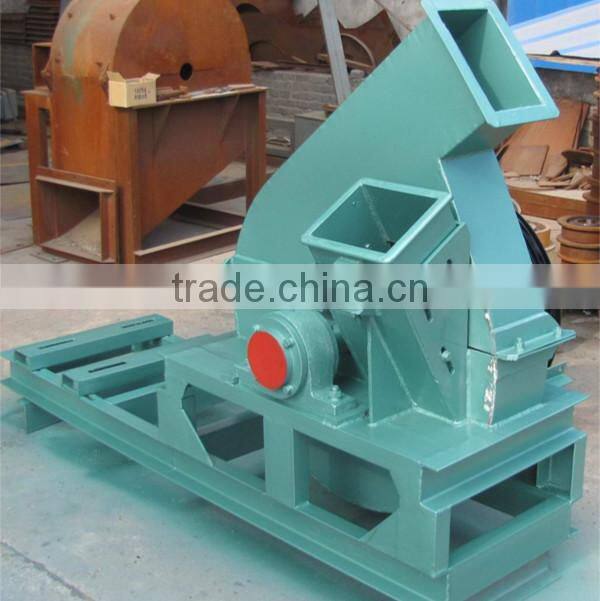

1.Drum chipper is one ideal equipment for making wood chips.
2.It is widely used in stock workshop section of industrial manufacture, for example, the flakeboard,fibre board, building board, straw power plant.
3.Its raw materials are mainly small diametre, leaving thing of wood cutting(branchs ,wattle) and process leaving thing of the wood raw materials(board skin, board bar, log core,waste veneer) and so on.
4.It also can cut the non-wood materias, like sugar cane, bulrush,gross bamboo and so on.
The diameter of raw material
160mm,200mm,240mm,300mm
Final product’s length
25-35mm, 35mm, 15-35mm, 25-35mm
Main data
Model | BX2113 | BX218 | BX216 | BX215 |
Knife roller diamete(mm) | 1300*780 | 800 | 650 | 500 |
Knife number(hundle) | 3 | 2 | 2 | 2 |
Feed-in material door size(mm) | 400*700 | 310*680 | 240*540 | 460*200 |
The diameter of raw material(mm) | 300 | 240 | 200 | 160 |
Final product’s length(mm) | 25-35 | 15-35 | 35 | 25-35 |
Feeding speed(m/min) | 32 | 40 | 35 | 43 |
Knife roller rotate speed(r/m) | 420 | 650 | 590 | 592 |
Capacity(t/h) | 20-28 | 10-15 | 6-8 | 4-5 |
Weight(ton) | 11.8 | 7 | 4 | 2.9 |
Power of main motor(kw) | 220 | 110 | 55 | 45 |
Feeding-in material roller motor power(kw) | 7.5X2 | 4x2 | 3X1 | 2.2X2 |
Outside diameter(mm) | 3670*2517*2050 | 2670*2150*1500 | 1980*1950*1250 | 1540*1240*1020 |
Packaging sample
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Shipping:
Machine usually transport by sea,we also can transport it by air and railway.
Delivery time: Within 15 workdays after receipt of the pre-payment.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
