New!! Palm fruit oil press machine with top quality

Specifications

 Application:

VIC-1 Palm oil press is a new type oil press especially for pressing palm fruit oil(red oil),it can get the primary oil mixed with palm cores, water and marcs .After separation by other machines, the primary oil, palm core can be separated. It is suitable for 3-15 hetre area palm farmers self running.

The raw materials of fruit bunches are picked up from palm tree, and after boiled by high temperature, thresh the palm fruit, after heating then put into the palm fruit oil press machine.

Technical data:

Model: VIC-I palm oil press

Capacity: 300-500kg/h for palm fruit

Main shaft speed:25-35r/min

Power: 7.5kw motor/8hp diesel engine

Packing size: 1500x600x700mm

N. /G. Weight: 230kg/260kg

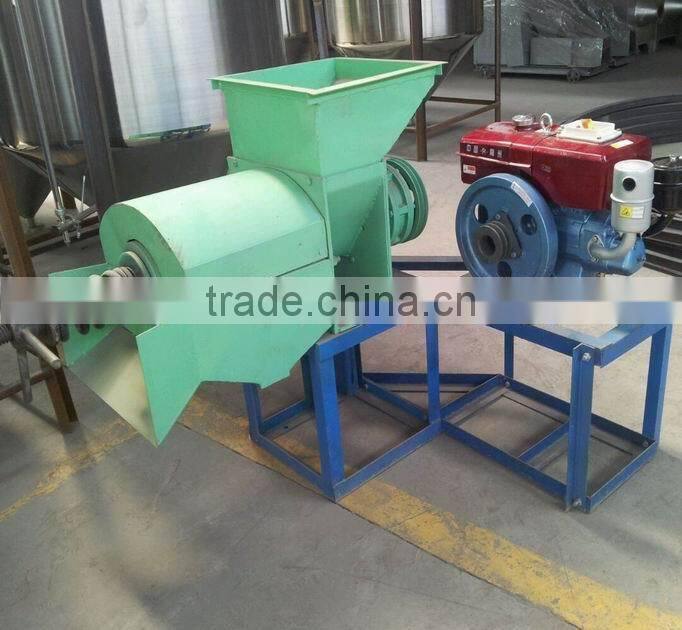

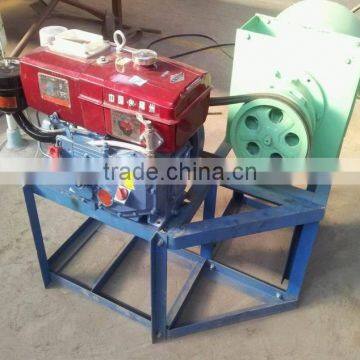

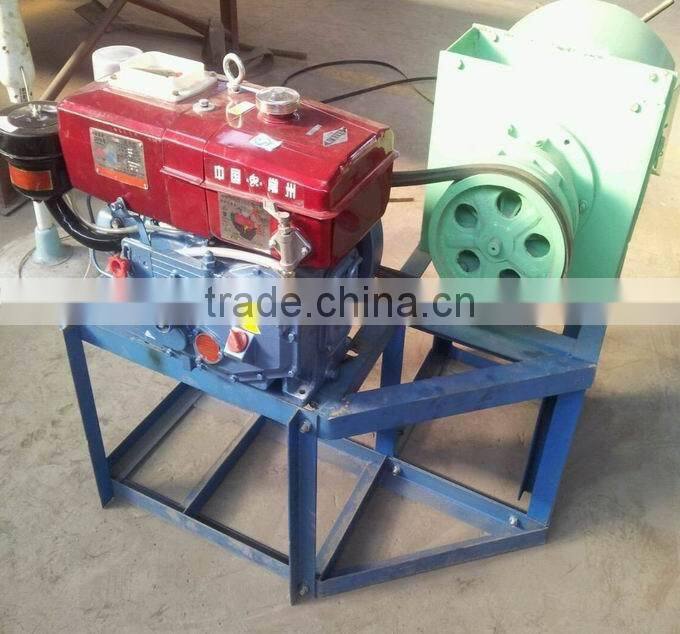

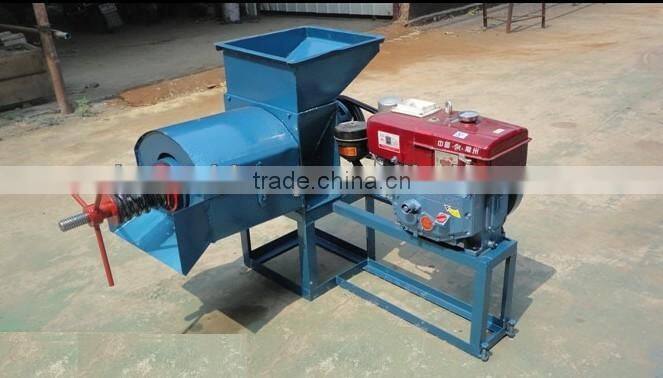

Different view of palm fruit oil press with diesel engine:

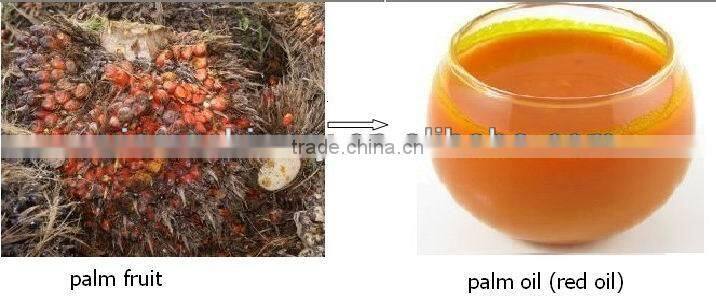

Final oil:

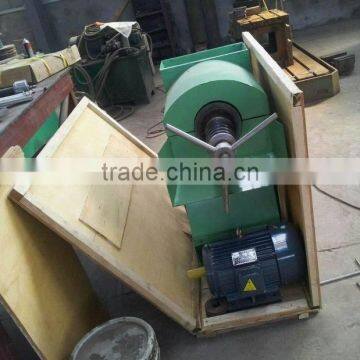

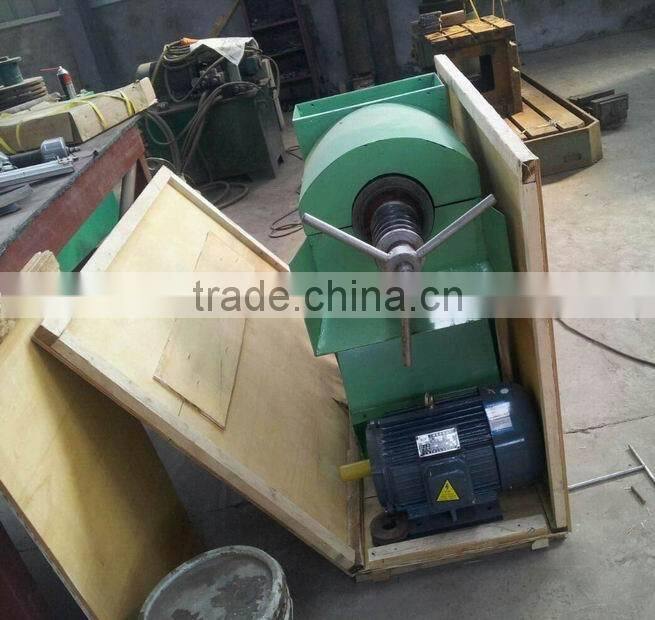

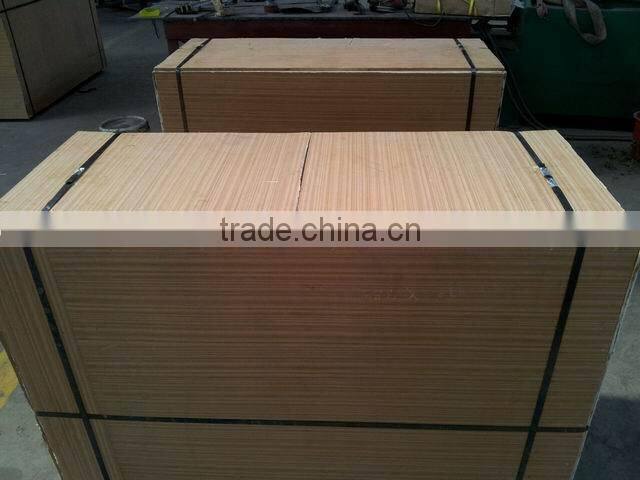

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.

Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.

We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
