Home > Manufacturing & Processing Machinery > Agricultural Machinery > Biomass Briquette Machine > New Straw BBQ Briquette Price Machine With CE Approved

New Straw BBQ Briquette Price Machine With CE Approved

New Straw BBQ Briquette Price Machine With CE Approved photo-1
New Straw BBQ Briquette Price Machine With CE Approved photo-2
New Straw BBQ Briquette Price Machine With CE Approved photo-3
New Straw BBQ Briquette Price Machine With CE Approved photo-4
New Straw BBQ Briquette Price Machine With CE Approved photo-5
New Straw BBQ Briquette Price Machine With CE Approved photo-6
US$ 2,400 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Application:
compress sawdust, wood, rice hush, coconut shell in to briquette
Production Capacity:
150-180kg/h (50mm); 230-280kg/h (70mm)
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Application compress sawdust, wood, rice hush, coconut shell in to briquette
Production Capacity 150-180kg/h (50mm); 230-280kg/h (70mm)
Place of Origin Henan, China
Brand Name VIC
Model Number ZBJ-III
Voltage 380V
Power(W) 18.5Kw
Dimension(L*W*H) 1670*670*1550mm
Weight 700kg
Condition New
Certification CE
Warranty 1 year for main machine except easy weared parts
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Model: ZBJ-III
2.Power: 18.5kw
3.Capacity: 230-280kg/h
4.Diameter of finished products: 70-90mm







Product Description

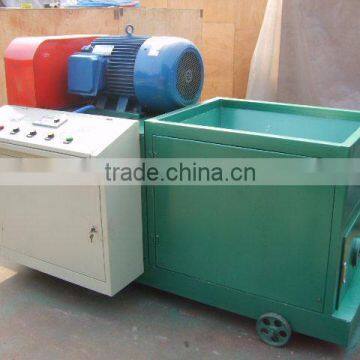

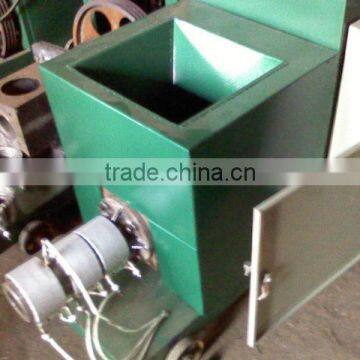

ZBJ-III Brirquette Machine



Introduction:

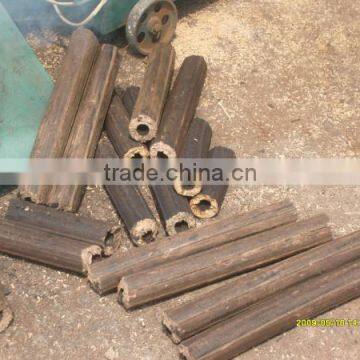

Our briquette machine can make briquette from sawdust, wood , rice husk, coconut shell , straw and other wood materials. The finished briquette stick can be used as fuel for boiler, stove, BBQ and so on.



Working principle of briquette machine/straw briquette machine :



(1) It is used a large screw to grind, compress and extrude the biomass into briquettes

(2) The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature.

(3) In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc.

(4) During this process, non-binder needs to be used.



Main data for ZBJ-III:



ModelZBJ-III
Power (Kw)18.5
Diameter of finished product(mm)70-90mm
Output (Kg/h)230-280
Electric Heater (Kw)3×2.2
Machine Dimension Size(mm)1670×670×1550
Weight (Kg)700



Related models:



ModelZBJ-III ZBJ-IV
Power (Kw)18.522
Output Products Size Diameter(mm)70-90mm70-90mm
Output (Kg/h)230-280230-280
Electric Heater (Kw)3×2.23×2.2



Pictures for ZBJ Series Briquette Machine



new straw BBQ briquette price machine with CE approved



new straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approvednew straw BBQ briquette price machine with CE approved







Packaging & Shipping





Packaging:

Package: In wooden Box

Shipping:

By sea.







Our Services





Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
