Specifications
1.Model:ZBJ-I2.Power:11KW
3.Capacity:100-150kg/h
4.Output products size diameter:40-60mm,70-90mm
Application
1.This machine can make sawdust, wood, rice husk, coconut shell & other wood materials into briquette which can be used in boiler, heating & warming.
2.After carbonization, the briquette will become charcoal, used in BBQ.
Sawdust briquette press machine Working principle
1.It is used a large screw to grind, compress and extrude the biomass into briquettes.
2.The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature.

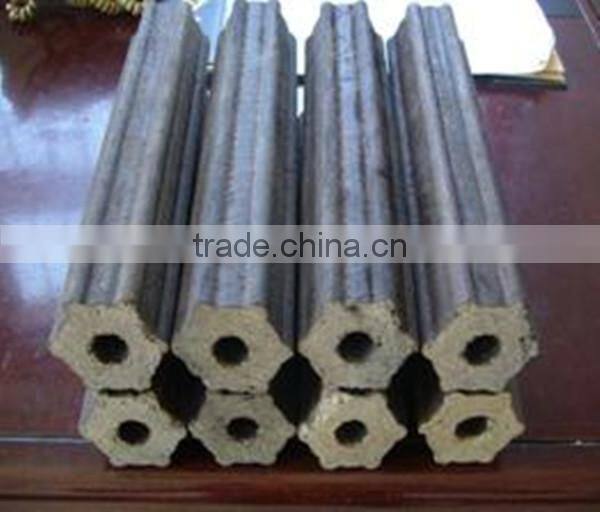

3.In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.
.
Raw Material
1.Material selection: Any type of Agro-Forestry waste can be used. [Wood Chips • Groundnut-shell • Sugarcane Biogases • Caster Shells/Stalk • Saw dust • Coffee Husk • Paddy/Sunflower/Cotton Stalks • Tobacco waste Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Wheat Straw • Palm/Soybeans/Rice husk • Coir Pitch Barks/Straws • Forestry wastes and many other Agro wastes.]
2.Moisture Content: 8 ~12%;
3.Material size: ≤ 5*5mm;
Main data
Model |
ZBJ-I |
ZBJ-II |
ZBJ-III |
Output( kg/h) |
100-150 |
150-200 |
250-300 |
Motor Power (kw) |
11kw |
15kw |
22kw |
Net/Gross Weight(kg) |
540/590 |
650/700 |
1080/1180 |
Overall dimension(m) |
1.8X0.76X1.29 |
1.8X0.76X1.29 |
2.02X0.87X1.5 |
Diameter: of finished products (mm) |
40-60 |
40-60 |
70-90 |

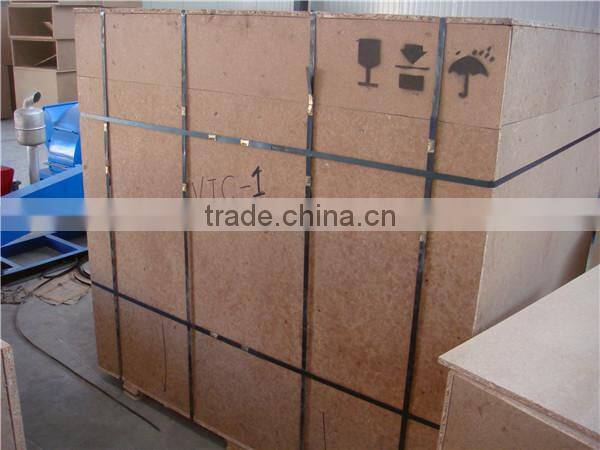

All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Shipping:
Machine usually transport by sea,we also can transport it by air and railway.
Delivery time: Within 15 workdays after receipt of the pre-payment.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
