Specifications
briquette making machine1.Capacity: 150-300kg/h
2. Make briquette with hole in center
3. Briquette diameter: 40-90mm

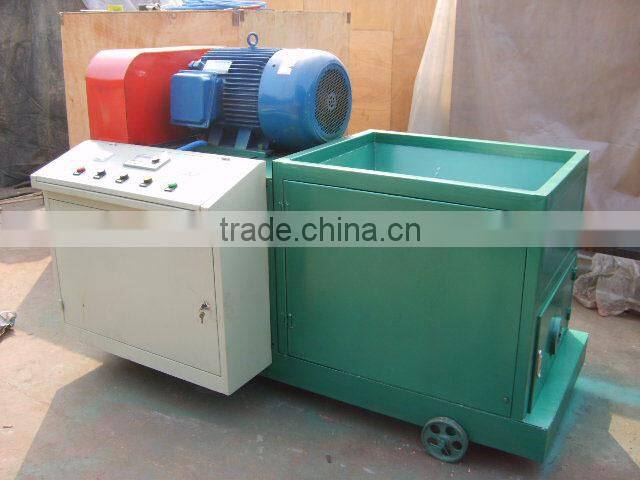

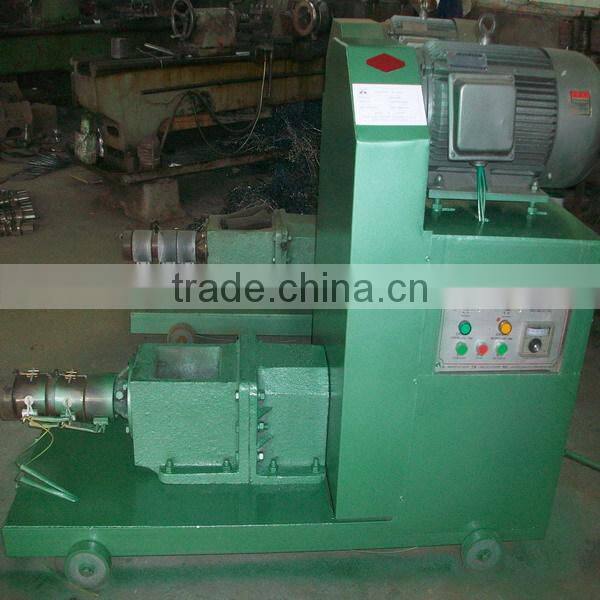

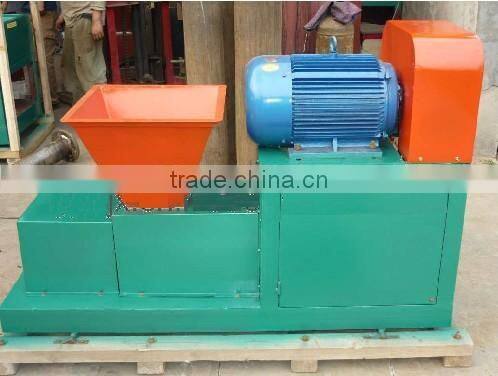

Biomass Briquette Machine/Briqutte Press
Brief introdction:
Our briquette machine can make briquette from sawdust, wood , rice husk, coconut shell , straw and other wood materials. The finished briquette stick can be used as fuel for boiler, stove , BBQ and so on.
Working principle:
uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.
Main data:
Model | ZBJ-III | ZBJ-II | ZBJ-I |
Output (KG/H) | 230-280 | 150-180 50mm 230-280 70mm | 150-180 |
Power (KW) | 18.5 | 15 | 11 |
Electric Heater (KW) | 3X2.2 | 3X1.5 | 3X1.5 |
Output Products Size Diameter(MM) | 70 | 50/70 | 50 |
Machine Dimension Size(MM) | 1670X670X1550 | 1700X720X1330 | 1660X745X1250 |
Weight (KG) | 700 | 650 | 550 |

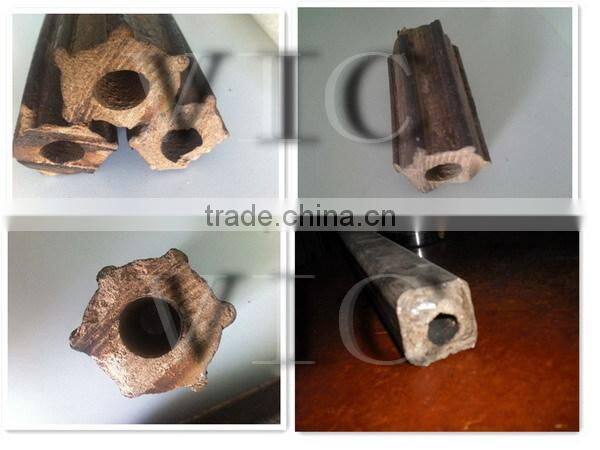

End briquette samples:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
