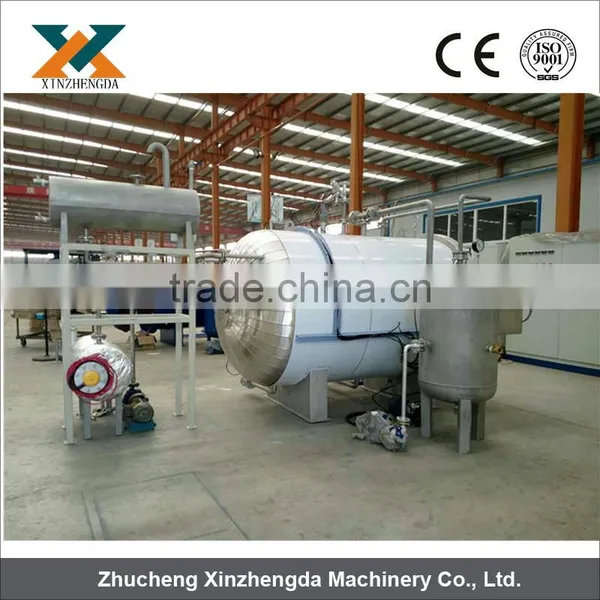

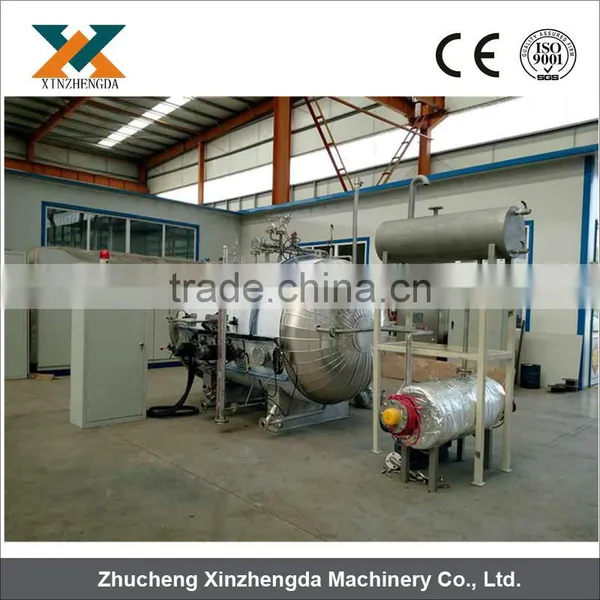

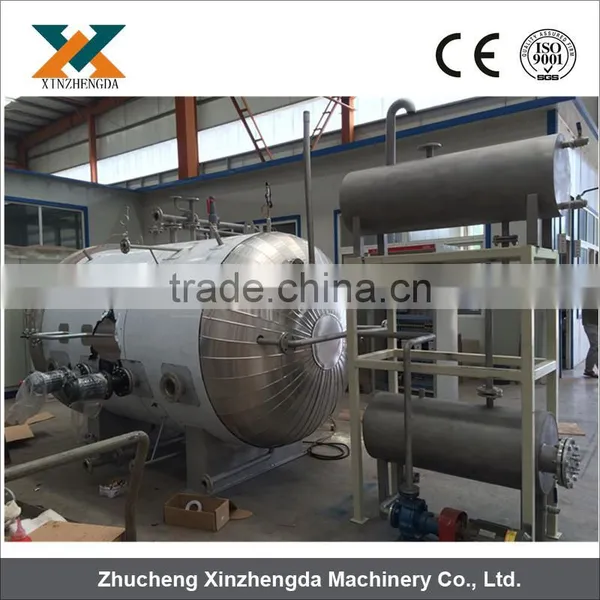

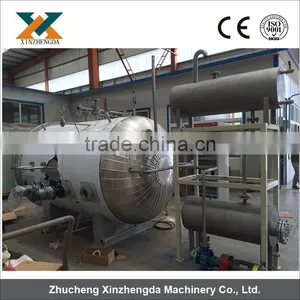

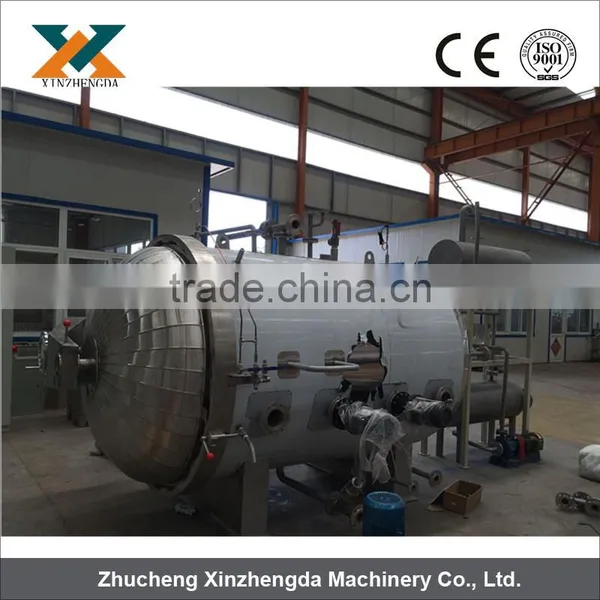

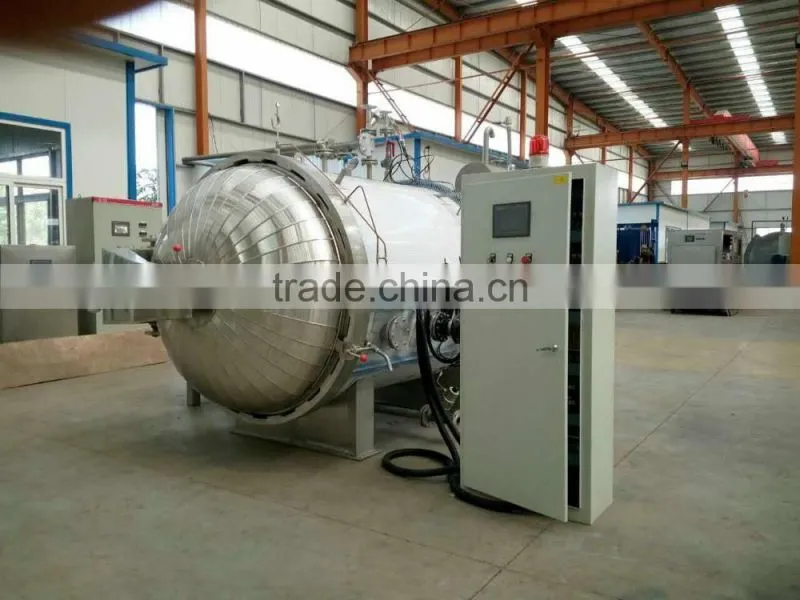

High temperature wood carbonization tank best quality

NO.

Description

Parameters

1

Name

wood carbonization tank

2

Diameter

1500mm(according to customer’s requirement)

3

Length

9000mm(according to customer’s requirement)

4

Design temperature

250℃

5

Working temperature

160-230℃

6

Design pressure

0.35Mpa

7

Working pressure

0.3Mpa

8

Volume

7m³

9

Material

Q345R

10

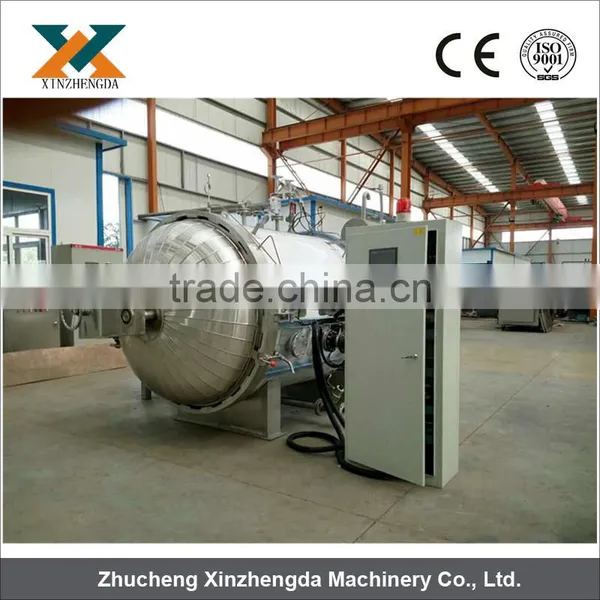

Control system

PLC automatic

11

Door open type

Manual quick open

12

Safety type

Tank door safety interlock,tank body safety interlock

1

Simple operation,high automatically

Our machinery adopts PLC fully automatic control system,temperature,pressure and time all adopts automatic control,to ensure the control accurate reliable.Save energy,labor and time.

2

Heating system

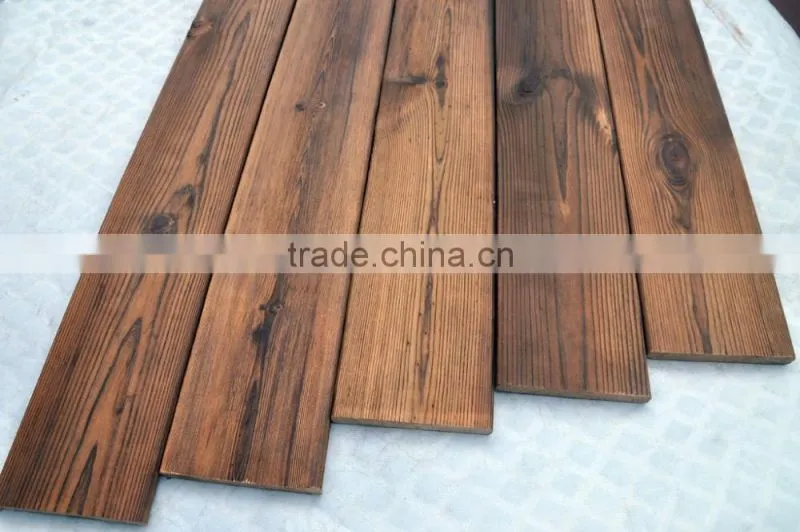

Our machinery equipped with medium circulating device,to ensure the thermo heating uniform.Heat in the tank distribution uniform.The thermowood free from extraneous odour.

3

Temperature

According to the thermo heating processing,the machinery will keep vacuum thermo heating,temperature can be adjustable between 160-230℃

4

Insulation

Good effect of insulation,the insulation adopts aluminium silicate,which thickness is 100mm,and there is steel plant support,heat can not volatilize and waste,the shell cover adopts double layer insulation,save energy,time and high efficiency.This method can save 20% energy than others,can keep the effect 10 years.

5

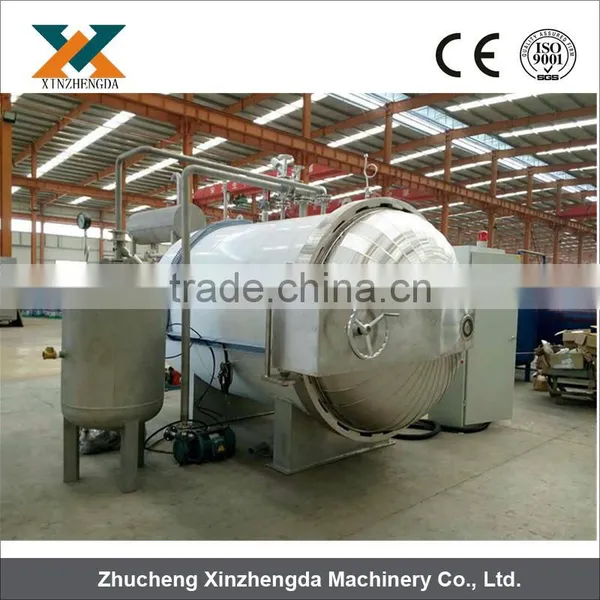

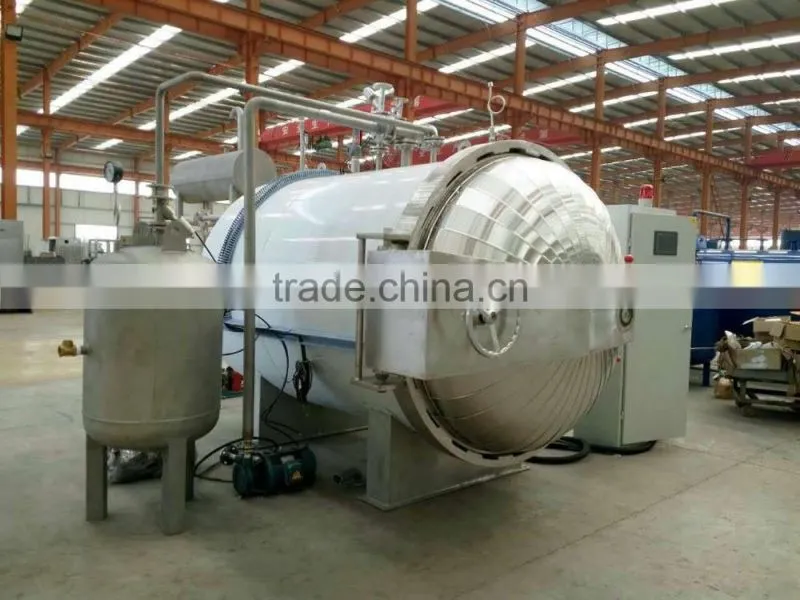

Tank door

manual quick open way,the door could be easily opened and closed by turning the open door handwheel by on person.which is the most advanced door open way and concept.Never deformation,safety,simple operation and high efficiency.The door can be opened and closed normally even though the power off.

6

High safety performance

Pressure automatically safety interlock,manual safety interlock,pressure automatically control,manual vent valve,ultra-high pressure alarm,automatic safety valve.You can not open the door if there is pressure in the tank.which is the most safety pressure vessel till now.

7

Door open Safety interlock

1)The door adopts the flange inflatable silica gel sealing ring.

2)It can automatically inflatable to seal by compressing the air,the tank door will not leak air as long as there is pressure inside the tank.

3)The pressure in the sealing groove will be discharged when open the door, the sealing ring automatically return to the flange sealing groove.

4)Sealing ring won’t easily to wear.

5)Convenient and easy to use,maintenance is simple and convenient.

6)Sealing effect is better than other

ways,sealing ring life service more than 1 years.

7)Advanced technical configuration.The main parts material and accessories adopts imported or advanced configuration domestic(Siemens PLC,Baodeb Valve.

Ensure the machinery reliable.
