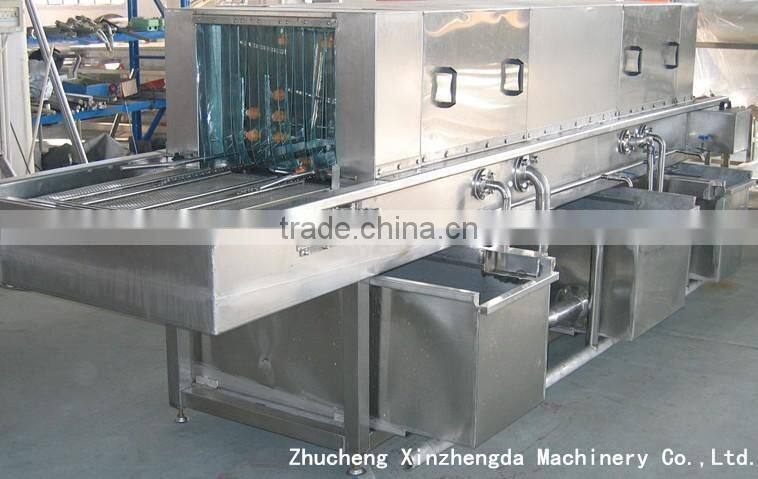

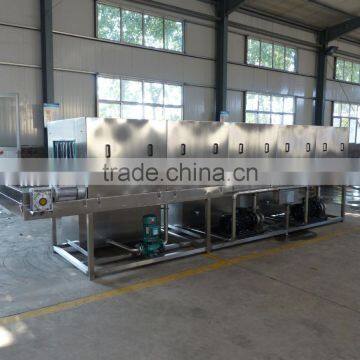

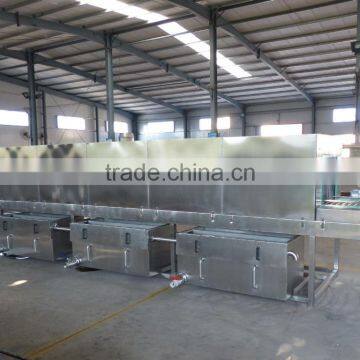

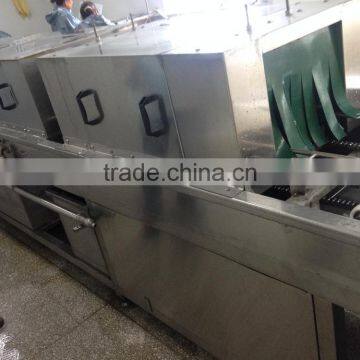

Pallet Basket Washing Machine

Name: Pallet Basket Washing Machine
Brand: Xinzhengda
SKU: 139019529
Availability: InStock

US$ 10,000 - 15,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Xinzhengda

Zhucheng Xinzhengda Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or other port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Xinzhengda

Model Number ZXD-W

Type Washer

Voltage 220 or 380

Power(W) adjustable

Weight 1000kg

Dimension(L*W*H) 3000*1100*1300mm

Certification CE/ISO9001

Warranty one years

After-sales Service Provided Engineers available to service machinery overseas

Features and benefits of Pallet Basket Washing Machine

The SUS cover over the tunnel is removable, easy to maintain and clean.
High quality material. The material is SUS304 stainless steel meeting the state sanitary criterion.

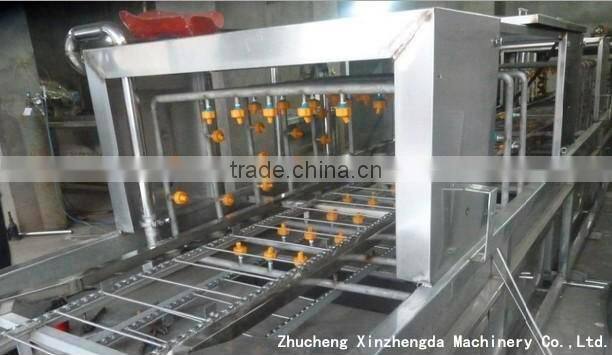

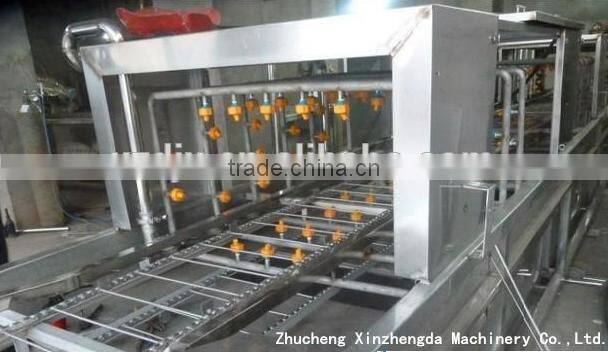

Flexible spray nozzles are equipped all around the tunnel, to ensure throughly cleaning, no-blind-corner.
High efficiency. Energy, water and labor saving, only 600L water per hour and 1-2 workers for 600-800 boxes per hour.
The width of the slideways is adjustable to fit direrent-size boxes/baskets.
All the water containers are equipped with stainless-steel pipe to spray and wash circularly from all directions.

Applications of Pallet Basket Washing Machine

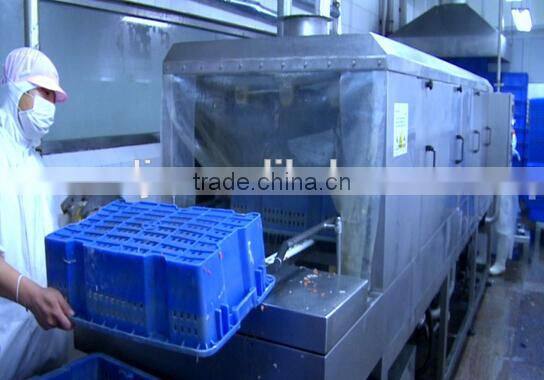

The tunnel-type washing machine is applied to food processing industry,distribution center and dispatch center.

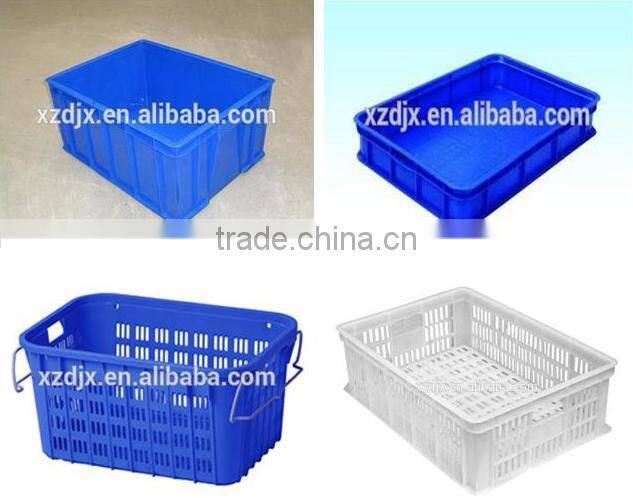

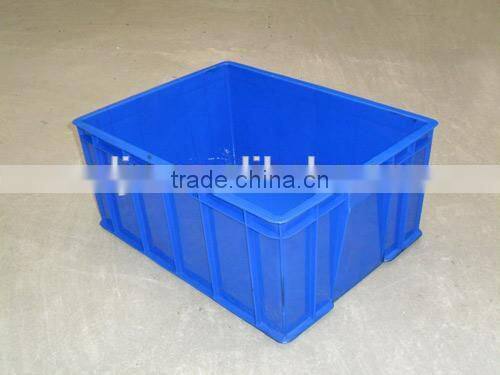

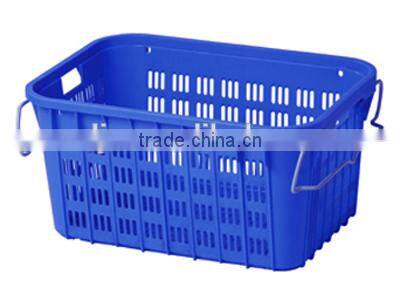

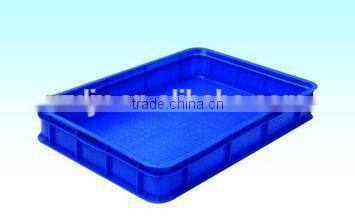

It can wash and disinfect all kinds plastic baskets,circulation boxes,meal trays,refreezing trays as well as various containers for eggs, vegetables and fruits.
The percentage of water saving reaches to 60%.The advanced device is more labor-saving and water-saving than the traditional washing by hand.

Technical Parameter of Pallet Basket Washing Machine

Chain’s transporting speed	0.8—8 m/min	Transporting power	0.4KW
Total power	14.5KW	Outer dimension	4800×1700×1740mm
Passing width	610mm	Entrance and exit’s height	975mm
Passing height	300mm	Main washing pump	Power:7.5KW Water flow:200L/min Pressure:5kg/cm
Pre-washing pump	Power:5.5KW Water flow:400L/min Pressure:3kg/cm	Rinsing pump	Power:0.75KW Water flow:8L/min Pressure:5kg/cm
Cleaning ability	600-800 boxes/hour	Water consumption	600L/hour
