2015 Best selling carbon fiber reactor
1.Application scope
|

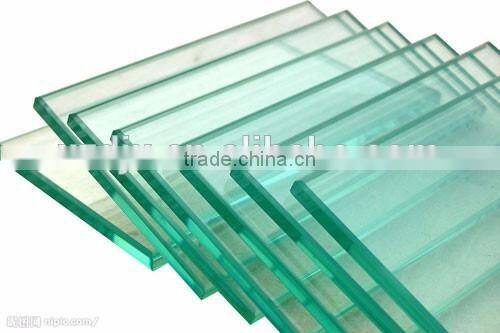

Composite material processing Carbon fiber, boron fiber, laminated glass,aramid fiber, glass fiber, metal composites, reinforced plastics and etc.. |
|
Widely used in aircraft, missiles, satellites and space shuttle, such as the airplane cabin door, fairing, airborne radar cover, the plane bracket, empennage. |
|
|
|
|
3:Structure and configuration of autoclave
| 1 | Autoclave body |
Completely according to GB713-2008 "steel pressure vessel" standard design and manufacturing, pressure weld radiographic testing, 100% for equipment provides a powerful guarantee the quality and safety performance. All values are made of SUS304. The autoclave certified to ASME and CE code.
|
| 2 | The head |
Tooth shape and ellipsoidal head adopts integral forging flange plate, thickness is greater than the kettle body thickness.
|
| 3 | The door |
Adopt cylinder one way to open the door, have a unique design of walking track, can automatically set and lock. The automation of the device was improved.
|
| 4 | Heating element |
the medium wave infrared radiation heating pipe, heating element is uniformly distributed in the kettle on both sides and bottom, to ensure the kettle in the process of heating in the uniformity of temperature before and after, at the same time to shorten the heating time, achieved the purpose of energy saving. |
| 5 | Thermal insulation material |
using high density resin rock wool to internal insulation, the insulation performance is superior to the traditional rock wool; The kettle inside heat loss not easily, especially in heat preservation phase, can be a very good temperature constant, guarantee the machining quality and yield of the product. Other insulation outer part with stainless steel plate and seal, in addition to increasing aesthetic, also played the anti-rust and antifouling functions.
|
| 6 | Heat circulation system |
inside the kettle on both sides of the layout and the kettle body blowing air inlet connection pipe, uniform processing amount blow holes on the pipeline. In the process of pneumatic compression, as a result of air pressure, blowing holes blow out air, drive the kettle inside air flow, the formation of thermal cycle within the kettle.
|
| 7 | Control system |
configuration of PLC system, use the color touch screen, the entire process to achieve automatic operation; In the process of work, the pressure and temperature curve display at any time, and the presence of paper recording function, can complete process curve and process parameters of record; In the process of heat booster, with pressure, such as temperature, pressure and temperature control procedures, to ensure the process curve of temperature and pressure by setting a simultaneous, in the process of constant temperature constant pressure and is equipped with automatic temperature and pressure control.
|
| 8 | The safety interlock system |
on the kettle body is equipped with mechanical safety interlocks, program also set chain security program; Realize the kettle with pressure can't open the door; Super WenChao pressure automatic alarm and overtemperature automatic cooling, overpressure automatic pressure relief, maximum limit to ensure the safety of the operation.
|

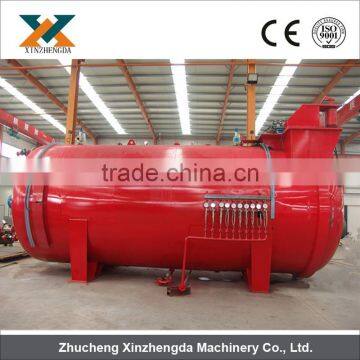

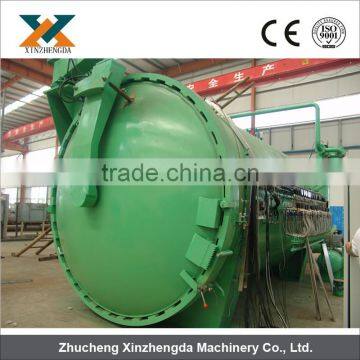

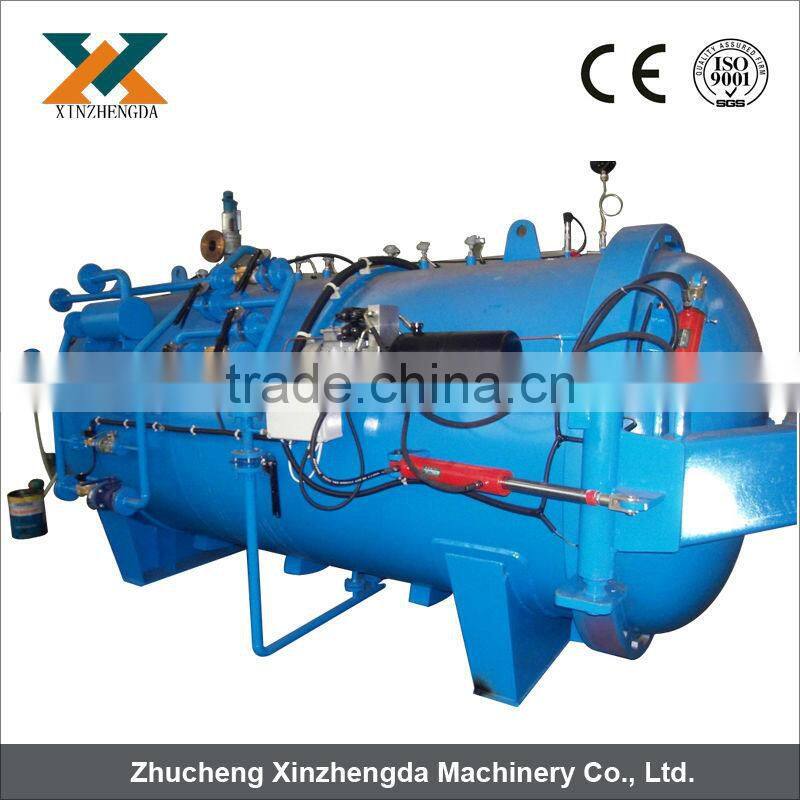

Products show
We test our products one by one before we pack and ship to make sure the quantity and in good
condition.
First-class pre-sale service:
*your inquiry related to our equipment or price will be replied within 24 hours
*well-trained and experienced staff will answer all your inquiries in English of course
*OEM&ODM projects are highly welcomed
*we have strong R&D team here to help
*Your business relationship will be confidentional to any third party
First-class after-sale service:
*1 year warranty period,please don't hesitate to contact us if you have any question with the
equipment.
MOQ:1set
Trade terms:FOB/CIF Qingdao Port
Payment terms:30% T/T depoist,then balance paid against the B/L copy
Delivery time:30 days after the order confirmed
Port:Qingdao Port
