China Agricultural Machinery Cheap 4WD Farm Tractor For Sale

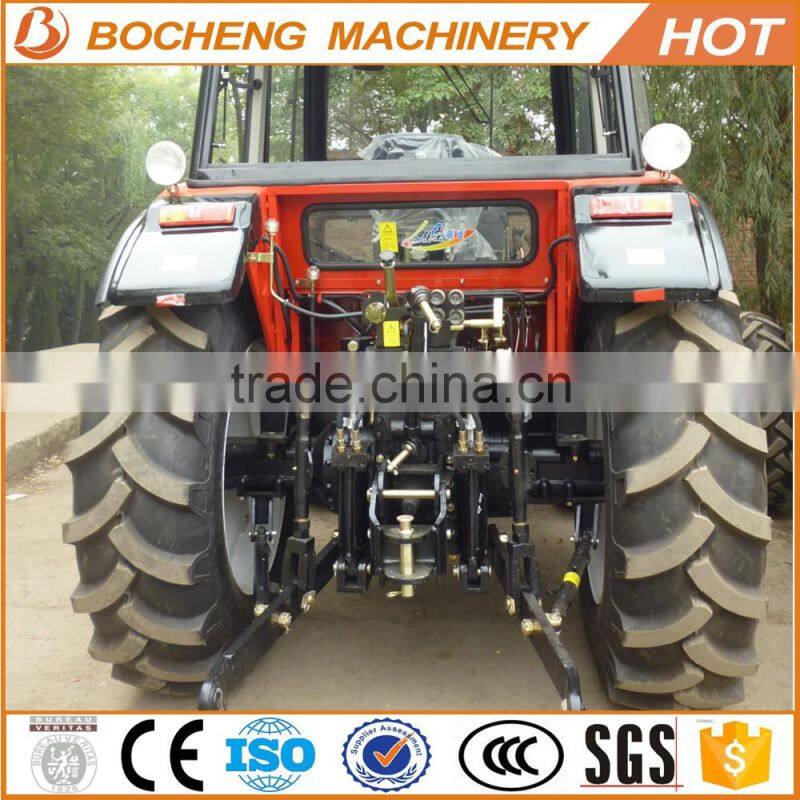

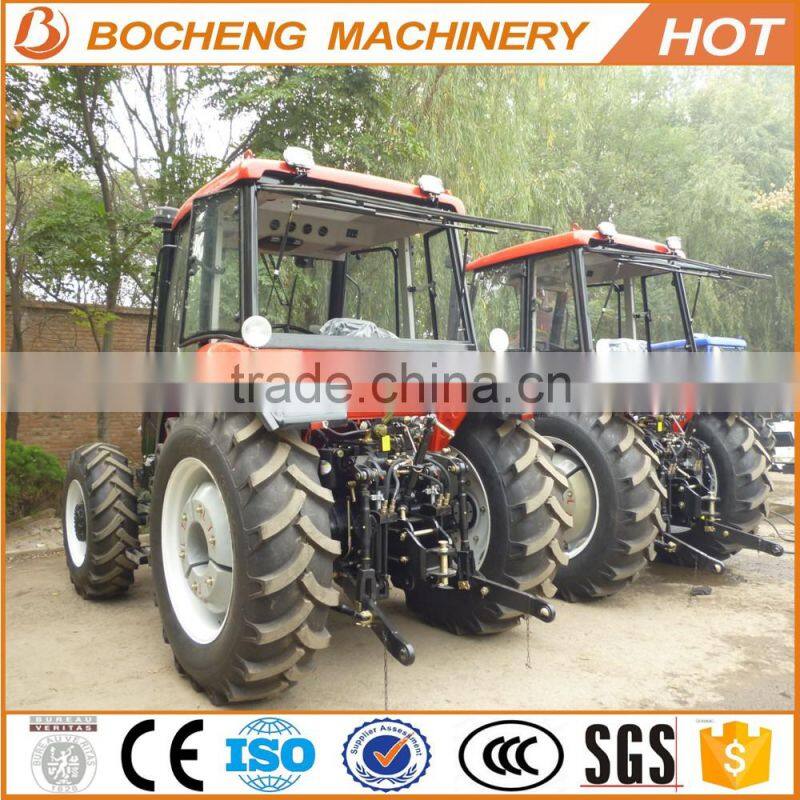

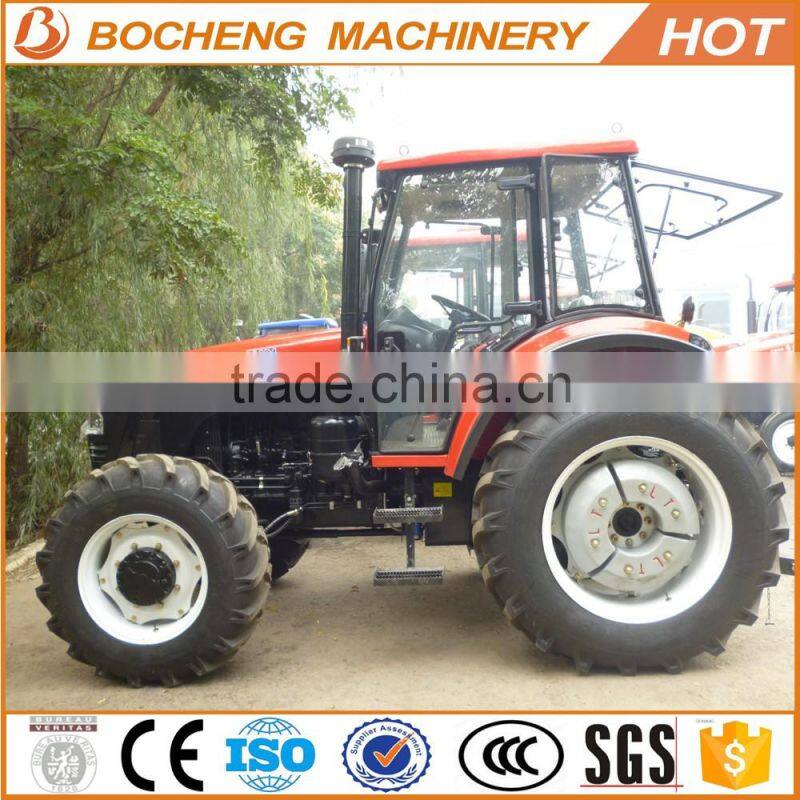

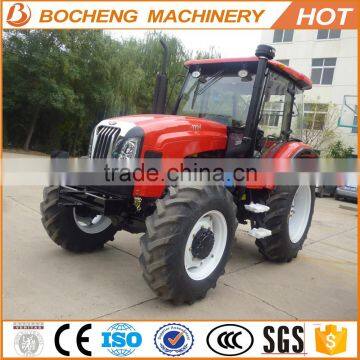

Main photo of big horse power tractor:
Specifications of big horse power tractor:
Tractor Model |
1104 |
1254 |
1304 |
1504 |
|||||
Drive Type |
4×4 |
|
|||||||
Overall Dimension L×W×H(mm) |
5040×2255×2870 |
5050×2370×3000 |
|||||||
Wheel base(mm) |
2688.5 |
||||||||
Front wheel tread(mm) |
1672-2003(1760) |
1822-2153(1910) |
|
||||||
Rear wheel tread(mm) |
1662-2262(1662) |
1662-2262(1662) |
|
||||||
Min. ground clearance(mm) |
470 |
||||||||
Min. steering radius |
7 |
||||||||
Min. operating weight (KG) |
4850 |
4810 |
|||||||
Gearbox gears number |
12F+4R |
|
|||||||
Speed |
Forward(Kw/h) |
2.19-29.63 |
|
||||||
Reverse(Kw/h) |
4.72-13.83 |
|
|||||||
Engine |
Model |
LR6B5-23 |
LR6M5-23 |
LR6M5-23 |
LR6M2Z-23 |
||||
Rated power (Kw) |
88.2 |
92 |
95.6 |
110.3 |
|||||
Type |
6 cylinders, in line, water cooling, 4 strokes, direct injection, natural aspiration |
||||||||
Rated speed (r/min) |
2300 |
||||||||
Tires spec. |
Front tires |
14.9-26 |
|||||||
Rear tires |
18.4-38 |
||||||||
Steering Type |
Full hydraulic front wheels steering |
||||||||
Max. lifting force( KN ) |
≥28 |
||||||||
PTO |
Type |
Rear-mounted, Independent type |
|||||||
Speed (r/min) |
540/1000 |
||||||||
Power(Kw) |
71.25 |
78.85 |
81.7 |
89 |
|||||
Control type of ploughing depth |
Height control & flotation control |
||||||||
Max. traction force (KN) |
27 |
29 |
32 |
||||||
Front / rear Ballast (KG) |
500/300 |
600/400 |
|||||||
Notice: As our products will be improved continuously , all above parameters are subject to modification without notice. | |||||||||
Main features of big horse power 4WD tractor:
1. Adopt Yangdong diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Gearbox using 4 × (2 +1) engaging sleeve, shuttle-type gearshift, there are 8 forward gears, 4 reverse gears, reasonable match between the gears, and have high efficiency;
3. Non independent power take off device, smooth transmission, large capacity, speed (540/720, 540/1000 r/min) for selection to meet the different operation requirements;
4. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
5. Adopt hydrostaticdisc-type brakes, a large braking torque, the braking effect is good;
6. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
7. New streamlined appearance, generous, modern, fashion;

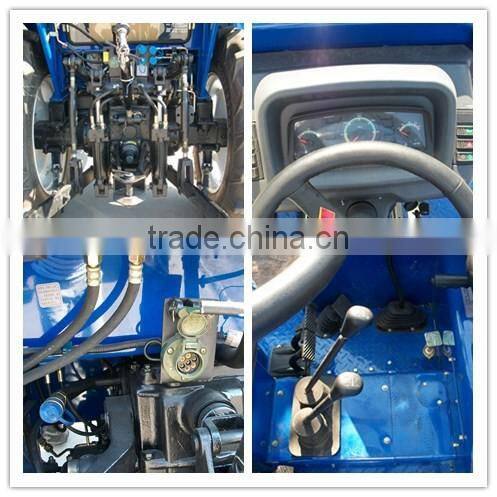

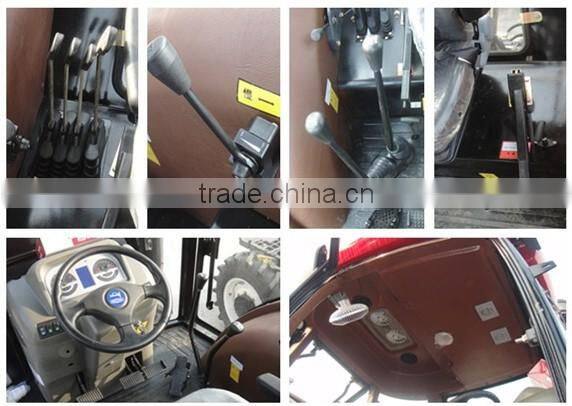

Details of big horse power tractor:

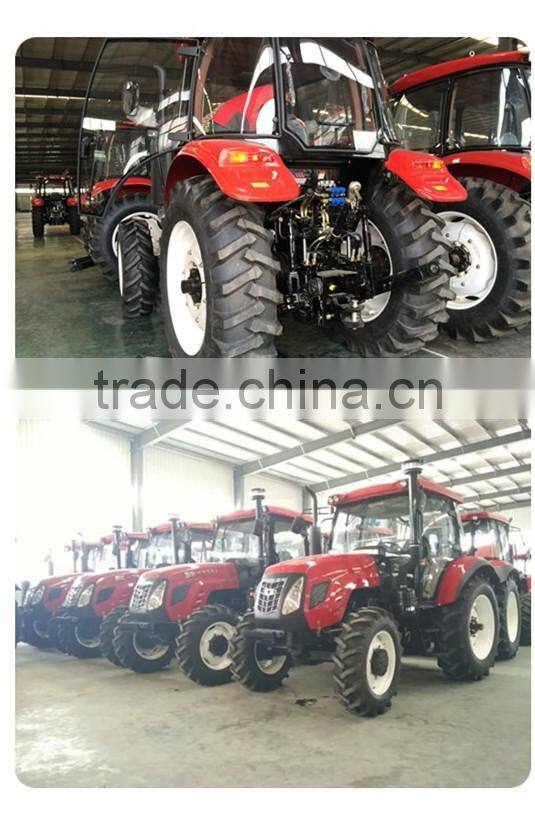

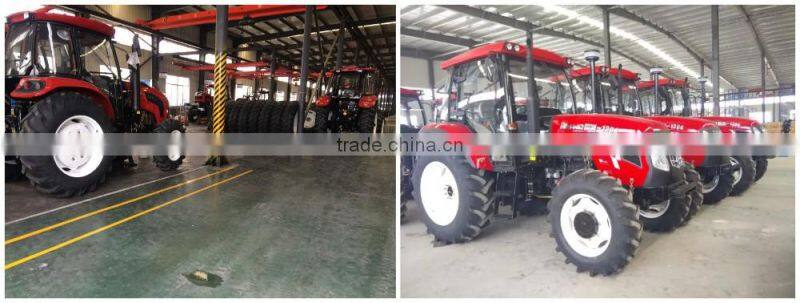

Workshop of big horse power tractor in whole series:
Different size of big horse power tractor:

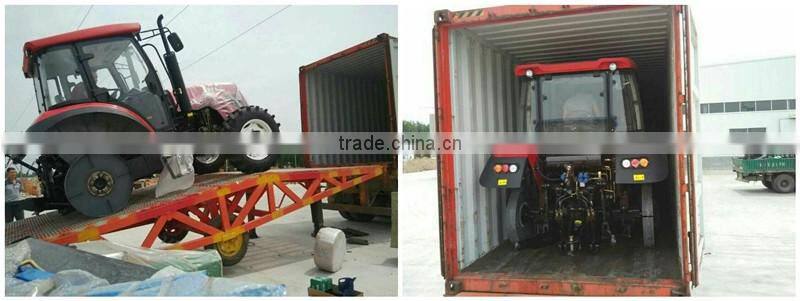

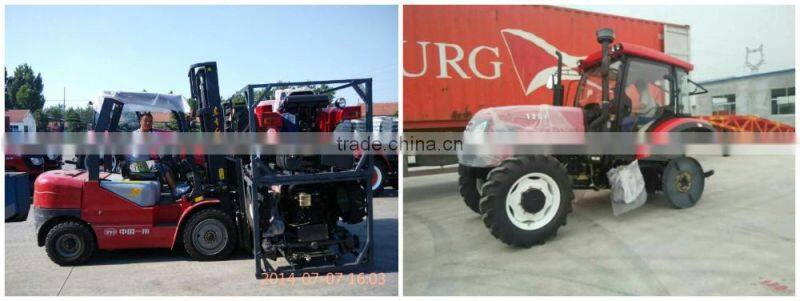

Shipment and delivery of big horse power tractor:
As usual,we will deliver the goods within 20 days receive the deposit,but also depend on the order quantity.International exporting standard, Nude package or according with customer's demand.
Customer Visits of big horse power tractor:
Advantages big horse power 4WD tractor:
More than 10 years experiences in the industry of construction machine and agricutural machine.
* Our tractors full passed ISO9001 International Quality Certification system and China 3C Quality system.
* Due to the compact structure,small overall size,less fuel consumption,and being easy to operation, our tractors are widely accepted by the customers in the world.

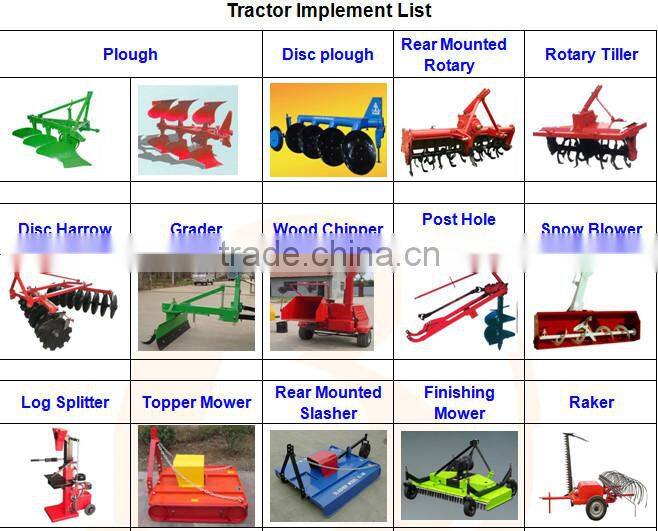

* They can be equiped with varied farm implements,such as front end loader,backhoe,slasher,wood chipper,snow grader,ect..
* Except the reasonable price,high quality goods,excellentservice is the basic of our business.
*The guarrantee of all our goods is 13 Months
Our Goal: Handle right machine to right customer, creat both successful.
Pls feel free to contact us.
