VANGUARD Engine 23HP 1100kg 0.15CBM with prices brand cheap skid steer loader

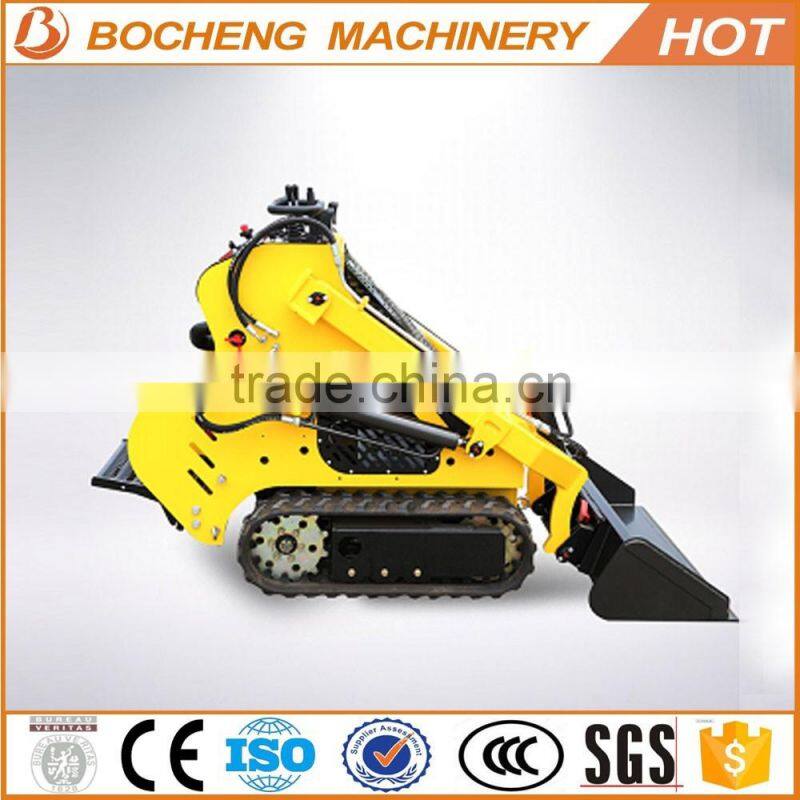

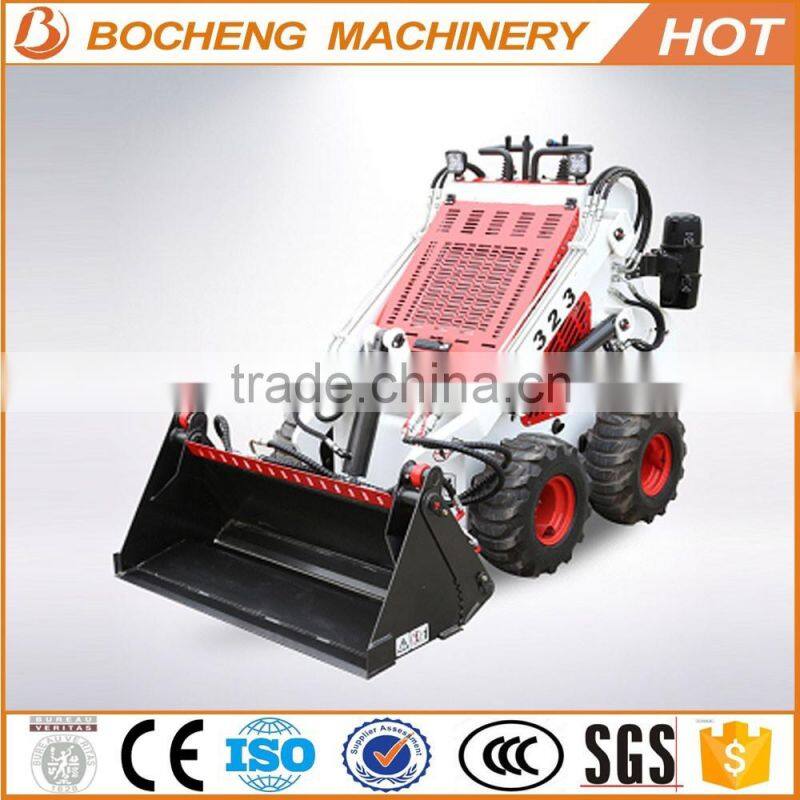

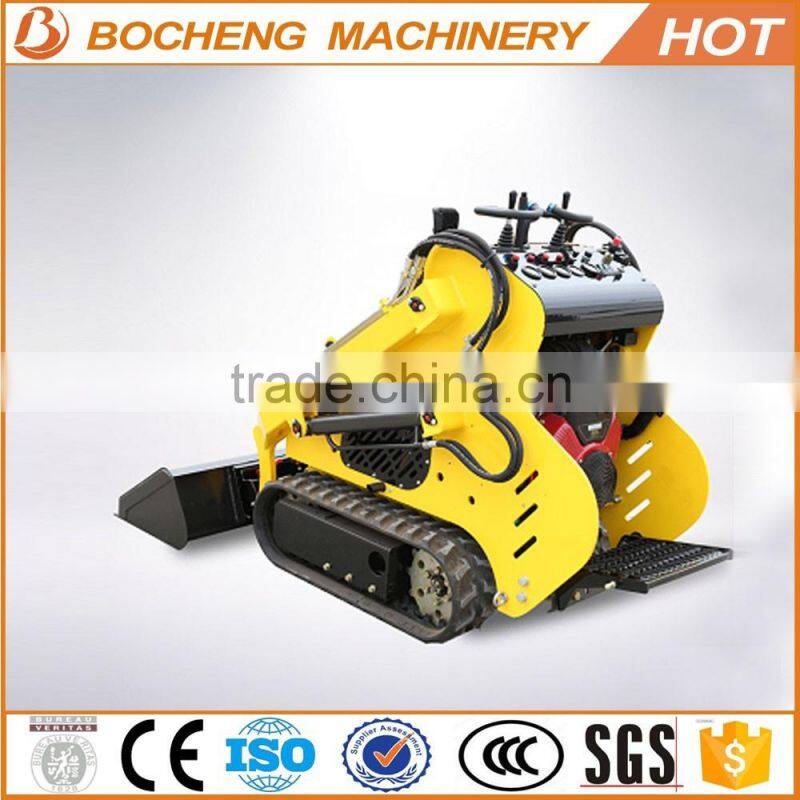

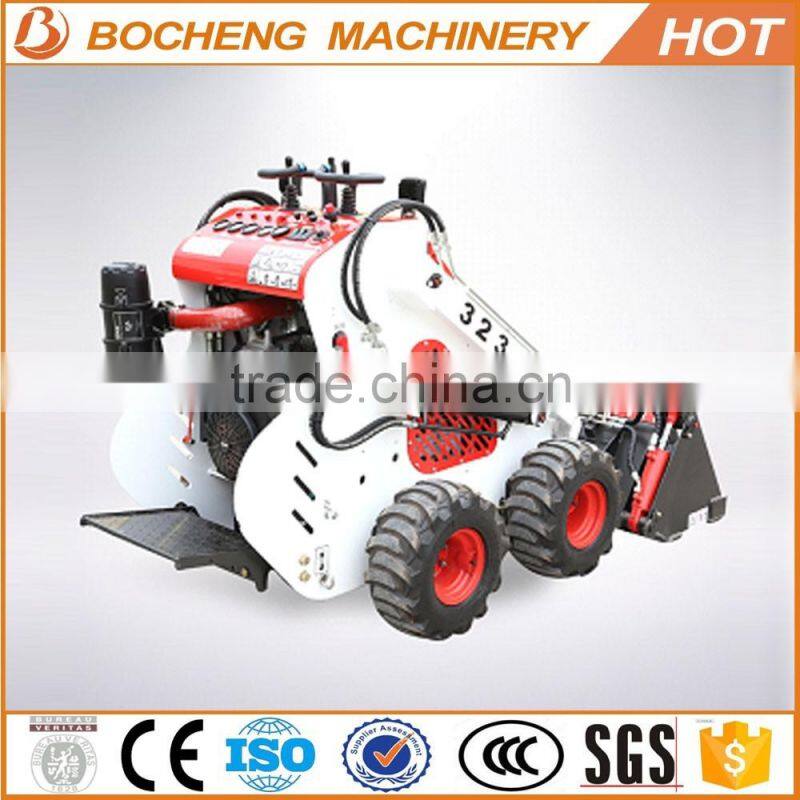

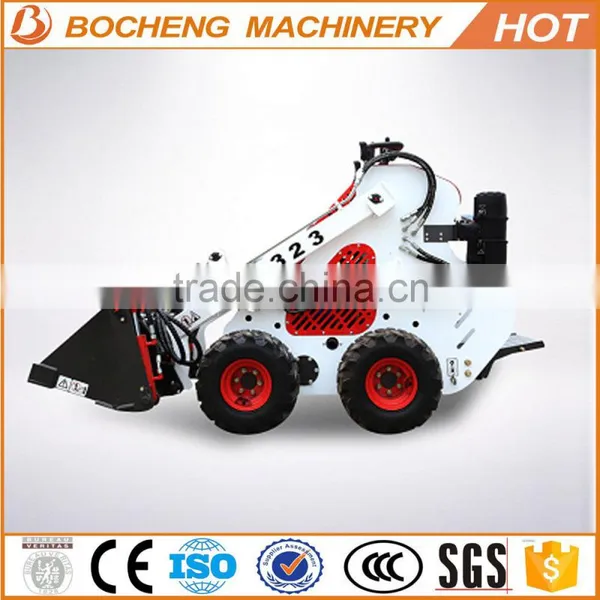

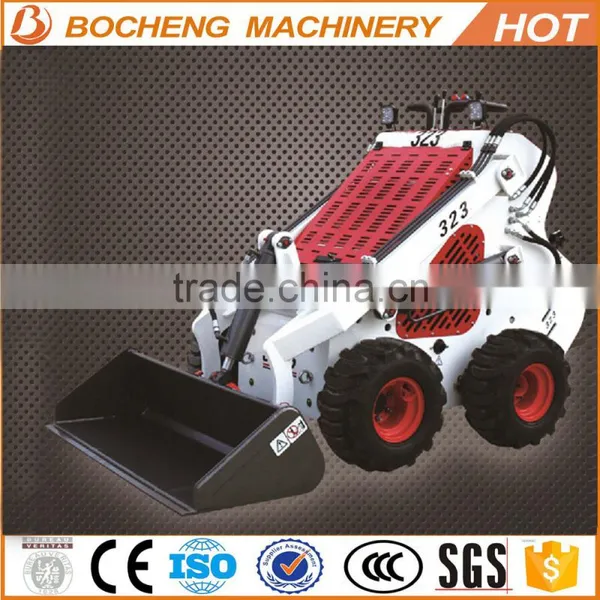

Overall of 23hp mini skid steer loader

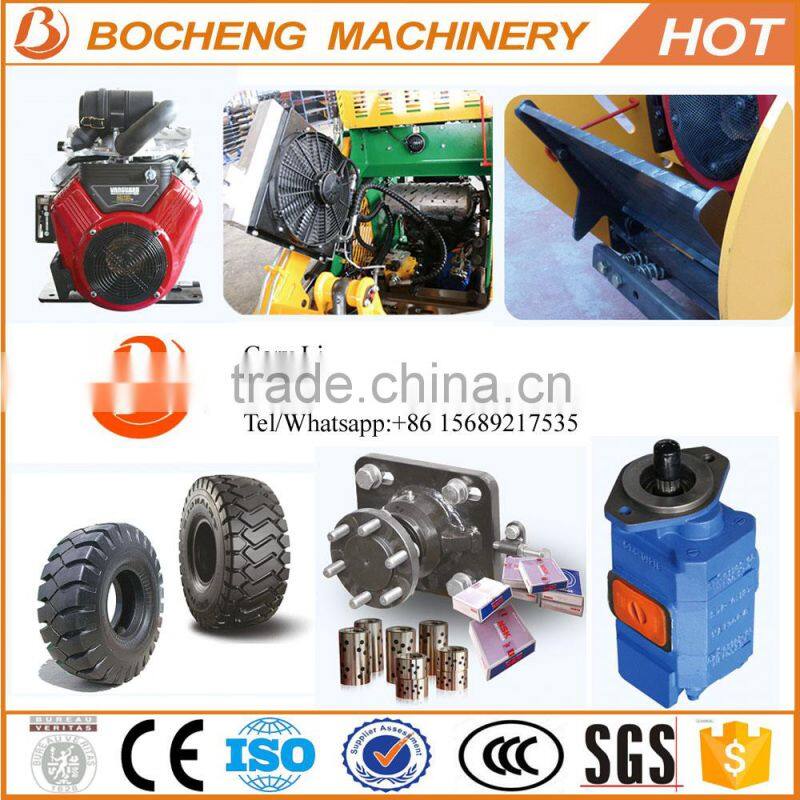

Features:
1.USA(VANGUARD or KOLER)(23HP) brand gasoline engine
2.USA(PERMCO) brand hydraulic pump
3.USA(WHITE) brand hydraulic motor
4.JAPAN(NSK) brand bearing
5.ITALY brand multi-way valve
6.USA(DONALDSON)brand air filter

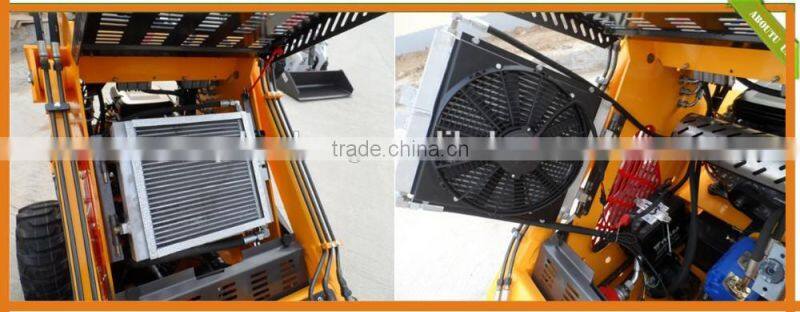

7.Radiator :Rotary type, all aluminum,parallel type
8.Bobcat type quick coupling joint and quick change rack

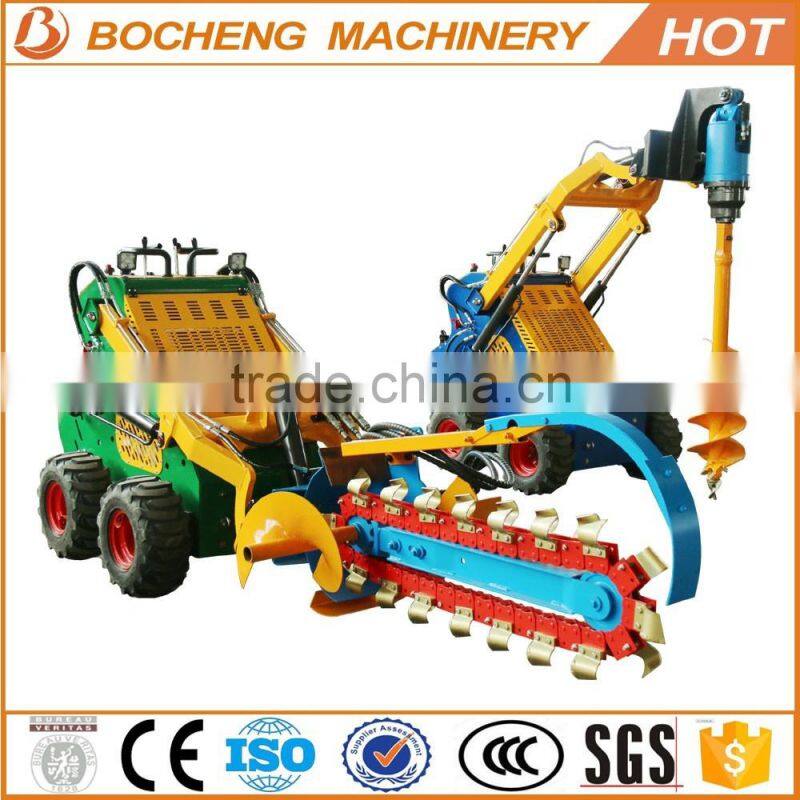

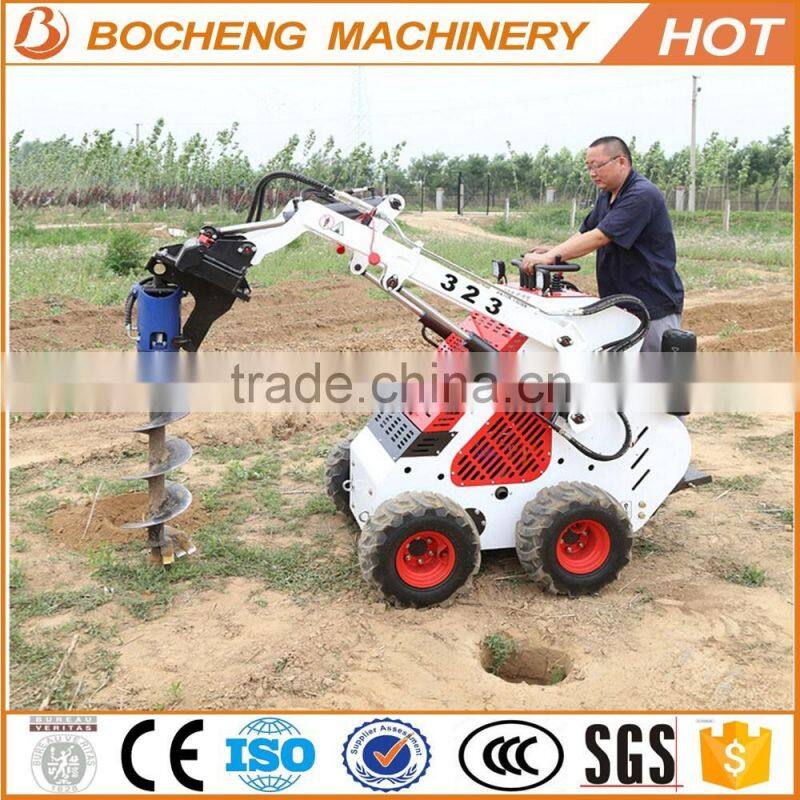

9.Optional attachments:Log Grapple,Rock Bucket,Pallet Fork,Hydraulic Breaker,Sweeper, Single Arm Excavator,4 in 1 bucket,Auger,Trencher etc.Parameters of 23hp mini skid steer loader
| ITEM | UNIT | BC323 | BC323T | |
| MAIN SPECIFICATIONS | ||||
| Length (with bucket)*Width*Height | mm | 2170*1160*1370 | 2170*840*1370 | |
| Length (Without bucket)*Width*Height | mm | 1740*1150*1370 | 1740*830*1370 | |
| Travel speed | Km/h | 6 | ||
| Bucket capacity | m³ | 0.15 | ||
| Bucket width | mm | 1160 | 840 | |
| Max. Operating height | mm | 2452 | ||
| Rated load | kg | 200 | ||
| Wheel base | mm | 657 | 720 | |
| Tread width(Standard tire) | mm | 960 | 630 | |
| Ground clearance | mm | 140 | 92 | |
| Dumping reach | mm | 545 | 612 | |
| Height to bucket pin | mm | 1914 | ||
| Rollback angle of bucket at max.height | ° | 114 | ||
| Rollback angle of bucket on ground | ° | 26 | ||
| Dumping angle at max.height | ° | 33.7 | ||
| Angle of departure | ° | 23 | 25 | |
| Dump height | mm | 1515 | ||
| OPERATION SPECIFICATIONS | ||||
| Weight of machine(Including bucket) | kg | 1100 | 1190 | |
| Operating pressure of hydraulic system | Bar | 180(18Mpa) | ||
| Total working time | Lift | s | 5.6 | |
| Curl | 3 | |||
| Lower | 3.6 | |||
| Front turning radius(Including bucket) | mm | 1282 | 1230 | |
| Front turning radius(No Including bucket) | mm | 801 | 813 | |
| Rear turning radius | mm | 1026 | 1014 | |
| Bucket lifting force | Kg | 660 | ||
| ENGINE | ||||
| Fuel | Gasoline | |||
| Max. Noise | dB | 95 | ||
| Rated power | HP | 23 | ||
| Rated speed | r/min | 3600 | ||

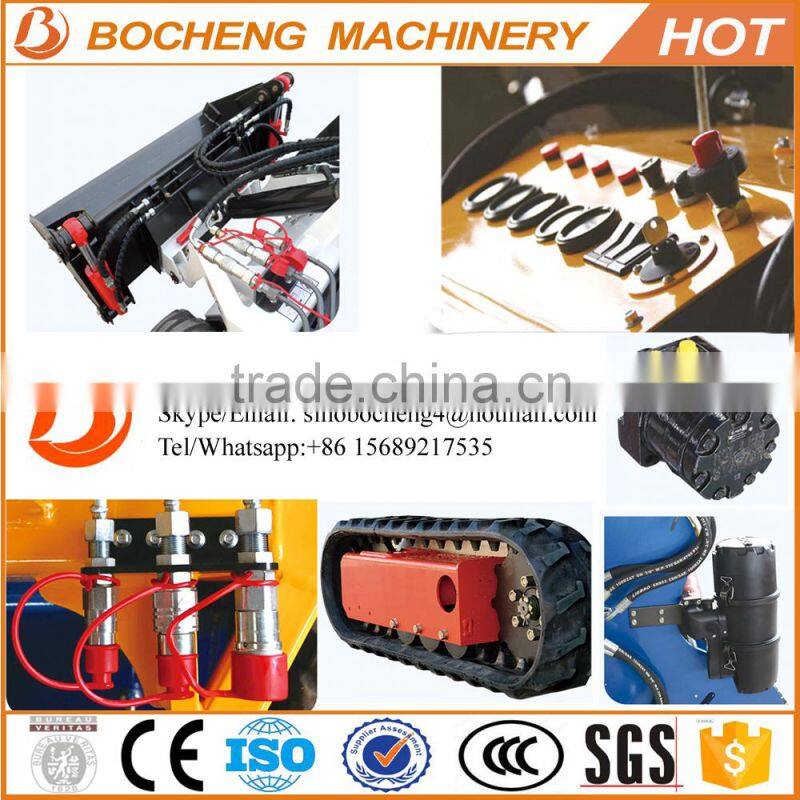

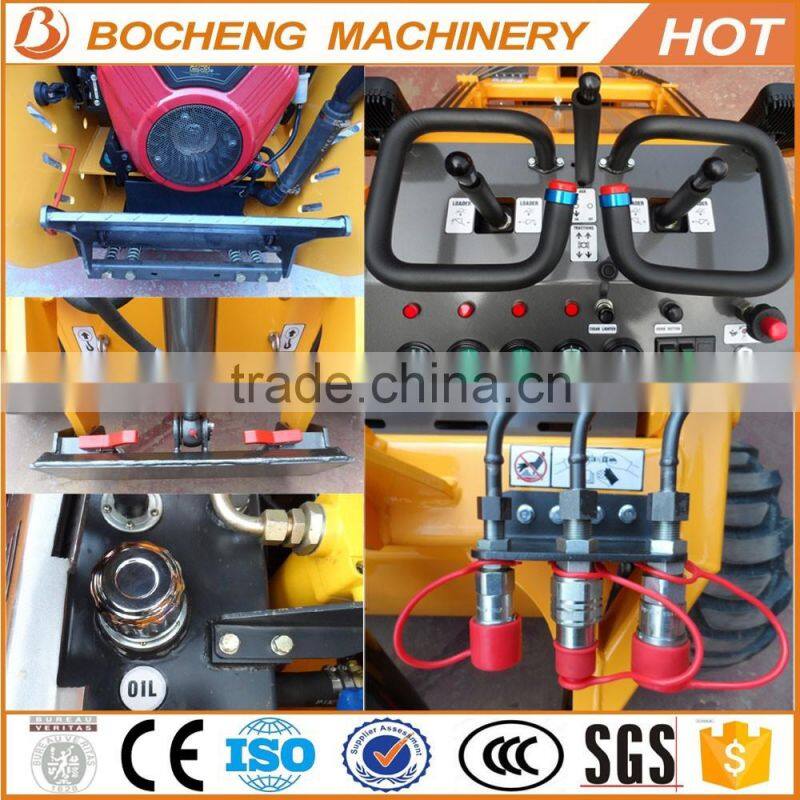

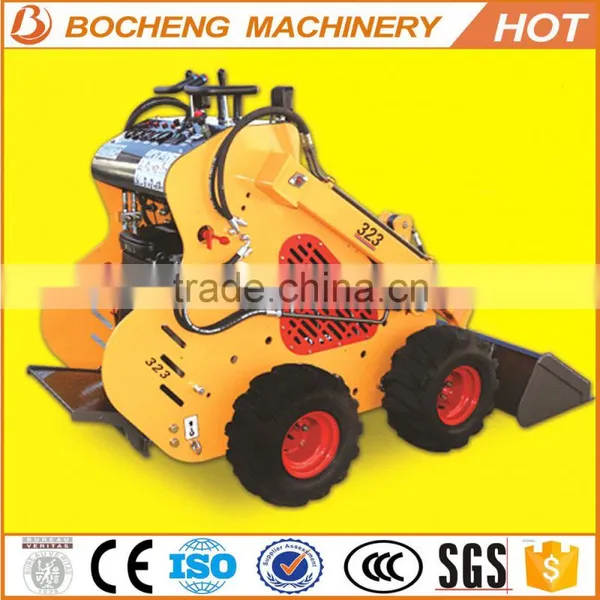

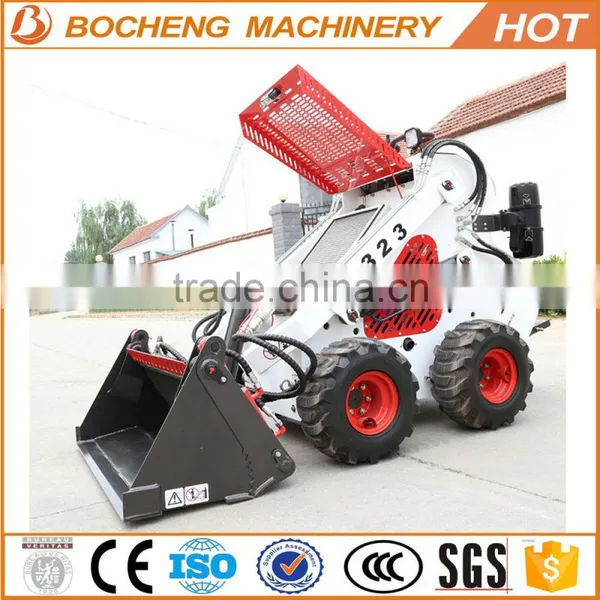

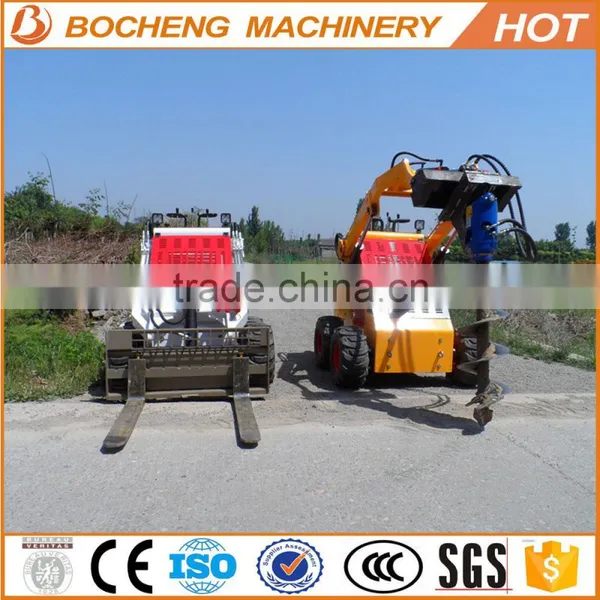

Detailed images of 23hp mini skid steer loader

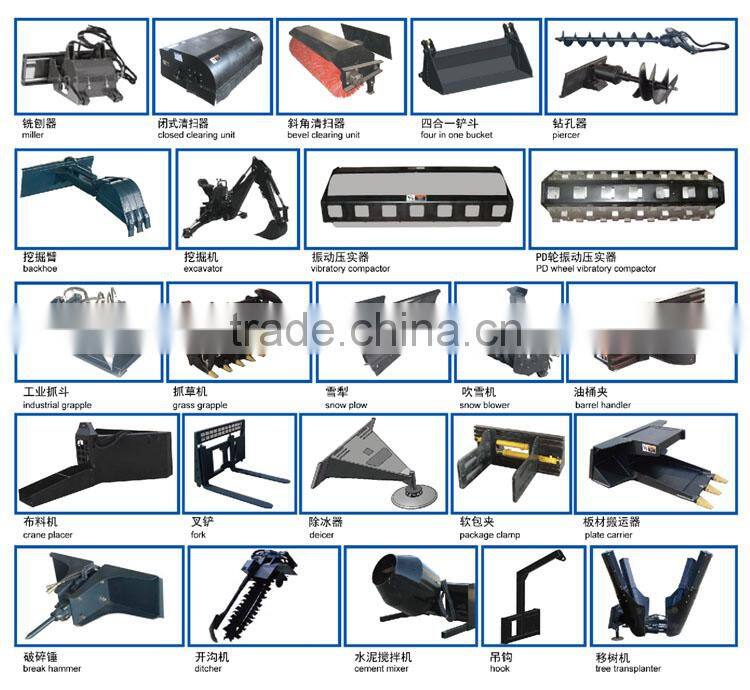

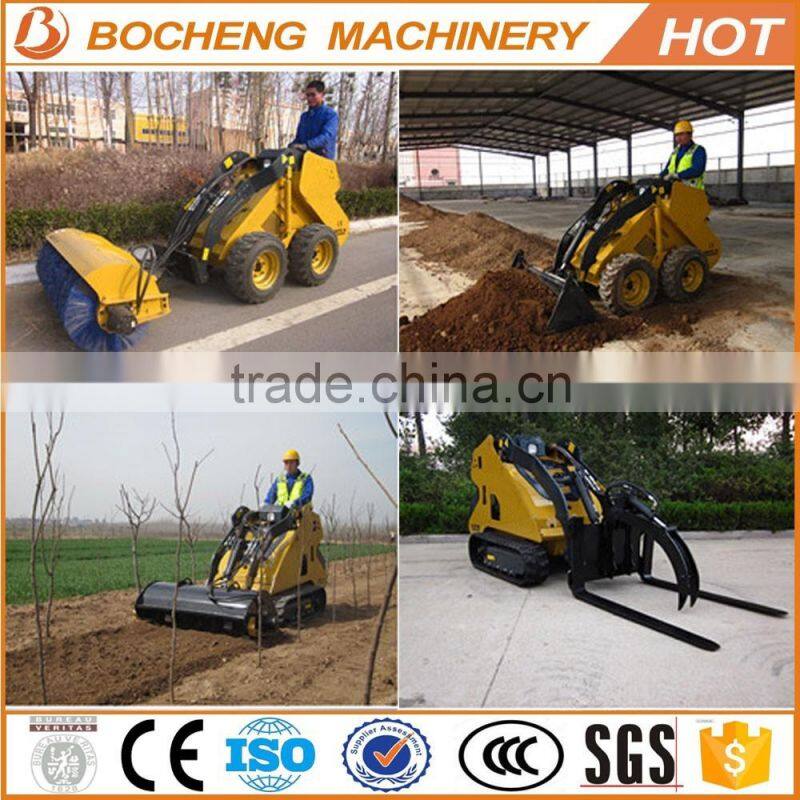

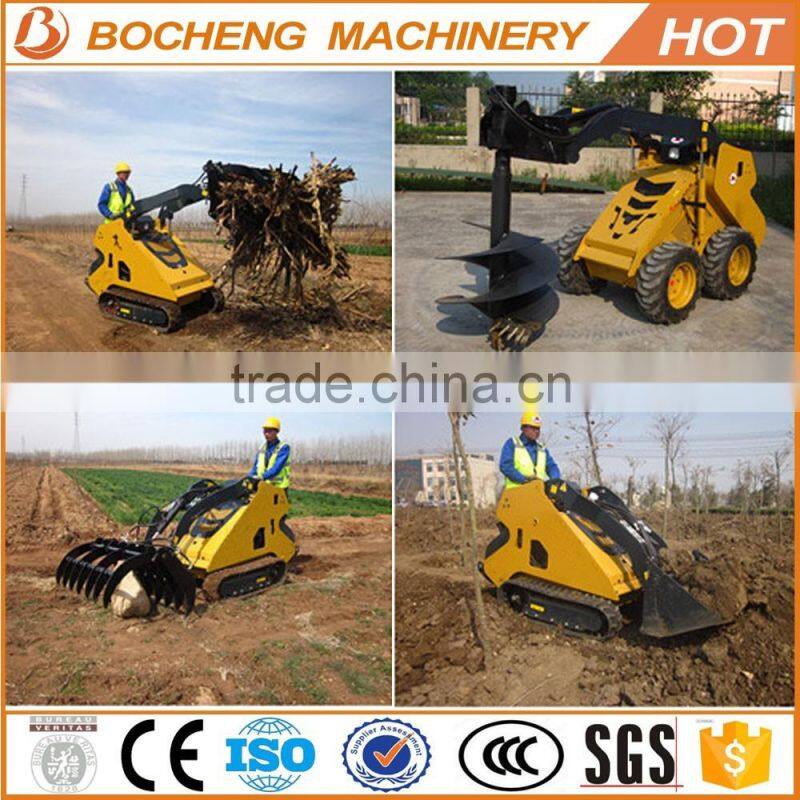

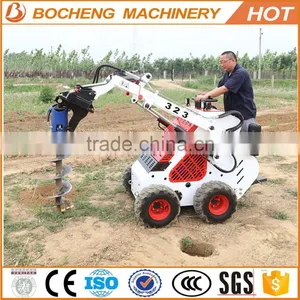

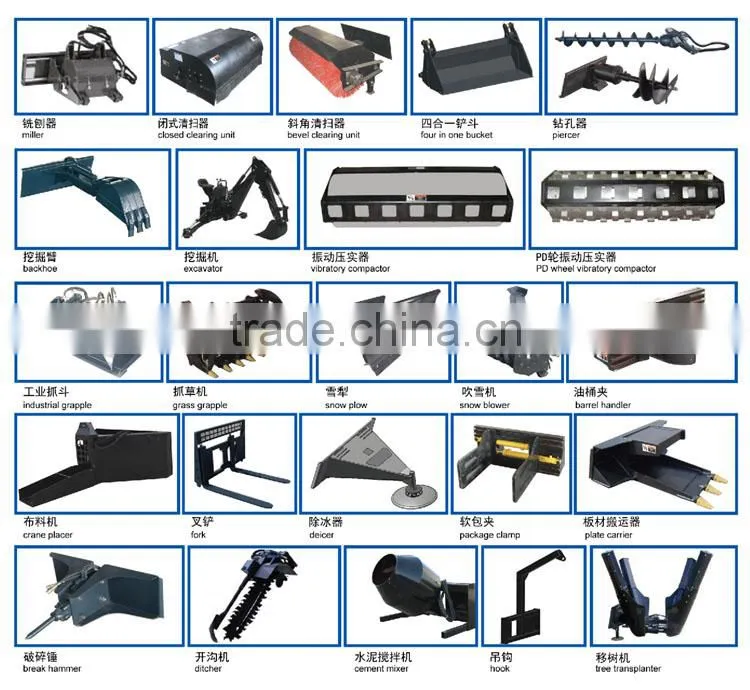

ATTACHMENT OPTIONAL for 23hp mini skid steer loader
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conve-niently.
30% T/T payment in advance, 70% to be paid before delivery.
A 100% irrevocable L/C without "oft clauses" can be accepted.
For 23hp mini skid steer loader, we can offer one year warranty, original spare parts, oversea service center available, technical support.
As a company engaging in marketing large-scale equipments and team-training, Qingzhou Bocheng Machinery Co.,Ltd, has been occupied on foreign trade industy for almost twenty years. There are more than 30 great employees in the sales team and an office in Algeria. The product has been Exported to more than 50 countries and regions, mainly to Middle East, Africa, Southeast Asia, Europe and so on. The company has accumulated a wealth of experience in foreign trading and training, and is committed to the expansion of foreign markets and the extension of the whole industrial chain.
