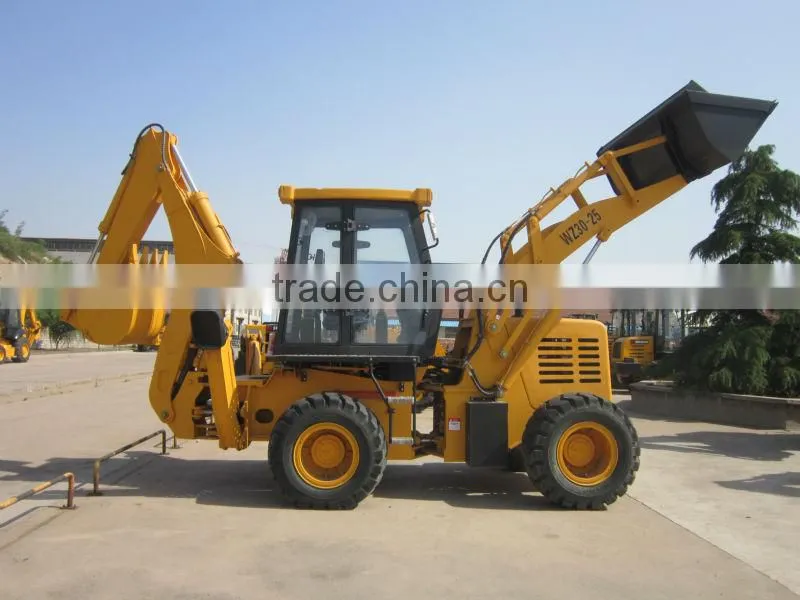

Help CenterBocheng Backhoe Loader WZ30-25
Related Products
-
Case Backhoe Loader WZ30-25US$ 31,200 - 37,200MOQ: 1 Set -
WZ30-25 Mini Backhoe Loader With YTO EngineUS$ 60,000 - 70,000MOQ: 1 Set
-
Bocheng Brand Backhoe Loader WZ30-25US$ 30,000 - 37,000MOQ: 1 Set
-
Backhoe Loader WZ30-25 Powerfull EngineUS$ 34,000 - 37,500MOQ: 1 Set
-
WZ30-25 YTO Engine AC Pilot Control Backhoe LoaderUS$ 38,000 - 40,000MOQ: 1 Set
WZ30-25 backhoe loader, adopting European technology, is featured by strong power, pilot control, comfortable operation, excellent performance and high cost performance.
Engine |
Tyre |
||
Model |
YTR4108G60-1 |
Model |
16/70-20 |
Type |
In Line Direct injection Four-Stroke and Injection Combustion Chamber |
Pressure of Front wheel |
0.22 Mpa |
-*Cylinder-Inside Diameter*Stroke |
4-108×120 |
Pressure of Back Wheel |
0.22 Mpa |
Rated Power |
55KN |
Brake System |
|
Rated Speed |
2400r/min |
Service Brake |
Air Over Oil Caliper Brake |
Min. Fuel Consumption |
≤216g/km.h |
External Type |
|
Max.Torque |
≥261.7N.M/1800r/min |
Self-regulation |
|
Displacement |
4.4L |
Self-balance |
|
Overall Operating Weight |
7640KG |
Final Reducer |
Single Stage Final Reducer |
Transport Dimension |
Rated Loader of Axle |
7.5t |
|
Size mm L*W*H |
5910*2268*3760 |
Transmission System |
|
Wheel base |
2250mm |
Torque Converter |
|
Min. Ground Clearance |
300mm |
Model |
YJ280 |
Bucket Capacity |
1.4m3 |
Type |
,Single-stage Three Elements |
Breakout Force |
38KN |
Max. Efficiency |
84.4% |
Loading Lifting Capacity |
2500KG |
Inlet Pressure |
0.4Mpa—0.55 Mpa |
Bucket Dumping Height |
2742mm |
Outlet Pressure |
1.2Mpa—1.5 Mpa |
Bucket Dumping Distance |
1062mm |
Cooling Method |
Oil-cooling Pressure Circulation |
