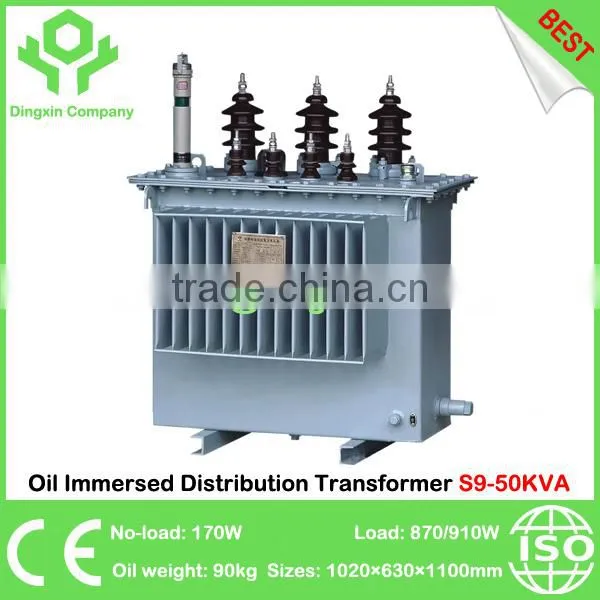

China Best S9-50KVA Oil Immersed Distribution Transformer Yyn0 Dyn11 Dyn5 50Hz or 60Hz

China Best S9-50KVA Oil Immersed Distribution Transformer Yyn0 Dyn11 Dyn5 50Hz or 60Hz thumbnail-1
China Best S9-50KVA Oil Immersed Distribution Transformer Yyn0 Dyn11 Dyn5 50Hz or 60Hz photo-1
US$ 800 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
DINGXIN
Model Number:
S9-50KVA
Contact Supplier Request Quote Chat Now
Wuhan Dingxin Mechanical & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name DINGXIN
Model Number S9-50KVA
Usage Current
Phase Three
Coil Structure Toroidal
Coil Number Autotransformer

China Best Oil Immersed Distribution Transformer

Accord to Standards:
GB1094.1-1996 GB1094.2-1996 GB1094.3-2003
GB1094.5-2003 GB/T6451-2008 GB/T10237-1988
GB/T10088-2004 GB311.1-1997 GB/T7595-2000
GB/T3837-1998



Service Environment:
(1) Altitude:≤1000m
(2) Ambient temperature:the highest +40℃, the lowest temperature-10℃, the highest monthly mean temperature+30℃;the highest yearly mean temperature+20℃.
(3) lnstalltion environment:inclination of installation place<3°,no obvious dirt and corrosive or flammable gas.



Transformer ordering:

(1) Rated capacity

(2) High & low voltage rated voltage range: 6,10,11,12,15 optional customizable
(3) Connection: Yyn0, Dyn11, Dyn5, can be customized)

(4) Impedance voltage: 4-6%, customizable
(5) Range: ± 5%, ± 2 * 2.5%, can be customized
(6) Frequency: 50Hz or 60Hz
(7) Other special requirements



Technical datas:

Rated capacity(kvA) Voltage combination Connection symbol No-load(w) Load(w) Short circuit impedance(%) No-load current(%) Weight(kg) Dimensions Gauge(mm)
High(kv) Tap(%) Low(kv) Oil Total L*W*H(mm)
30

6

6.3

10

10.5

11

 ±5% or ±2×2.5 0.4 YynO or Dyn11 130 600/630 4.0 2.3 60 280 940×555×1000 400×400
 50 170  870/910  2.0  90  385  1020×630×1100  400×400
 63 200  1040/1090  1.9  100  420  1040×660×1130  400×400
 80  250  1250/1310  1.9  115  495  1070×660×1130  400×450
 100  290  1500/1580  1.8  130  565  1080×730×1170  400×450
 125  340  1800/1890  1.7  150  640  1100×780×1190  450×550
 160  400  2200/2310  1.6  165  740  1190×840×1260  550×550
 200  480  2600/2730  1.5  170  910  1490×770×1270  550×550
 250  560  3050/3200  1.4  190  990  1570×820×1330  550×550
 315  670  3650/3830  1.4  230  1220  1720×960×1360  550×550
 400  800  4300/4520  1.3  250  1430  1720×960×1400  660×660
 500  960  5150/5410  1.2  290  1670  1800×1010×1460  660×660
 630  1200  6200  1.1  350  1940  2000×1140×1650  660×660
 800  1400  7500  1.0  385  2190  2200×1200×1700 820×820
 1000  1700  10300  1.0  471  1780  2230×1260×1800  820×820
 1250  1950  12000  0.9  520  3340  2310×1300×1900  820×820
 1600  2400  14500  0.8  660  3790  2390×1360×1950  820×820
2000  2520  17820 0.8  833 4400  2120×1860×2250   820×820
 2500  2970  20700  0.8  900  4940  2150×2000×2300 820×820
